Vsi sand making machine

Vertical Shaft Impact Crusher

The VSI Vertical Shaft Impact Crusher is a high-efficiency, energy-saving sand-making machine developed with advanced industry technology. It is widely used for manufactured sand and aggregate production in construction and mining applications. Compared with conventional sand makers, it delivers higher output and handles a wider range of materials, making it ideal for aggregate shaping and fine crushing.

Applicable Materials:
Limestone, bluestone, river pebbles, granite
Capacity:
250–1000 T/H
Max Feed Size:
≤ 60 mm
Vertical Shaft Impact Crusher

Technical Specifications

Core technical specifications and performance indicators
Model Max Feed Size (mm) Impeller Diameter (mm) Speed (r/min) Dual Motor Power (kW) Capacity (t/h) Overall Dimensions (L×W×H) (mm)
DLVSI1140 <50 1100 1100–1400 200×2 250–340 5600×2990×4190
DLVSI1145 <55 1100 1000–1300 220×2 280–400 5600×2990×4190
DLVSI1150 <55 1100 1000–1300 250×2 300–440 5600×2990×4190
DLVSI1263 <60 1200 900–1300 315×2 400–580 5600×2990×4190
DLVSI1370RG <60 1300 900–1100 355×2 700 6000×3650×4350
DLVSI1380RG <60 1300 900–1100 400×2 800 6000×3650×4350
DLVSI20100R <200 2000 600 400×2 or 500×2 700–1000 /

Lubrication Hydraulic Station Technical Parameters

Item Specification
Lubrication Hydraulic Station Flow Rate (L/min) 8
Dual Oil Pump Motor Power (kW) 2×0.37
Safety Protection Dual oil pumps for complementary oil supply; Automatic shutdown in case of no oil flow or no oil pressure; Water cooling system; Motor preheating start in winter.
Overall Dimensions (L×W×H) (mm) 820×520×1270
Oil Tank Heater Power (kW) 2

Machine Details

Detailed introduction to the double-chamber hard rock crusher structure and design

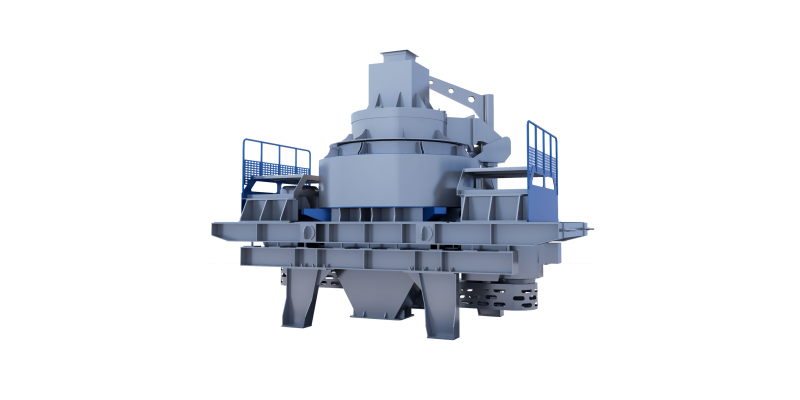

Vsi Sand Making Machine

Vsi Sand Making Machine

Vsi sand making machine

The VSI vertical shaft impact crusher primarily uses a belt-driven vertical shaft to rotate a flat component equipped with a vertical guide device. During rotation, material enters the machine chamber through the feed hopper and is divided into two parts by the distributor. One part enters the high-speed rotating impeller through the center of the distributor, where it is rapidly accelerated and then ejected at a speed of 60-70 m/s from the three evenly distributed channels of the impeller. This material first impacts and crushes a portion of the material falling from around the distributor, and then together they impact the material lining in the vortex chamber. Rebounded by the lining, the material impacts the top of the vortex chamber at an angle, changing its direction of motion and deflecting downwards. The material ejected from the impeller channels forms a continuous curtain of material. Thus, a piece of material undergoes two or more impacts, friction, and grinding within the vortex crushing chamber. The crushed material is discharged from the lower discharge port.

Core Advantages

Core advantages of the double-chamber hard rock crusher design

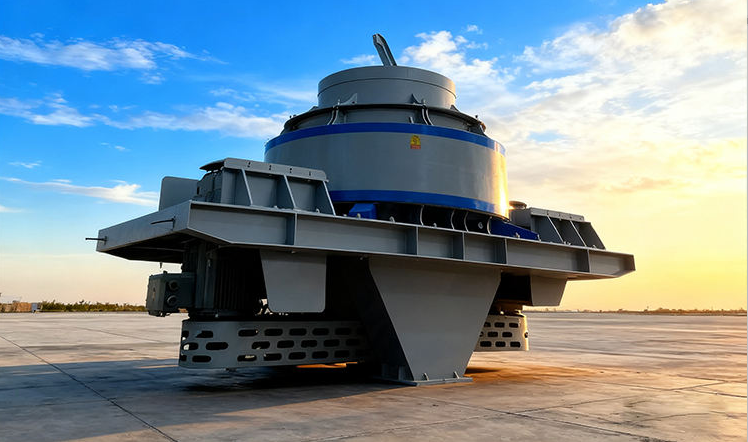

vertical shaft impact crusher-0

Deep Chamber

Higher output with superior particle shape.

  • Deep Rotor Design – The VSI vertical shaft impact crusher features a deep-chamber rotor, allowing greater material throughput.
  • Higher Capacity – Processing capacity can reach up to 580 T/H, increasing output by about 30% compared to traditional equipment.
  • More Crushing Opportunities – Materials undergo more impact and crushing cycles inside the chamber for improved efficiency.
  • Cubic Particle Shape – Finished products are cubic with excellent shape and reduced flakiness.
  • Adjustable Fineness – Well-graded output with adjustable fineness modulus to meet various production requirements.

Low Wear

Reduced part consumption and operating cost.

  • Optimized Impact Angle – The crushing chamber is designed with a reasonable impact angle, reducing friction between materials and wear parts.
  • Lower Operating Cost – Reduced friction directly decreases overall equipment operating expenses.
  • Optimized Rotor Structure – Improved rotor component design enhances durability and lowers long-term usage costs.
  • Modular Hammer Design – Combined hammer structure allows individual hammers to be replaced based on wear condition.
  • Cost-Effective Maintenance – Replacing only worn parts significantly reduces spare parts and maintenance costs.

Smart Lubrication

Reliable operation with intelligent control.

  • Thin Oil Lubrication – Uses a thin oil lubrication system to effectively prevent bearing overheating.
  • Constant Temperature Control – Keeps the main shaft bearings at a stable temperature for smoother operation.
  • Cooling & Heating System – Equipped with air cooling and heating devices to adapt to different working environments.
  • PLC Automatic Control – The PLC intelligent system automatically manages lubrication for precise and efficient operation.
  • Reliable Performance – Ensures stable, safe, and long-term equipment performance.

Eco-Friendly

Low noise and reduced dust emission.

  • Low Operating Noise – Designed to minimize working noise for a quieter production environment.
  • Air Self-Circulation – The vortex chamber features an internal air self-circulation system, reducing external airflow discharge.
  • Less Dust Pollution – Lower exhaust air volume effectively reduces dust emission and environmental impact.

Reliable components for stable performance.

  • High-Quality Parts – Manufactured with premium components to ensure durability and reliability.
Deep Chamber
Low Wear
Smart Lubrication
Eco-Friendly

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

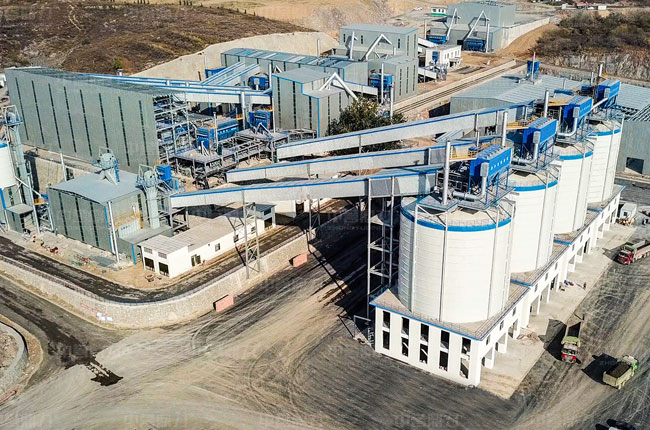

Tianli Building Materials 2,500 TPH Aggregates Production Line

Tianli Building Materials 2,500 TPH Aggregates Production Line

Finished aggregates have excellent particle shape and meet downstream construction requirements. The quantitative conveyor combined with bulk loading system significantly improves truck loading efficiency and reduces labor costs.

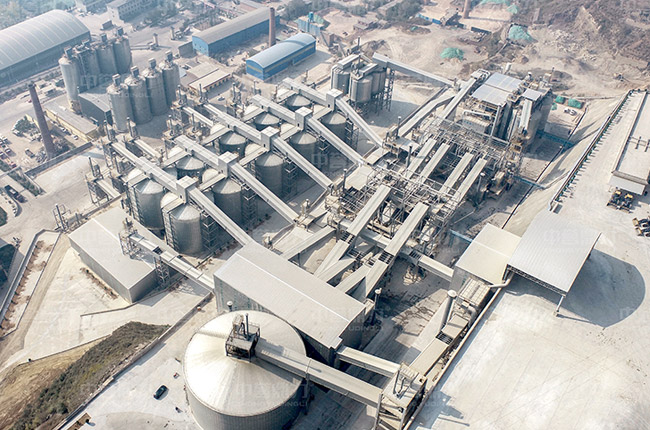

 Yilin Building Materials 2,000 TPH Sand & Aggregate Production Line

Yilin Building Materials 2,000 TPH Sand & Aggregate Production Line

The project was constructed by Zhongyu Dingli under the principles of green mining, intelligent mining, and sustainable building materials development. It integrates intelligent control, environmental protection, and standardized production. After completion, the project attracted visits from government officials of several surrounding counties and districts.

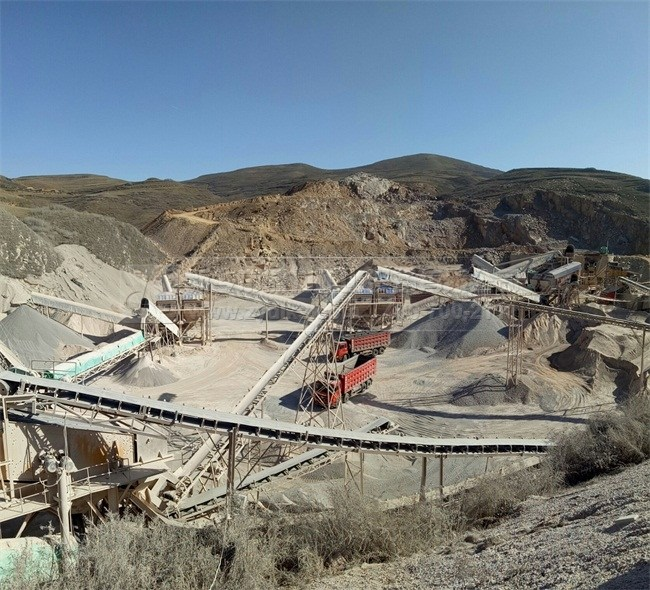

500 TPH Limestone Aggregate Production Line in Pingliang, Gansu

500 TPH Limestone Aggregate Production Line in Pingliang, Gansu

This 500 tons per hour limestone aggregate production line was designed and supplied by Xinxiang Dingli for Yuanfeng Stone Factory in Pingliang, Gansu. The core equipment includes the PCZ1615 heavy hammer crusher with a single-machine capacity of 420–500 TPH, along with a ZG2038 vibrating feeder, multiple vibrating screens, and complete dust collection facilities.

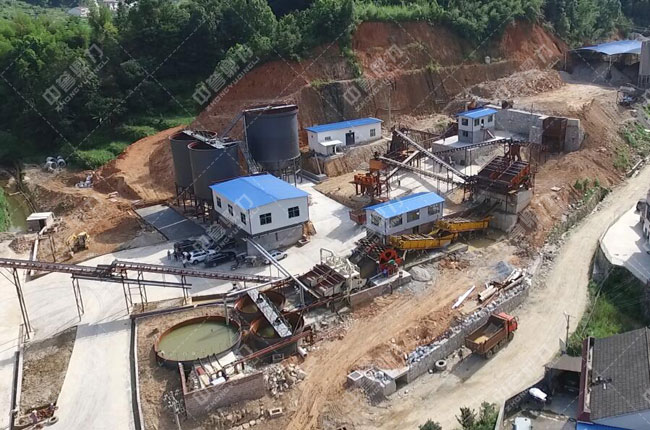

 Hunan 250–350 TPH Aggregate & Sand Production Line

Hunan 250–350 TPH Aggregate & Sand Production Line

The raw material is evenly fed by a vibrating feeder into a hammer crusher for primary crushing. The crushed material is then conveyed to a KPC1313 double-cavity hard rock crusher for secondary crushing and shaping.
