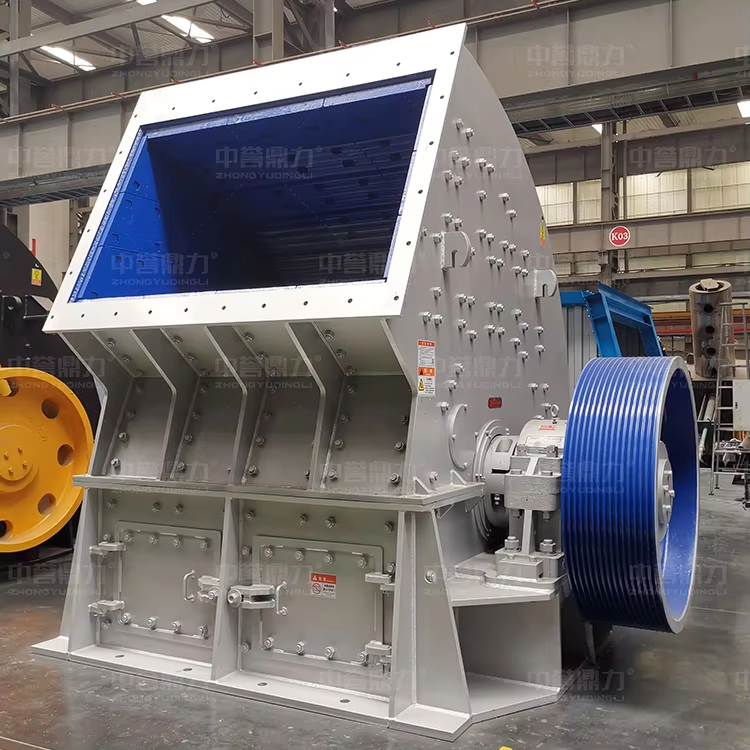

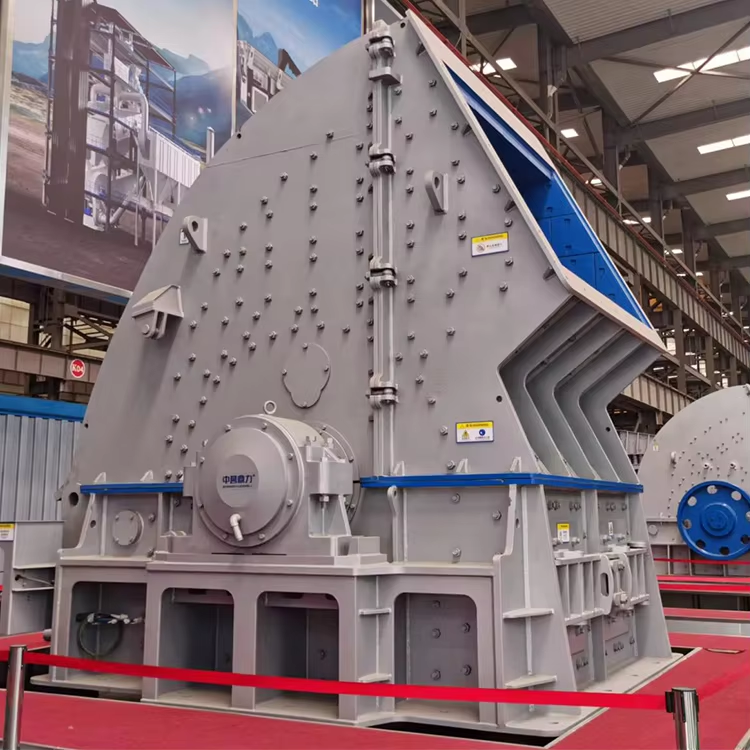

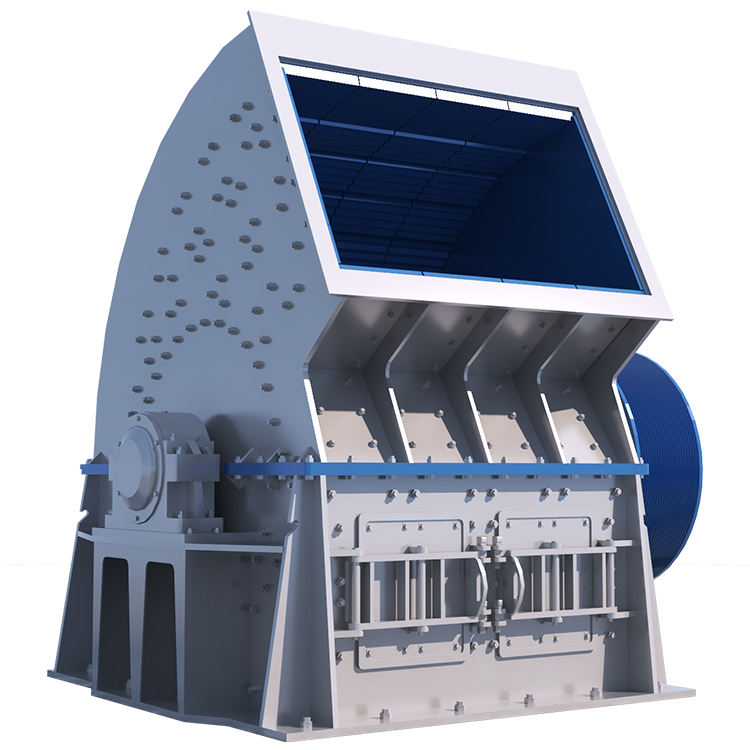

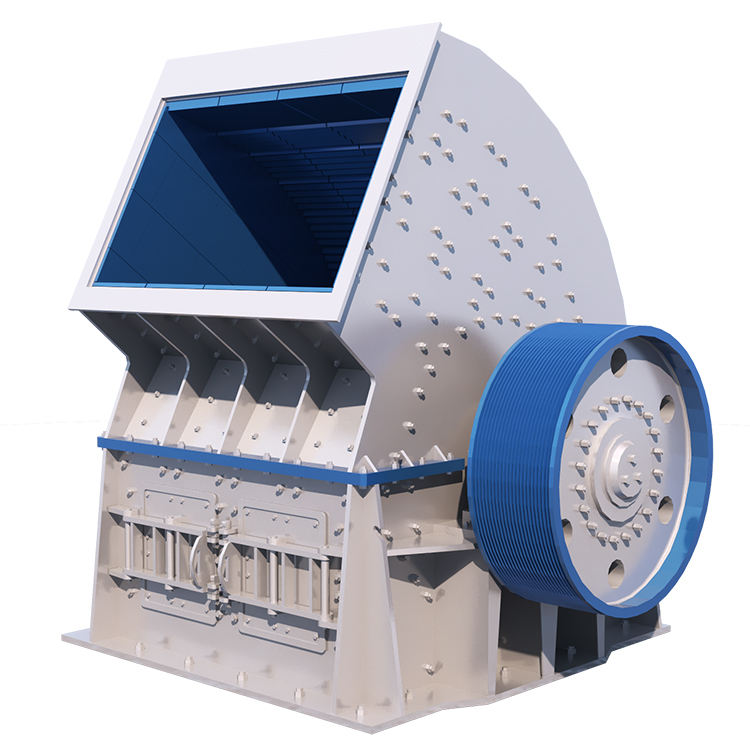

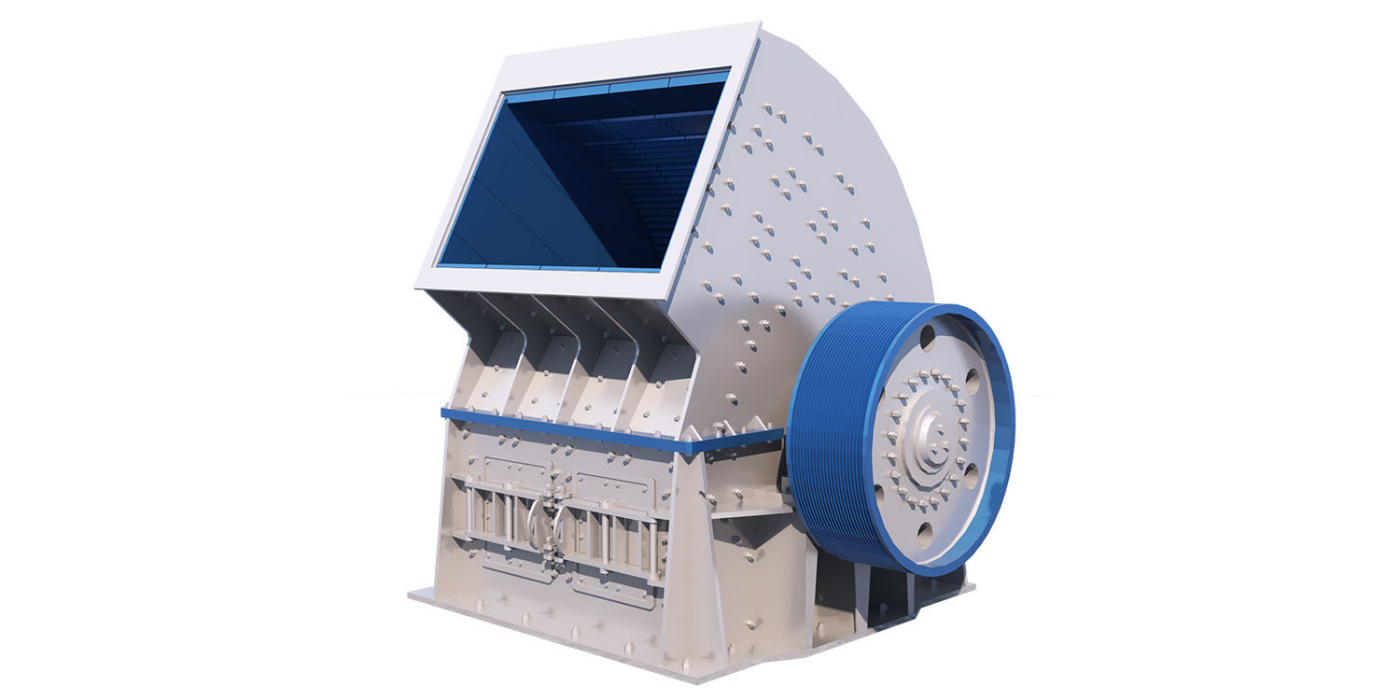

The integral hammer crusher handles large feed, delivers fine output, combines impact crushing and shaping in one stage, reducing costs.
Recommended materials: Limestone, bluestone, and other medium to low hardness materials
Suitable materials: Compressive strength not exceeding 150 MPa and calcium content higher than 40%
Processing capacity: 100-6000 T/H
Feed size: ≤1600mm
| Model | Rotor Diameter (mm) | Feed Inlet Size (mm) | Feed Particle Size (mm) |
| DLPCZ1308 | 1310×790 | 800×850 | ≤500 |
| DLPCZ1512 | 1500×1160 | 1200×900 | ≤600 |
| DLPCZ1615 | 1675×1510 | 1480×1200 | ≤650 |
| DLPCZ1815 | 1776×1510 | 1480×1200 | ≤650 |
| DLPCZ1820 | 1800×1964 | 2000×1200 | ≤800 |
| DLPCZ2020 | 1920×2000 | 2010×1200 | ≤800 |
| DLPCZ2222 | 2130×2260 | 2240×1505 | ≤1000 |
| DLPCZ2225 | 2100×2486 | 2500×1690 | ≤1200 |
| DLPCZ3032 | 3000×3220 | 3240×1840 | ≤1200 |

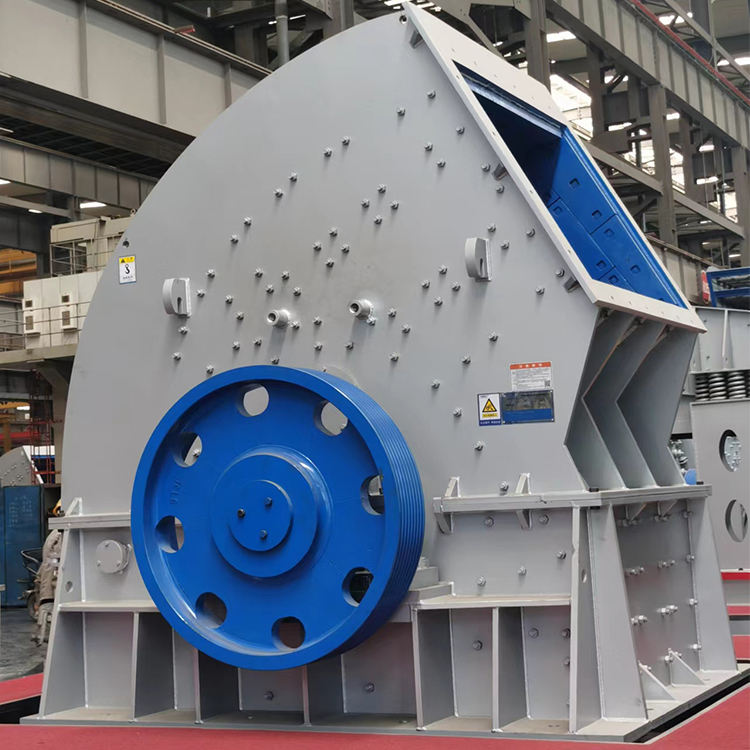

Zhongyu Dingli’s heavy hammer crushers, built on 30+ years’ experience, have sold nearly 10,000 units to major cement companies.
The crusher is suitable for medium to low hardness materials, such as limestone and bluestone, with compressive strength below 150 MPa and calcium content above 40%.
The production capacity ranges from 100 to 6000 tons per hour depending on the model and feed size.

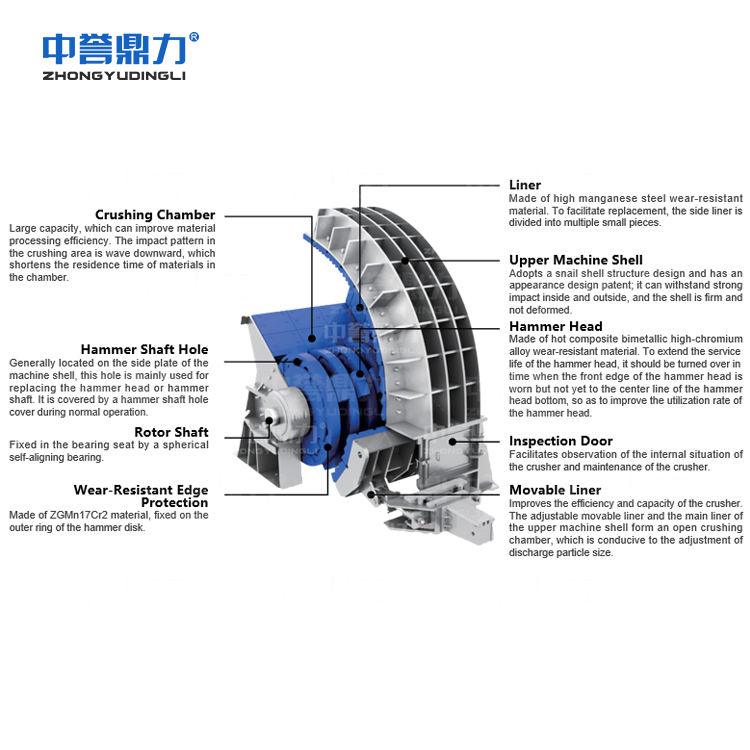

The design includes observation doors, hydraulic hammer pullers, bolt-fastened components, and modular spare hammer shafts to simplify maintenance and reduce downtime.

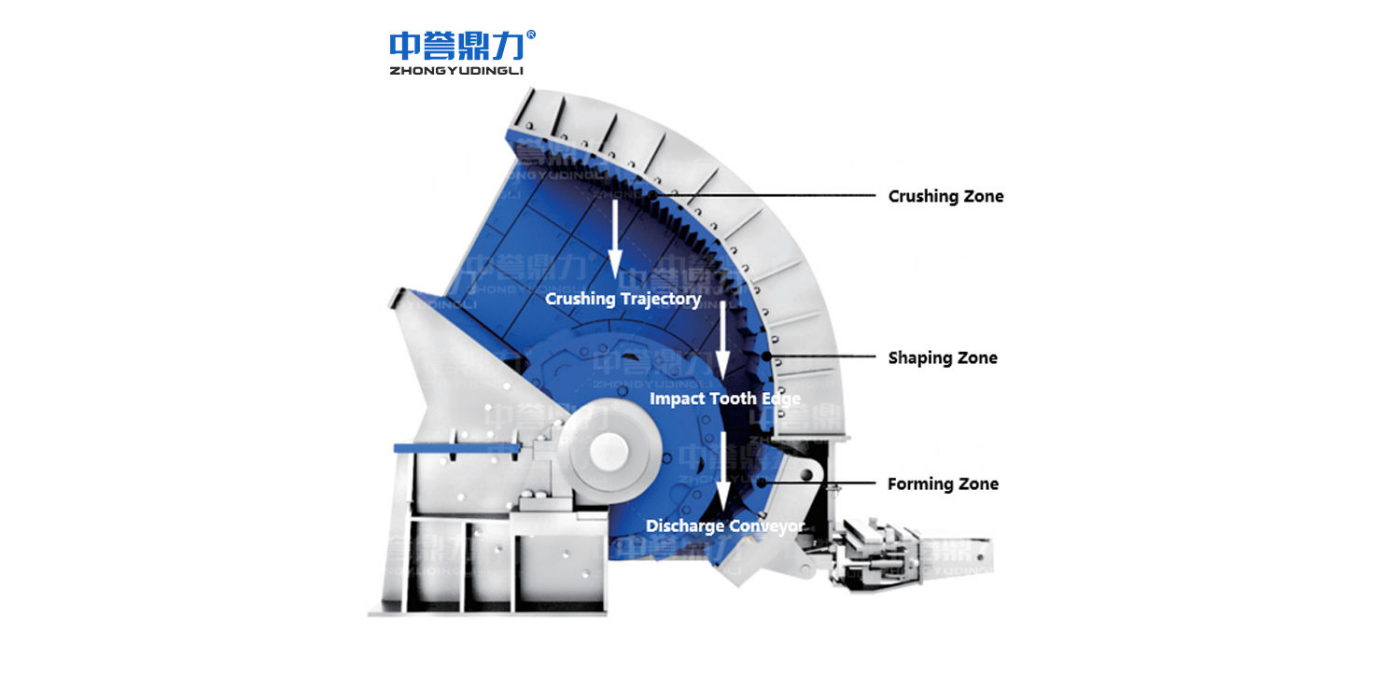

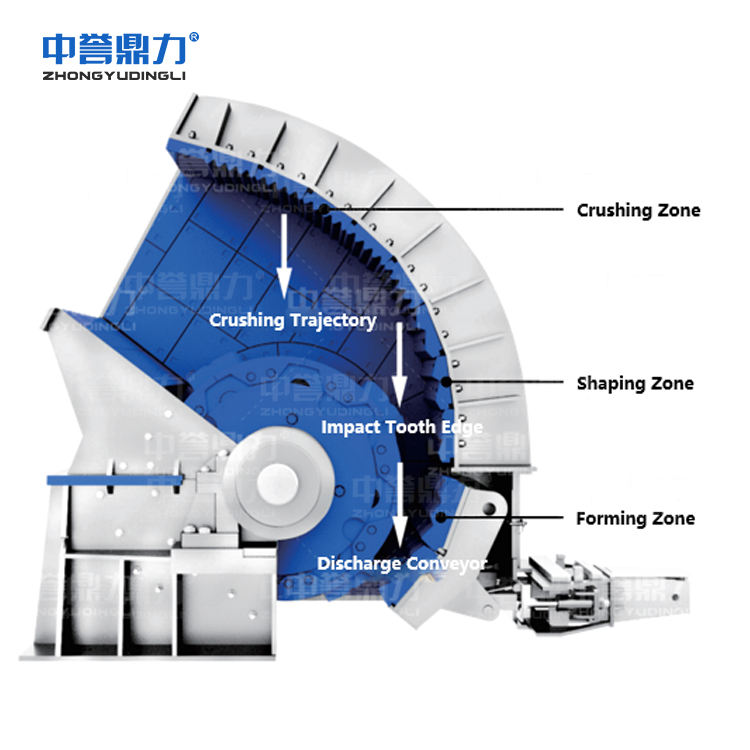

It combines impact crushing, counterattack shaping, and self-flow discharge, replacing two-stage crushing with a single machine to reduce investment and operating costs.
