Reversible sand making machine

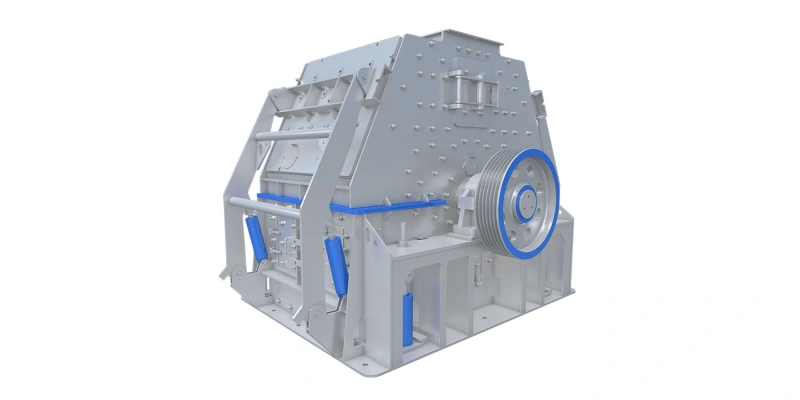

DLKZS Reversible Sand Making Machines

The DLKZS Reversible Hammer Sand Making Machine features a single rotor capable of forward and reverse rotation. By combining the advantages of reversible hammer crushers and double-rotor sand makers, it delivers stable performance, easy maintenance, and intelligent operation. The machine is suitable for both sand making and aggregate production, including crushing hard rock materials.

Suitable Materials:
Limestone, bluestone, granite, pebbles
Capacity:
100–250 T/H
Max Feed Size:
＜180 mm
DLKZS Reversible Sand Making Machines

Technical Specifications

Core technical specifications and performance indicators
Model Rotor Diameter × Length
(mm)		 Feed Particle Size
(mm)		 Power
(kW)		 Production Capacity
(t/h)
DLKZS1314 1340×1430 <180 200×2 100–200
DLKZS1616 1600×1630 <180 250×2 150–250

Machine Details

Detailed introduction to the double-chamber hard rock crusher structure and design

DLKZS Series Reversible Hammer Crushers

DLKZS Series Reversible Hammer Crushers

DLKZS series reversible hammer crushers are used for sand making.

A reversible hammer crusher is a single-rotor hammer crusher with a rotor that can rotate in both directions. Zhongyu Dingli combines the performance advantages of reversible hammer crushers and dual-rotor sand making machines, and, based on market and customer needs, continuously innovates and improves its products in terms of stability, ease of maintenance, and intelligent operation, developing the DLKZS series reversible hammer crusher. This machine can be used for sand and aggregate production, as well as for crushing hard rock materials such as granite and pebbles.

Application Areas: It can be used for sand and aggregate production, as well as for crushing hard rock materials such as granite and pebbles.

Core Advantages

Core advantages of the double-chamber hard rock crusher design

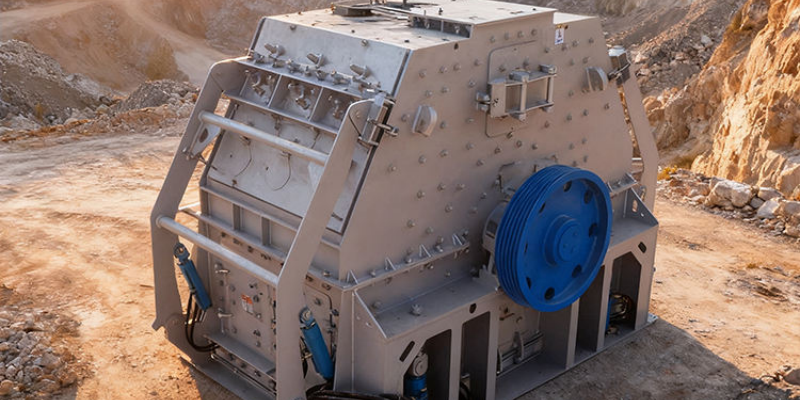

dlkzs reversible sand making machines-0

Reversible Rotor

No need to flip hammers manually.

  • Symmetrical Chamber – The DLKZS reversible hammer sand maker adopts a symmetrical chamber design.
  • Forward & Reverse Rotation – The rotor can operate clockwise and counterclockwise after a period of operation.
  • Dual-Side Hammer Use – Both sides of the hammer can be used without manual flipping.
  • Uniform Wear – Ensures even wear of liners and grate plates on both sides.
  • Lower Maintenance – Reduces maintenance workload and improves equipment service life.

Deep Bolt

Protects bolts from abrasion damage.

  • Deep Hole Design – The bolt head countersink adopts a deep-hole structure to reduce exposure to materials.
  • High-Strength Bolts – Main liners and side liners are secured with hexagonal high-strength bolts for firm installation.
  • Wear Protection – The deep countersunk design prevents bolt heads from being worn by small crushed materials.
  • Extended Service Life – Improves durability of fastening components and reduces maintenance frequency.

Adjustable Grate

Flexible gaps with easy installation.

  • Selectable Gap Size – Grate bar gaps can be selected according to different discharge size requirements.
  • Precise Size Control – Helps achieve more accurate control of the final particle size.
  • Flat Surface Fit – The grate plate and grate frame adopt a flat-surface connection design.
  • Quick Installation – Makes installation and replacement faster and more convenient.

Hydraulic Adjustment

Easy grate frame positioning and control.

  • Hydraulic Regulation – The grate frame can be adjusted hydraulically up and down according to material size and wear of hammers and grate plates.
  • Labor Saving – Hydraulic adjustment significantly reduces manual effort and maintenance time.
  • Auxiliary Positioning – Equipped with a screw rod and nut combination for precise grate frame positioning.
  • Cylinder Protection – The auxiliary structure prevents excessive force on the hydraulic cylinder, extending its service life.
Reversible Rotor
Deep Bolt
Adjustable Grate
Hydraulic Adjustment

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

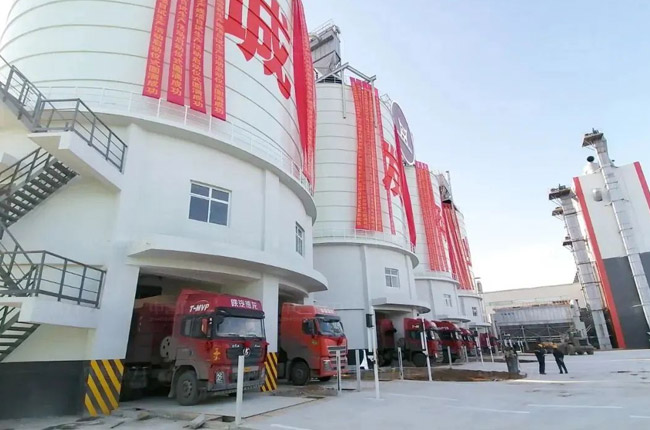

Ningxia 6 Million Tons per Year Aggregate Production Line

Ningxia 6 Million Tons per Year Aggregate Production Line

The aggregate production line and the integrated intelligent mining management system were fully supplied and installed by Zhongyu Dingli.

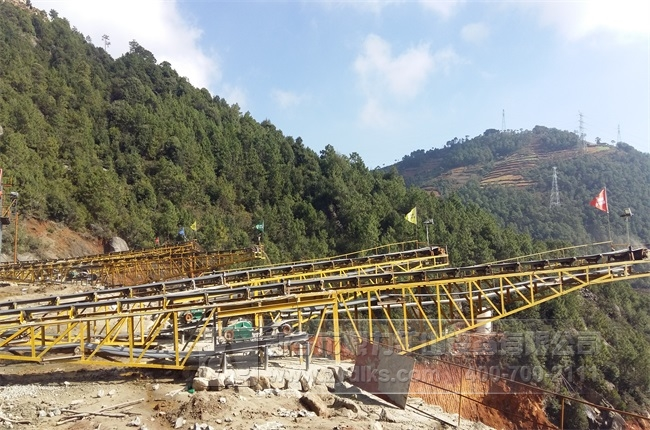

 Sichuan 250–300 TPH Granite Crushing Production Line

Sichuan 250–300 TPH Granite Crushing Production Line

The picture above shows the production site of a 300 TPH granite crushing production line. Unlike traditional hard rock crushing lines that require multiple crushers, this project uses a single KPC1313 hard rock crusher to complete the crushing process.

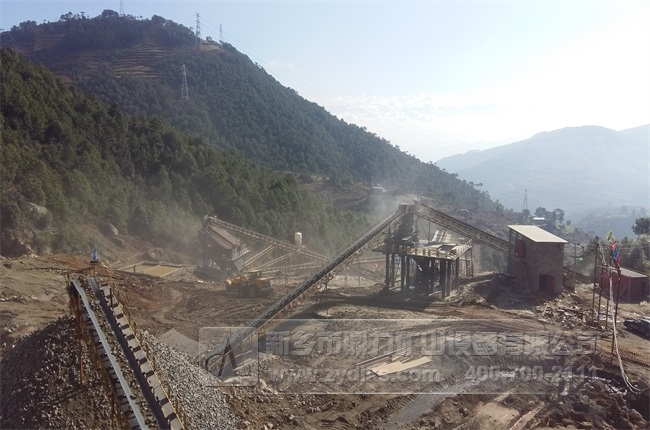

Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

The raw materials are first evenly fed into the hammer crusher through a vibrating feeder for primary crushing. After the initial crushing stage, the material is conveyed to the KPC1313 double-chamber hard rock crusher for secondary crushing and shaping.

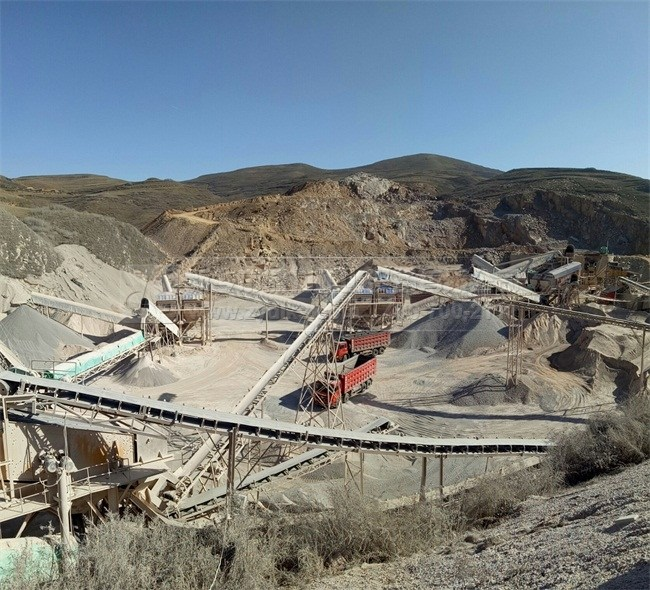

 500 TPH Limestone Aggregate Production Line in Pingliang, Gansu

500 TPH Limestone Aggregate Production Line in Pingliang, Gansu

This 500 tons per hour limestone aggregate production line was designed and supplied by Xinxiang Dingli for Yuanfeng Stone Factory in Pingliang, Gansu. The core equipment includes the PCZ1615 heavy hammer crusher with a single-machine capacity of 420–500 TPH, along with a ZG2038 vibrating feeder, multiple vibrating screens, and complete dust collection facilities.
