Spiral Sand Washer

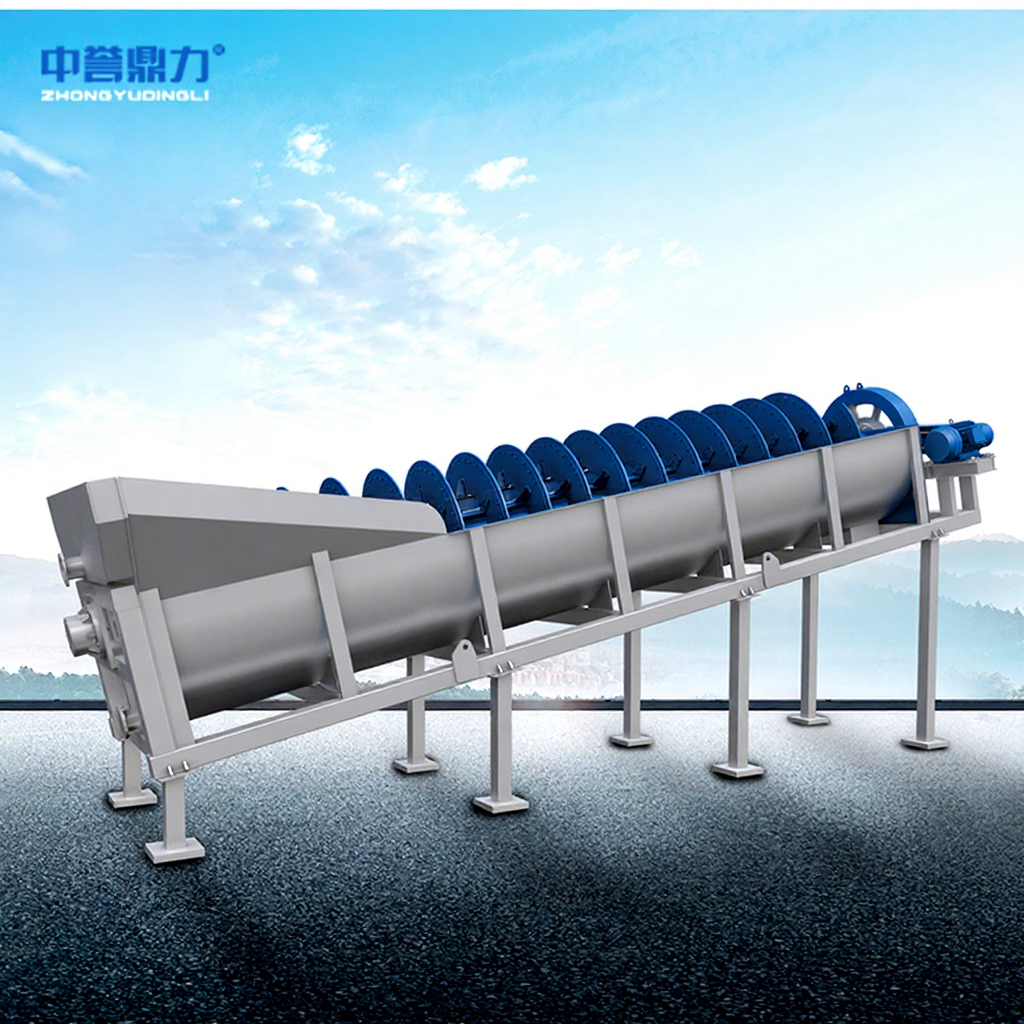

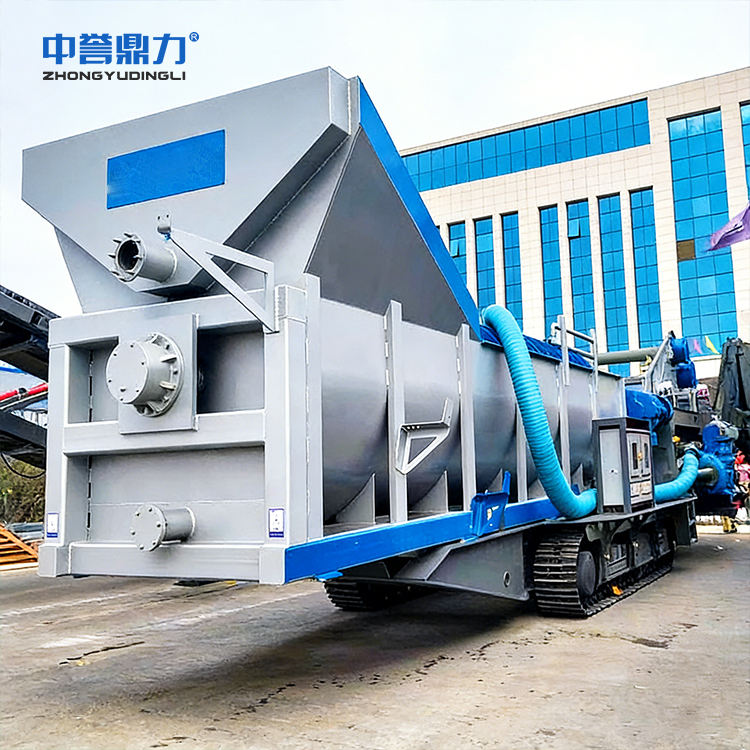

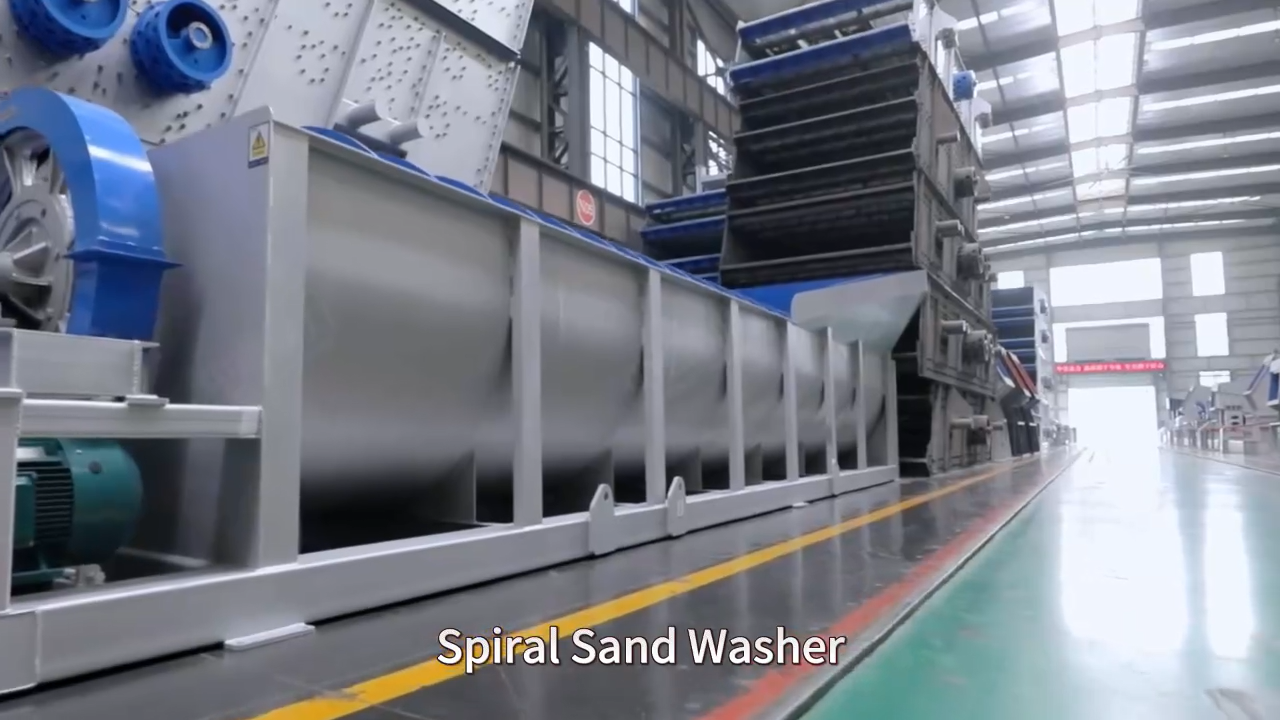

Spiral Sand Washer Machine

The spiral sand washing machine is a type of sand washer primarily used in manufactured sand production lines. It is designed to effectively remove mud, dust, and other impurities from the surface of sand and gravel, improving sand quality and ensuring a cleaner final product suitable for construction and industrial applications.

Applications:
Sand and gravel plants, mines, building materials plants, concrete mixing plants.
Feed size:
≤10mm
Processing capacity:
70-320t/h
Spiral Sand Washer Machine

Technical Specifications

Core technical specifications and performance indicators
Model Speed (r/min) Motor Power (kW) Capacity (t/h)
DLLXS1590 13 30 70–110
DLLXS1890 11.5 37 130–160
DLLXS2011 10 37 180–210
DL2LXS1890 11.5 37×2 260–320

Machine Details

Detailed introduction to the double-chamber hard rock crusher structure and design

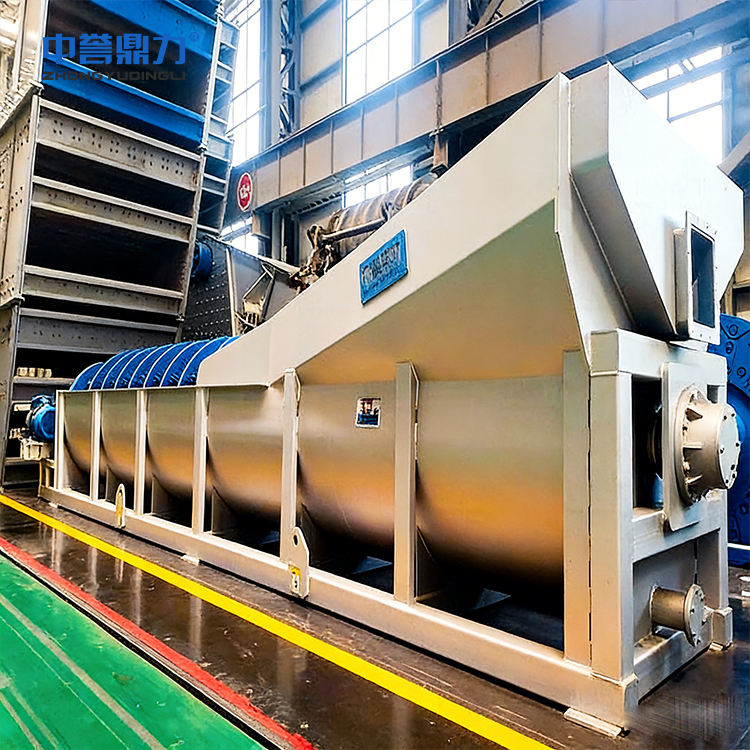

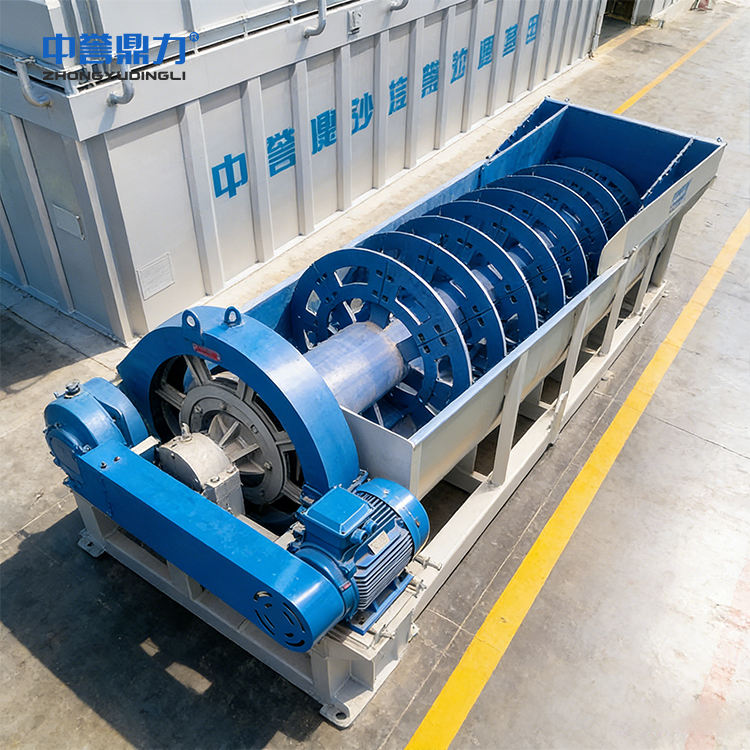

Single Spiral Sand Washing Machine

Single Spiral Sand Washing Machine

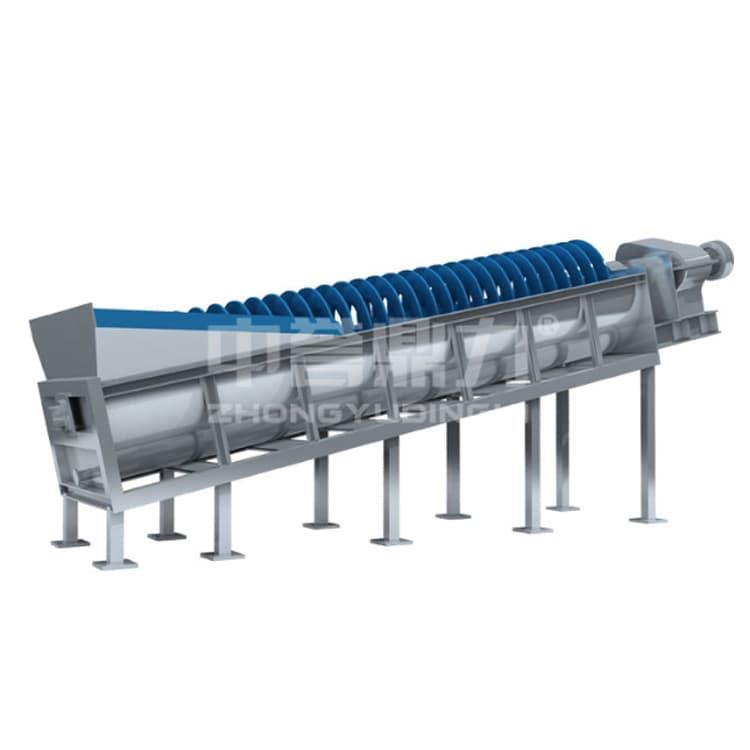

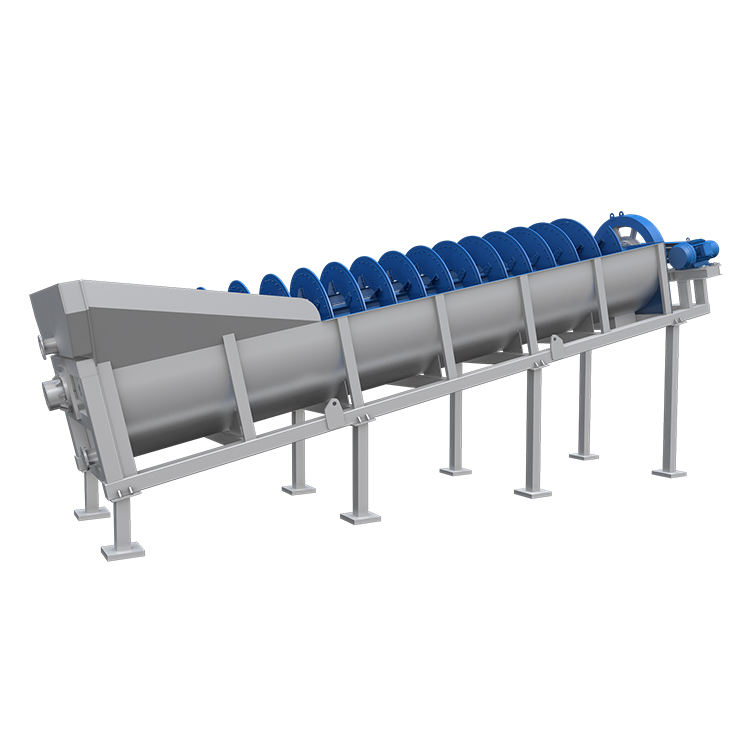

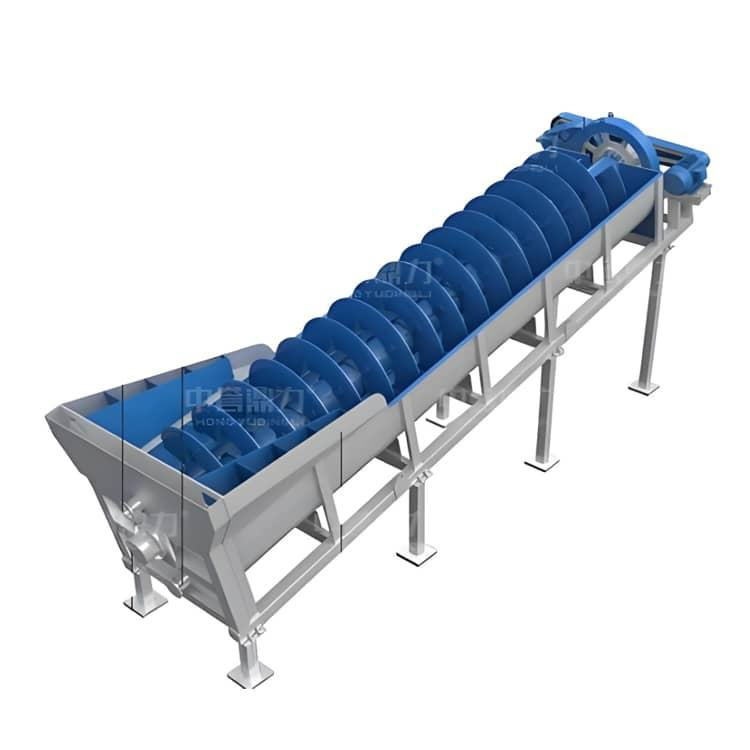

Spiral Sand Washing Machine Structure

The spiral sand washing machine consists of a transmission system, spiral, washing tank, sludge removal pipe, overflow pipe, tail shaft, and casing. The transmission system comprises a motor, pulleys, and reducer to drive the spiral rotation; the speed is adjustable. The spiral section consists of a hollow shaft, support frame, and spiral blades. The spiral blades are made of wear-resistant cast iron for easy replacement. The washing tank is constructed of thickened steel plates, welded together, with a semi-circular bottom to accommodate the spiral blades.

Spiral Sand Washing Machine Principle

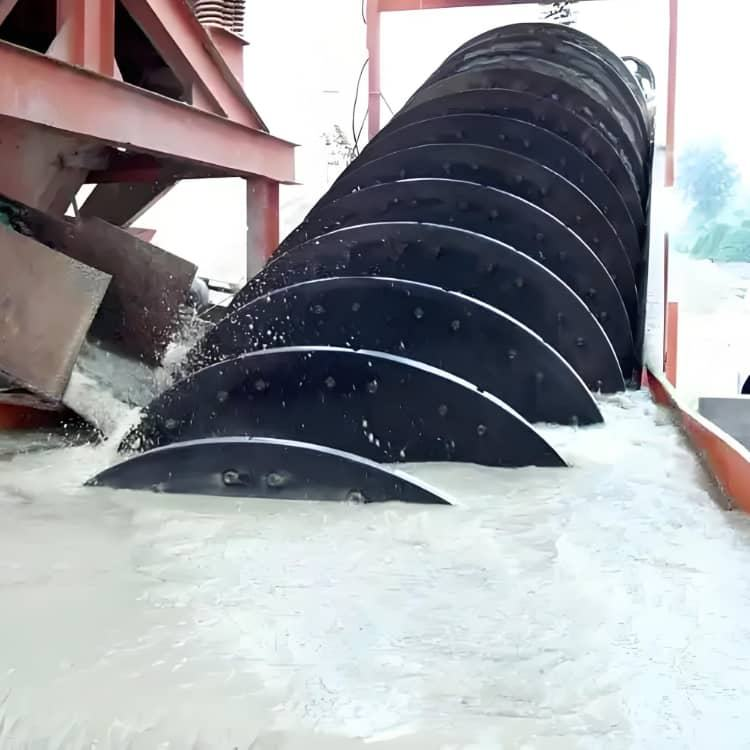

The motor drives the spiral to rotate. Sand and gravel enter the washing tank and are tumbled by the spiral blades. The sand and gravel are rapidly mixed with water, separating impurities such as mud from the sand. The washed-out impurities flow out through the overflow pipe, while the cleaned sand and gravel are pushed to the higher discharge port by the spiral blades and discharged from the washing tank, completing the sand and gravel cleaning process.

Core Advantages

Core advantages of the double-chamber hard rock crusher design
spiral sand washer machine-0

Low Failure

Reliable operation with protected bearings.

  • Isolated Bearings – The impeller drive bearing device is separated from water, preventing water damage.
  • Stable Operation – Reduced bearing wear leads to a lower equipment failure rate.

Efficient washing for high-quality materials.

  • Rapid Mixing – Sand and water mix quickly and thoroughly for effective cleaning.
  • High Purity Output – Produces cleaner materials that meet high-grade construction requirements.

Water Saving

Efficient recycling of wastewater.

  • Sedimentation Reuse – Discharged wastewater can be reused after treatment in a sedimentation tank.
  • Resource Conservation – Helps save water resources and supports sustainable production.

Simple structure with minimal maintenance.

  • Simple Structure – The equipment features a straightforward design for easy operation.
  • Fewer Wear Parts – Reduced number of wear parts lowers maintenance frequency and repair costs.

Reliable Performance

Efficient design with stable operation.

  • Sealed Structure – Closed structural design improves water utilization efficiency.
  • Low Energy Consumption – Lower energy use per unit time ensures economical operation.

Consistent output with effective dewatering.

  • Enclosed Transmission – Sealed transmission system enhances operational stability.
  • Adjustable Weir Plate – Adjustable overflow weir plate helps control discharge and improve dewatering performance.

Low Loss

Reduced material and water loss.

  • Low Water Use – The sand washing process consumes relatively little water.
  • Minimal Fine Loss – Reduces the loss of fine sand and stone powder during washing.

High-quality sand with quick return.

  • High Cleanliness – Produces cleaner sand with smoother and more rounded particle shape.
  • Lower Investment – Lower equipment investment cost helps achieve faster return on investment.
Low Failure
Water Saving
Reliable Performance
Low Loss

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

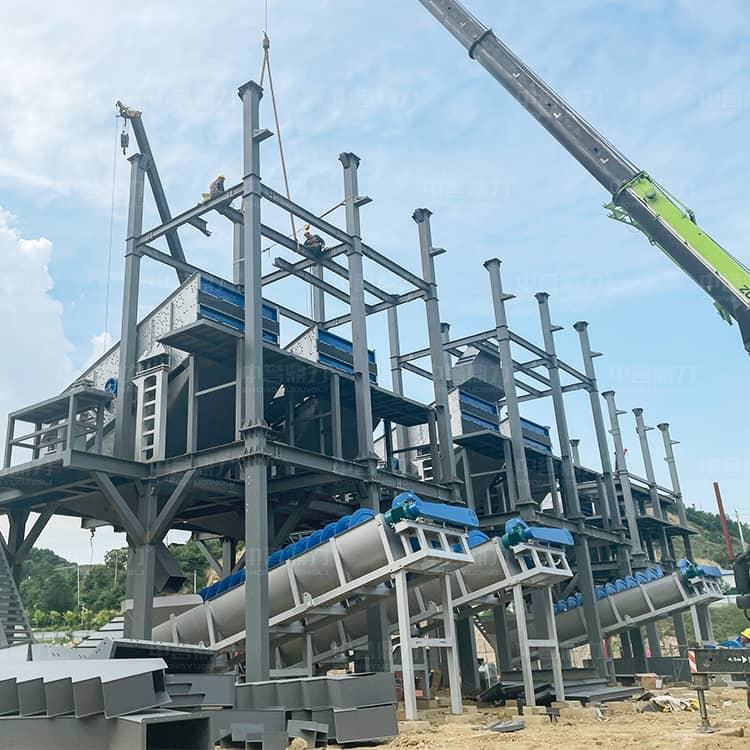

Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

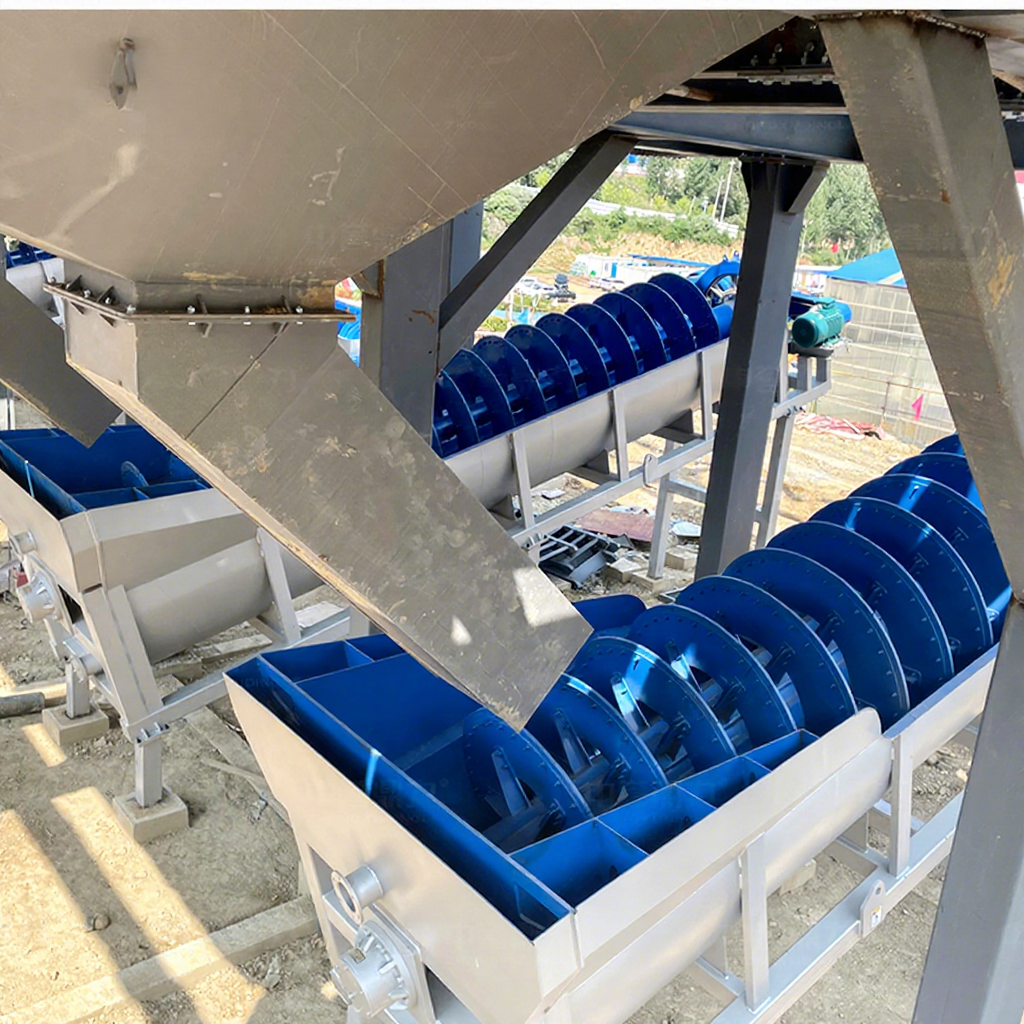

The screened finished sand is delivered to two wheel sand washing machines for cleaning, producing high-quality finished sand with improved cleanliness.

 Henan Province, 2500-ton-per-hour sand and gravel production line

Henan Province, 2500-ton-per-hour sand and gravel production line

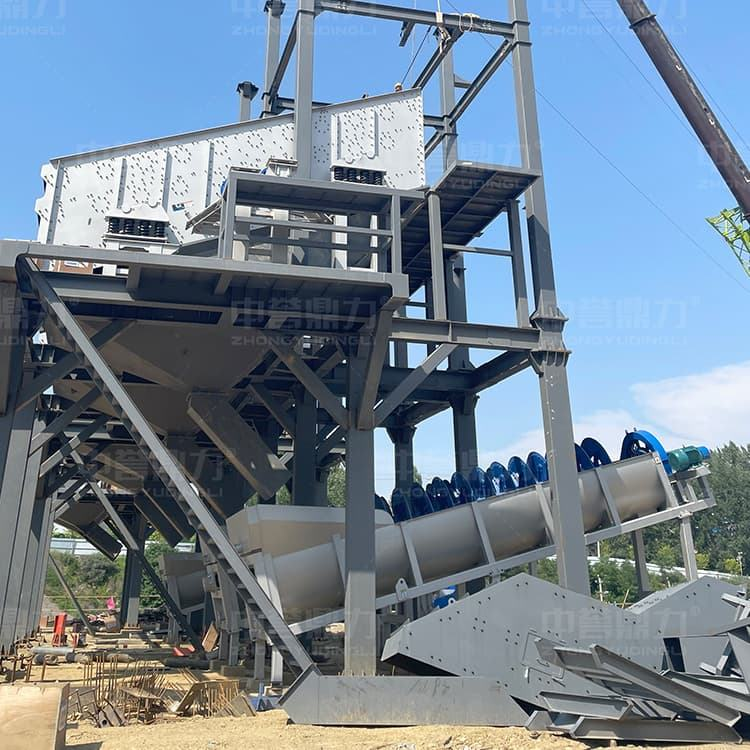

To address the pain points of traditional sand and gravel plants, such as long construction cycles and heavy environmental burdens, this 2,500-ton-per-hour sand and gravel production line adopts a prefabricated modular construction model—all steel structures are prefabricated in the company's workshop and then assembled on-site, reducing on-site construction time by 60%. The production line is equipped with an intelligent central control system that monitors the real-time operating status of core equipment such as the hammer crusher and dual-rotor sand making machine.
Sichuan 250–300 TPH Granite Crushing Production Line

Sichuan 250–300 TPH Granite Crushing Production Line

This design significantly reduces equipment investment and simplifies the production line configuration. At the same time, the crusher has a large processing capacity, allowing it to handle a high volume of materials within a short period and efficiently complete the crushing process

 300 TPH Sand Production Line in Weihui, Xinxiang, Henan

300 TPH Sand Production Line in Weihui, Xinxiang, Henan

At the customer’s production site, the raw materials used for sand making are mainly large-size aggregates. These stones are first crushed again to reduce their size and then processed through the sand making system.
