Output: 1000-1200 T/H Configuration: Vibrating feeder, PCZ1620/PCZ1615 hammer crusher, two sets of parallel double vibrating screens. Solution Introduction: Calcite is used as a flux in the metallurgical industry and in the construction industry for ...
Output: 1000-1200 T/H
Configuration: Vibrating feeder, PCZ1620/PCZ1615 hammer crusher, two sets of parallel double vibrating screens.
Solution Introduction: Calcite is used as a flux in the metallurgical industry and in the construction industry for the production of cement and lime. It is also used in plastics, papermaking, and toothpaste. In food, it is used as a filler additive. Adding calcite to glass production makes the glass translucent, suitable for making glass lampshades.
Production Line Details
Calcite is a calcium carbonate mineral, and it is the most common form of calcium carbonate. Calcite crystals come in various shapes; their aggregates can be clusters of crystals, or they can be granular, massive, fibrous, stalactitic, earthy, etc. Breaking calcite produces many square fragments, hence the name calcite. Processed calcite is widely used in industries such as plastics, coatings, rubber, papermaking, adhesives, and sealants. Calcite is a widely distributed mineral, and mined calcite needs to be crushed and processed by crushing equipment before being used in actual production. The following is a detailed explanation of the configuration of a common 1000-1200T/H calcite production line.

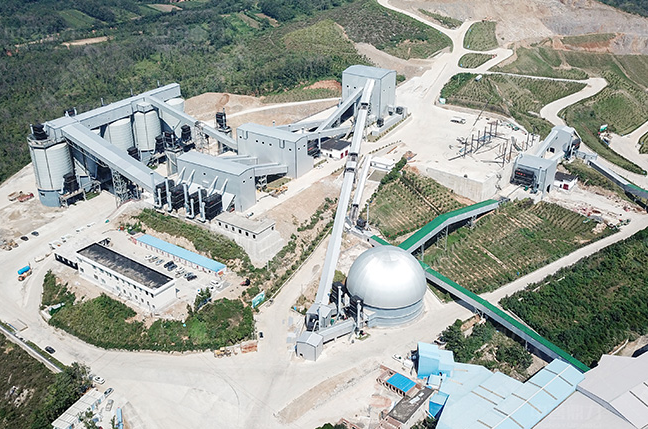

1000–1200 TPH Calcite Crushing and Screening Plant Overview
The configuration solution for a 1200 tons/hour calcite production line involves using loaders and trucks to feed limestone mined from the mine into a hopper, which is then evenly fed into a PCZ1620 heavy-duty crusher via a ZG2038 vibrating feeder. The crushed material enters the PCZ1615 crusher for secondary crushing and shaping. The resulting mixture then enters a 3YKZ3070 vibrating screen for primary screening. Unqualified large pieces are returned to the PCZ1615 heavy hammer crusher to produce one type of finished material. The undersized mixture enters a second vibrating screen, 2YKZ3070, for secondary screening. The finished stone from the second screening is stacked using a belt conveyor.

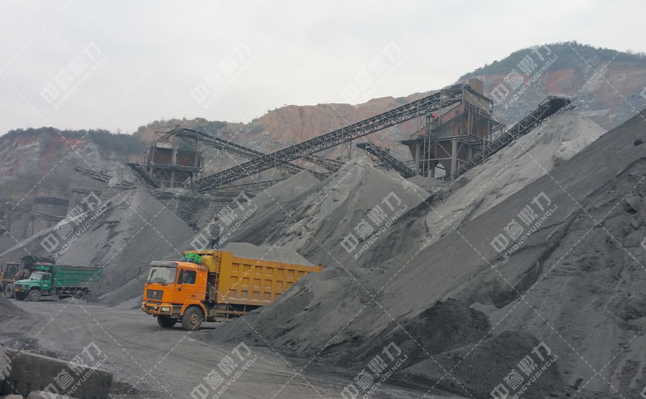

Calcite Aggregate Stockpiles and Material Handling Area

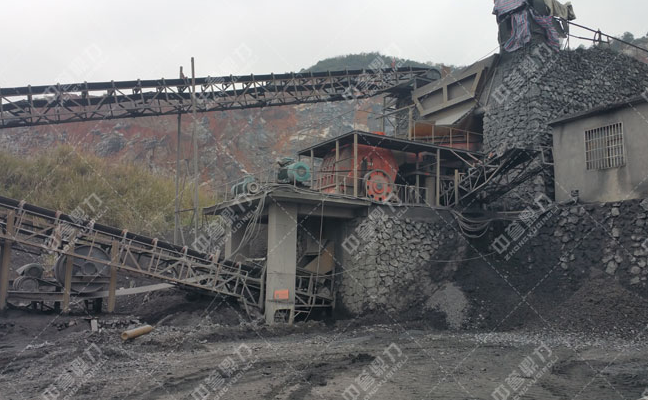

Calcite Crushing and Conveying System in Operation
