Hunan 250–350 TPH Aggregate & Sand Production Line

Project Overview

• Project Location: Liuyang, Hunan, China
• Commissioning Time: 2017
• Raw Material: Limestone
• Capacity: 250–350 tons per hour
• Finished Products: 1–3, 1–2, 0–5 mm aggregates and manufactured sand
• Main Equipment: Vibrating feeder, hammer crusher, KPC1313 double-cavity hard rock crusher, vibrating screens, sand washing machines, etc.

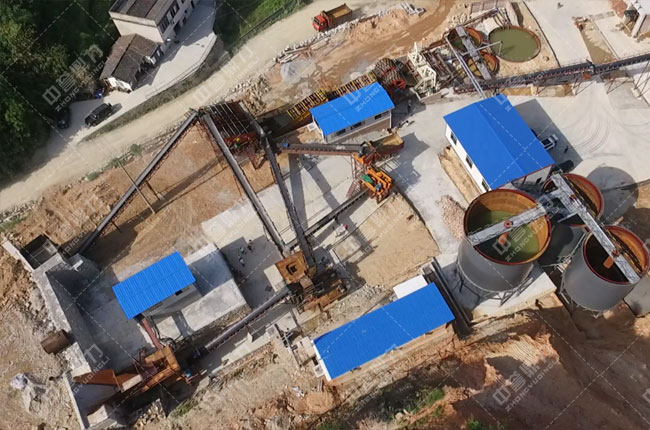

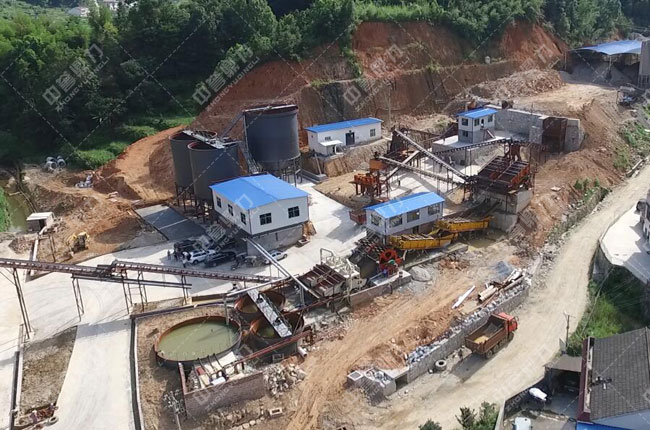

Production Site Introduction

Process Flow of the 250–350 TPH Crushing & Sand-Making Line

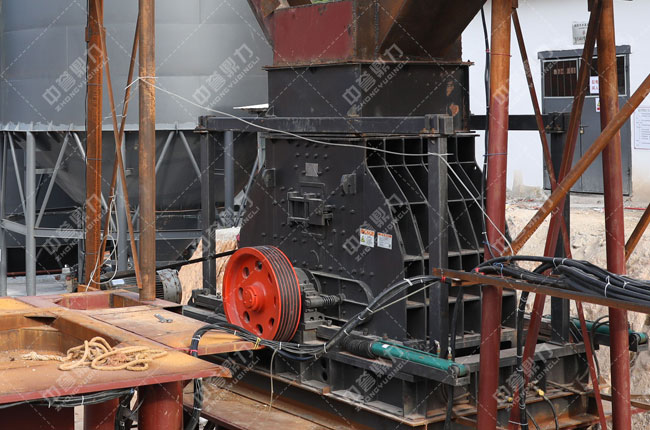

The raw material is evenly fed by a vibrating feeder into a hammer crusher for primary crushing. The crushed material is then conveyed to a KPC1313 double-cavity hard rock crusher for secondary crushing and shaping.

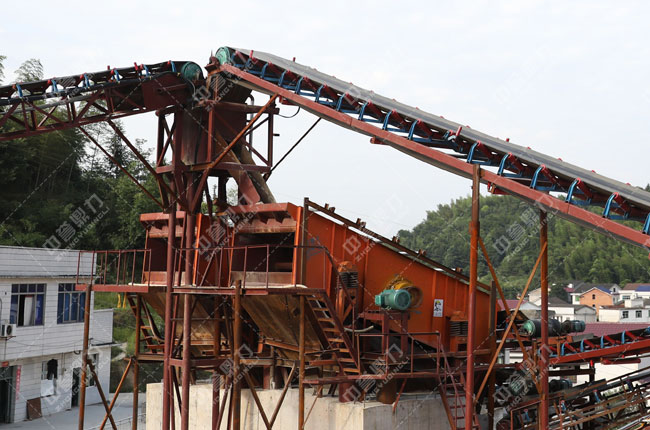

Afterward, the material is sent to a screening unit for classification. Oversized material is returned to the hard rock crusher for further crushing. Material smaller than 1–3 mm is conveyed to a transfer bin and then re-fed into the screening system.

The screened finished sand is transported to two wheel-type sand washing machines for cleaning, resulting in high-purity finished sand.

Customer Feedback

Mr. Tan, General Manager of Xinlei Building Materials, Liuyang, Hunan:

“We were introduced to Zhongyu Dingli through a friend. After visiting their equipment installation site, we decided to cooperate with them. We are satisfied with both the equipment quality and the installation service. In particular, we are very pleased with the production capacity and particle shape produced by the KPC1313 double-cavity hard rock crusher.”
