Technical Specifications
Industry-leading performance metrics and capabilities
| Name |
DL2GPX1218 |
DL2GPX1230 |
Unit |
| Crushing roller specification |
1200×1800 |
1200×3000 |
mm |
| Spindle speed |
60 |
60 |
r/min |
| Feed opening size |
800×1800 |
800×3000 |
mm |
| Maximum feed size |
≤350 |
≤400 |
mm |
| Discharge size |
≤80 |
≤80 |
mm |
| Processing capacity |
450–550 |
800–1000 |
t/h |
| Motor power |
160×2 |
220×2 |
kW |
| Overall dimension |
5700×3280×1600 |
6900×3280×1600 |
mm |

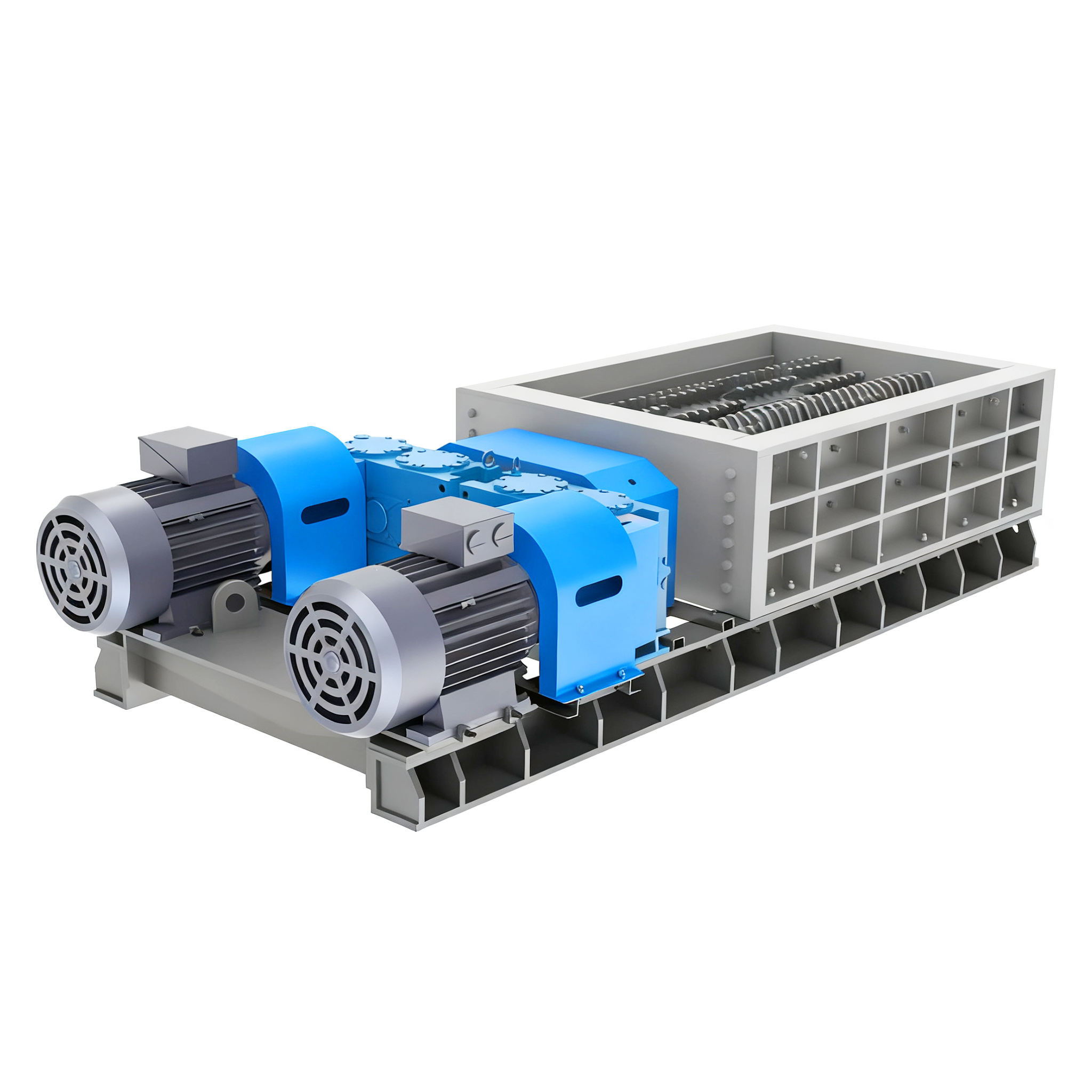

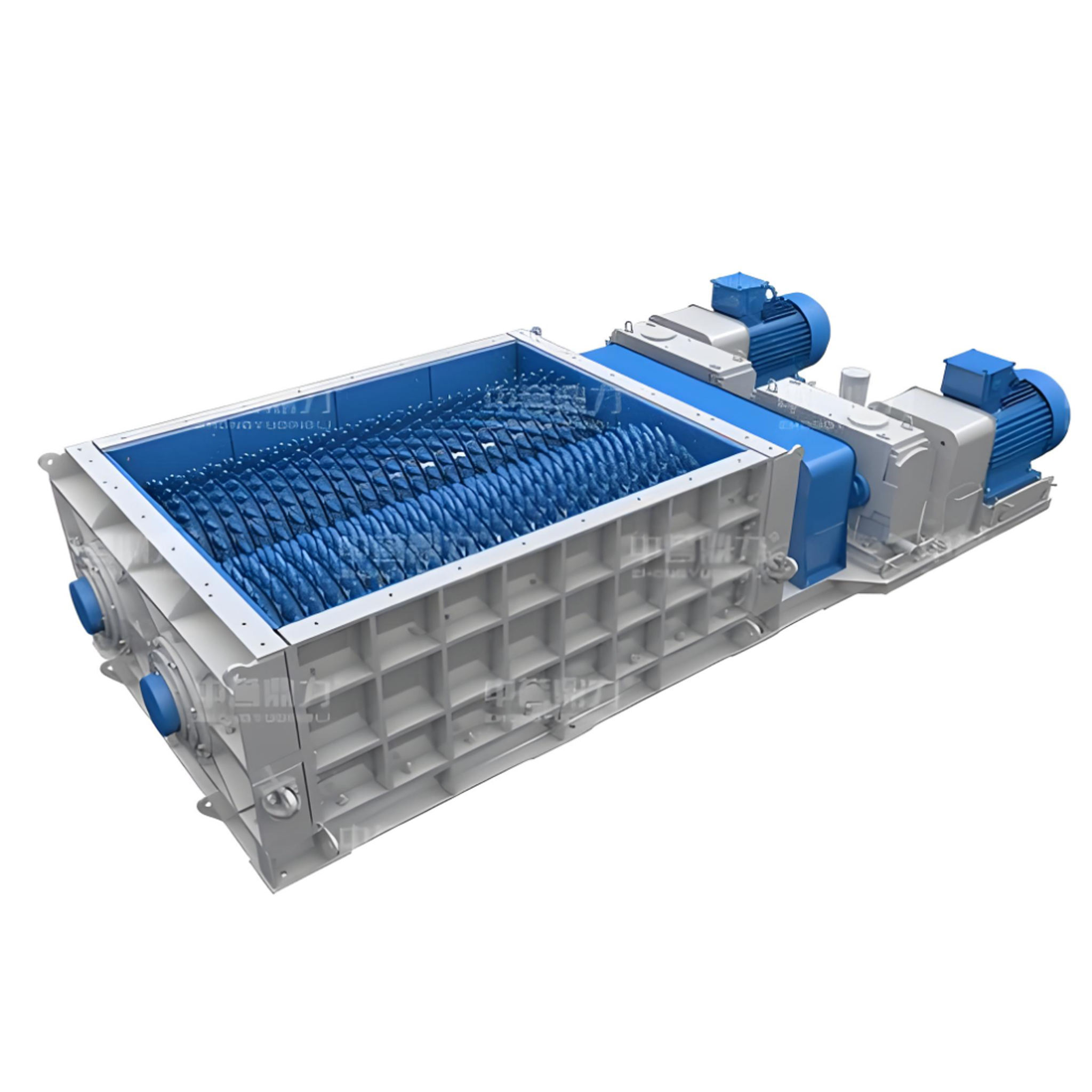

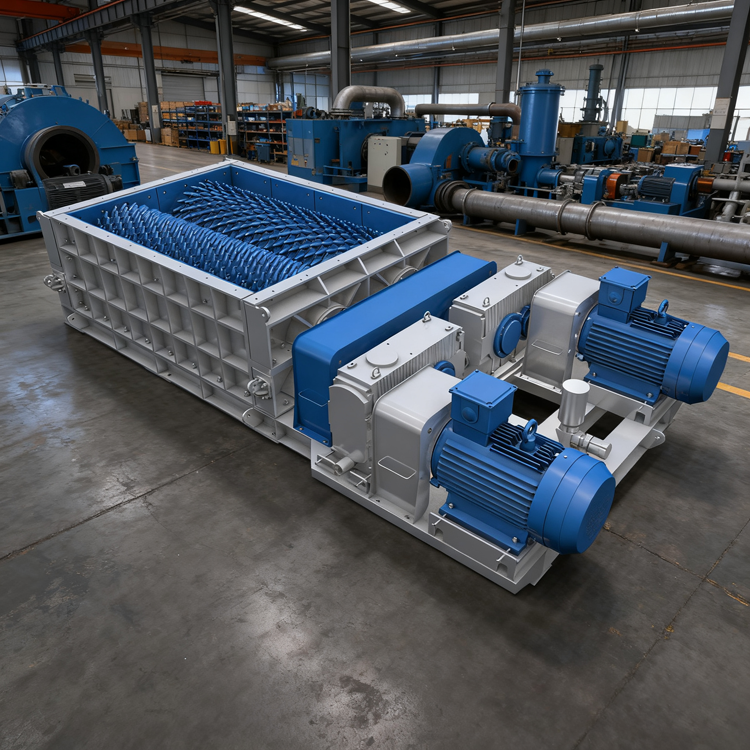

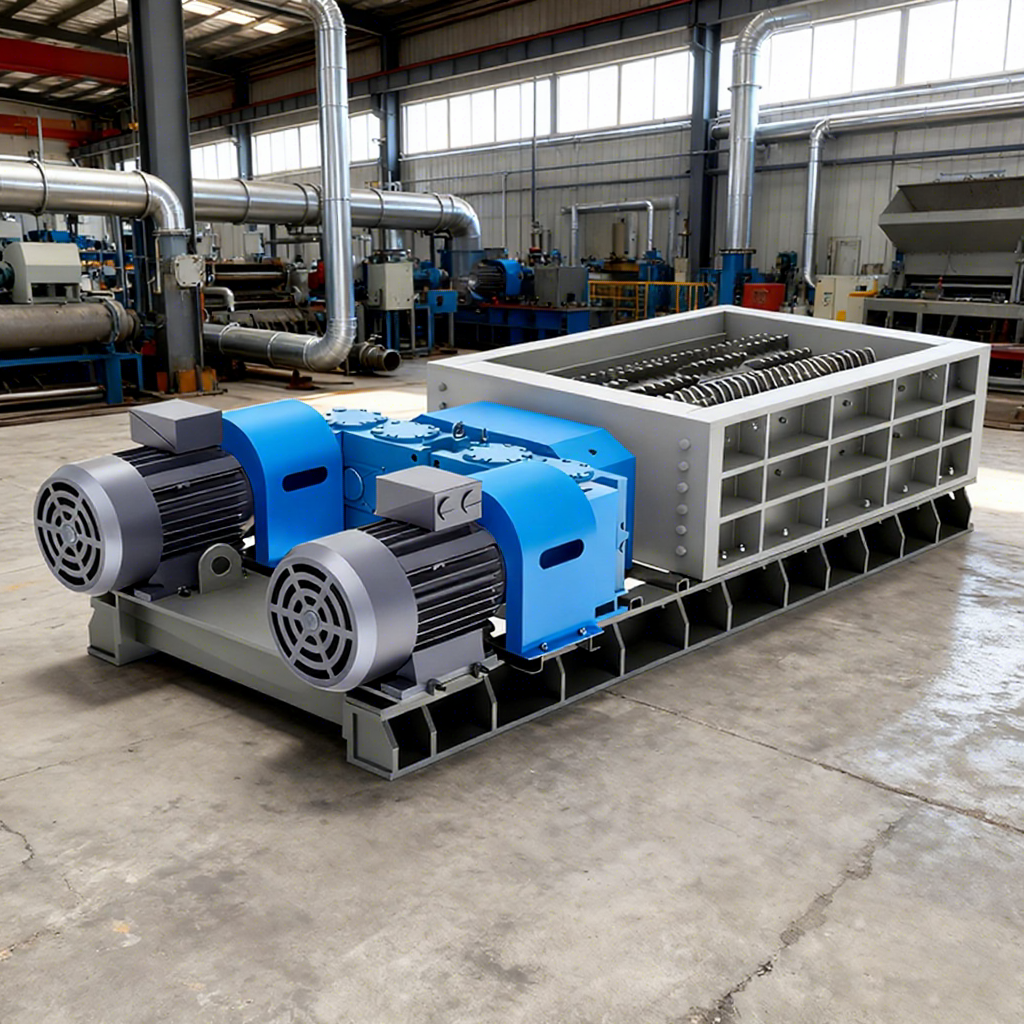

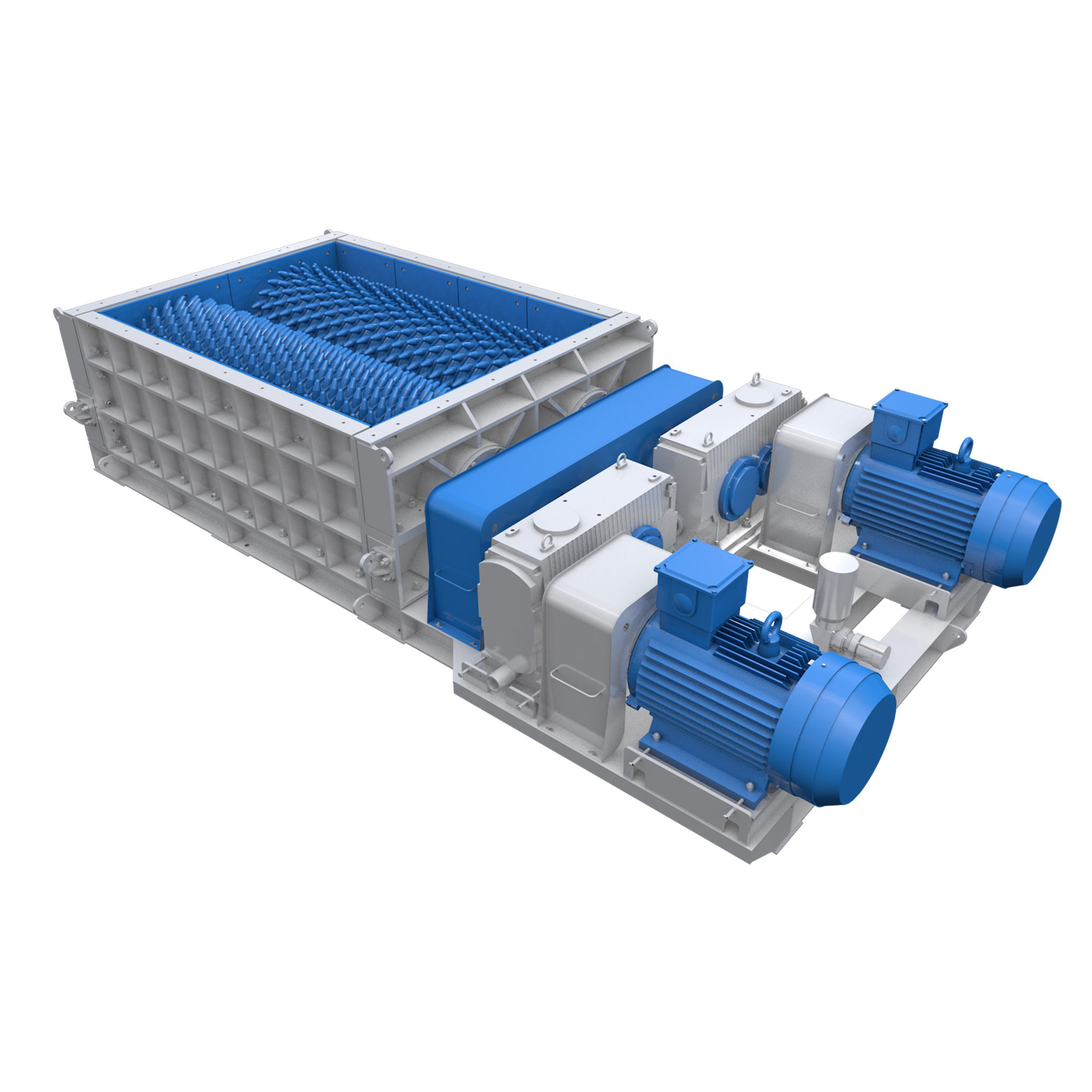

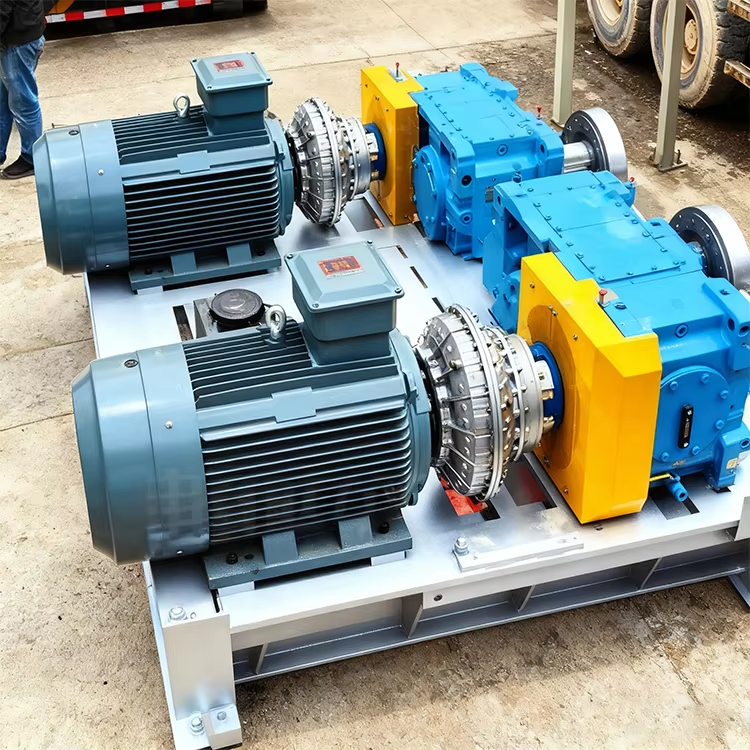

Machine Details
Precision-engineered components for unmatched performance
Core Advantages
Cutting-edge technology that sets the industry standard
High Block Rate
Uniform output with lower maintenance cost.
- Combined Crushing Principle – Utilizes shearing, splitting, and extrusion for efficient material reduction.
- Higher Lump Ratio – Compared with secondary crushers such as impact and cone crushers, the block rate reaches 65%–80%.
- Uniform Particle Size – Produces evenly sized finished materials with reliable and convenient size adjustment.
- Low Maintenance – Requires less maintenance work, reducing downtime and service costs.

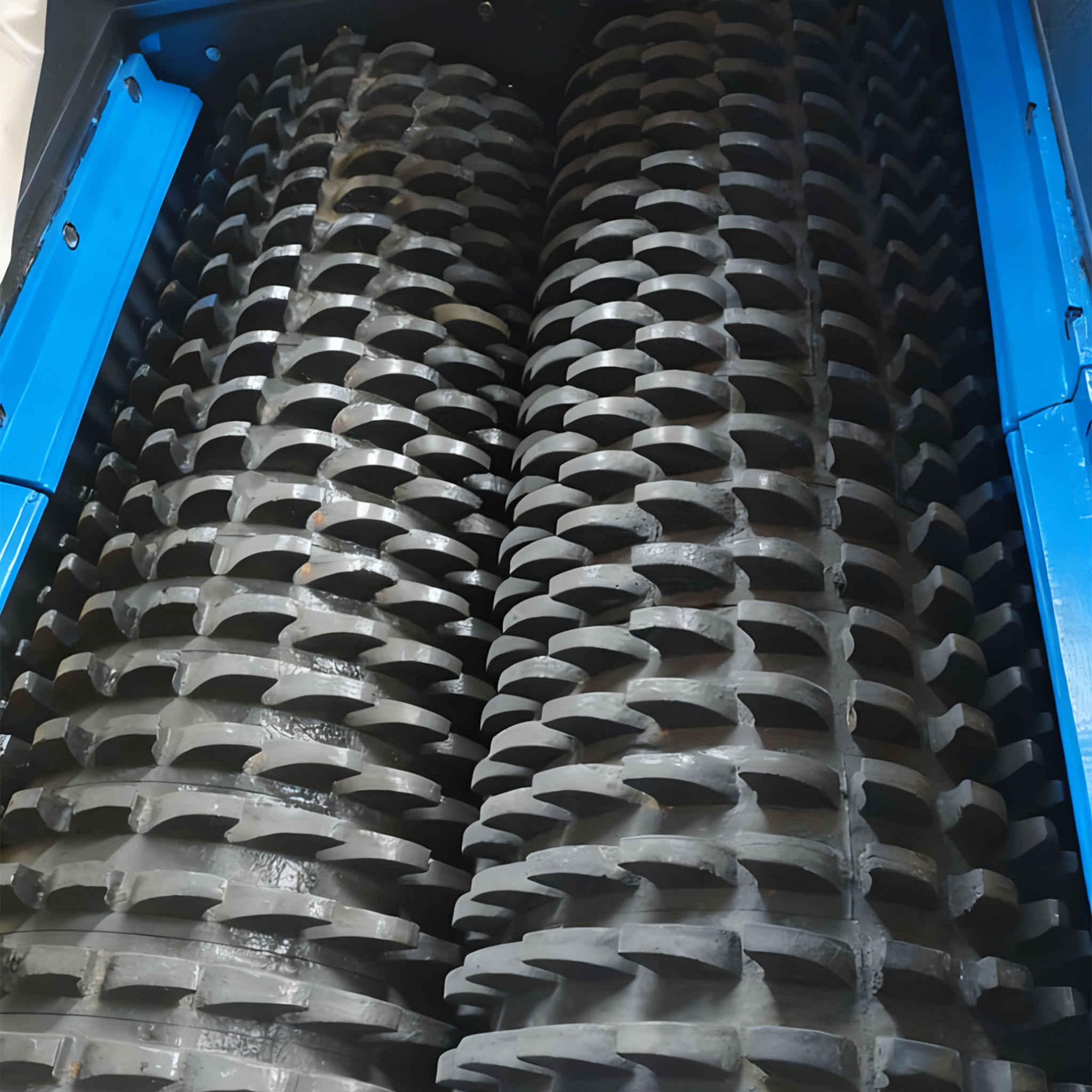

Long Lifespan
Durable tooth disc with repairable design.
- Low-Carbon Treatment – The tooth disc undergoes low-carbon quenching and tempering for enhanced durability.
- Wear Resistance – Improved material properties ensure strong resistance to abrasion.
- Weld Repairable – Severely worn areas can be repaired by welding on a single tooth roller.
- Extended Service Cycle – Repairable design significantly prolongs the overall service life.
Low Energy
Optimized design for selective crushing.
- Optimized Tooth Shape – The tooth roller profile is specially optimized for efficient material engagement.
- Selective Crushing – Enables selective crushing to reduce unnecessary material breakage.
- Reduced Power Consumption – Efficient crushing action significantly lowers overall energy usage.
- Cost Efficient – Lower energy demand helps reduce operating costs.
High Utilization
Less over-crushing, higher material efficiency.
- Reduced Over-Fines – Minimizes excessive powder generation in finished materials.
- Higher Resource Efficiency – Improves resource utilization by approximately 15%–30% compared to other secondary crushers.
- Three-Stage Adjustment – Equipped with three adjustable gap settings between the two tooth rollers.
- Stable Output Size – Uses an eccentric rigid adjustment method to maintain consistent discharge particle size.

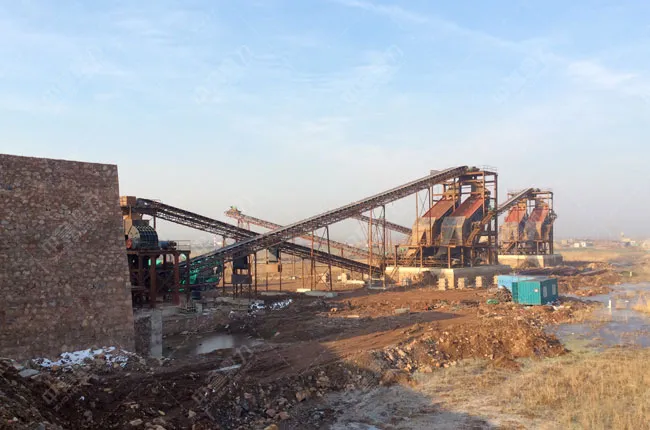

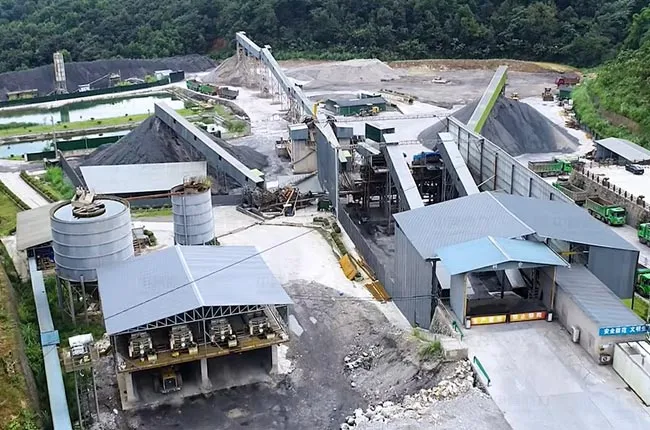

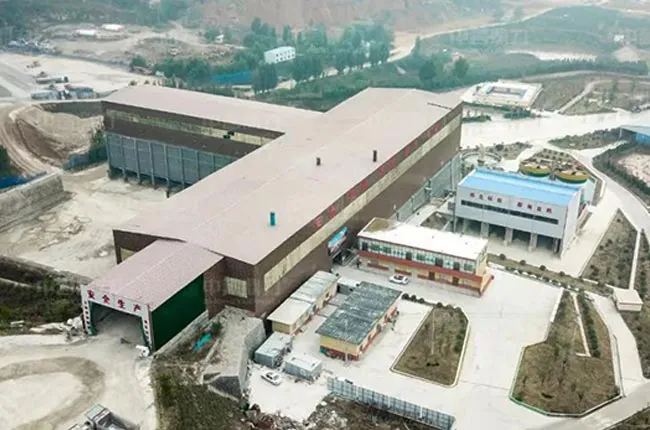

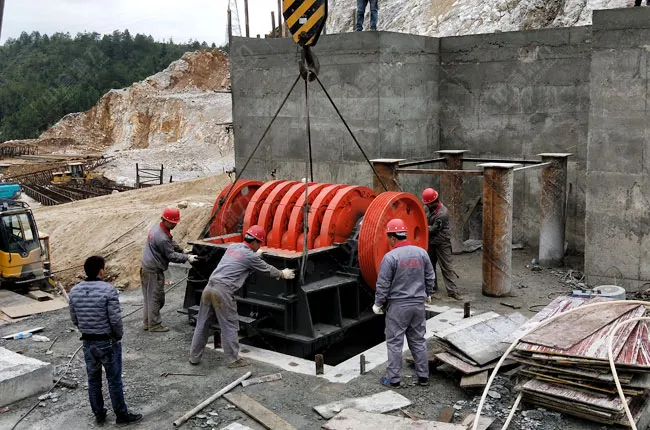

Application Scenarios
Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.
