Gyratory Crusher

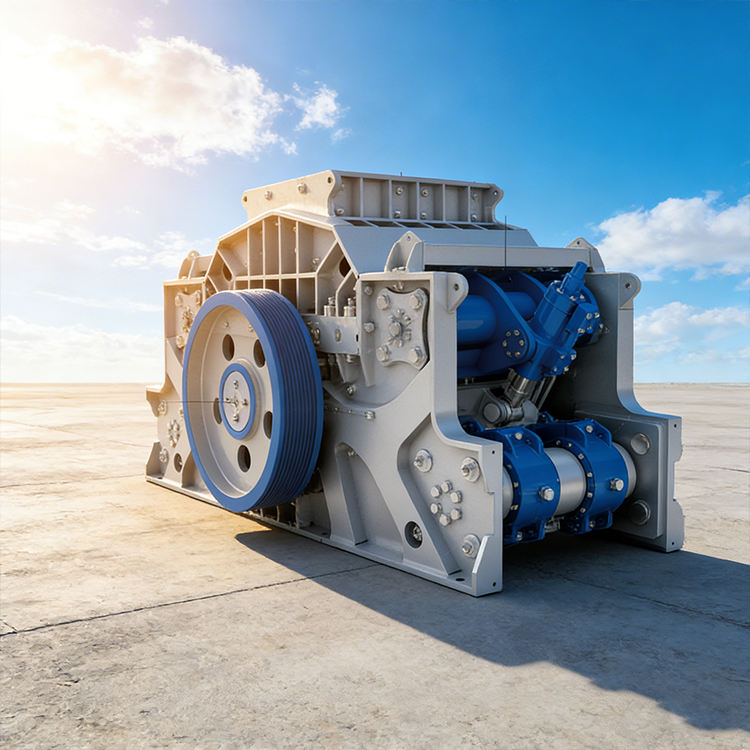

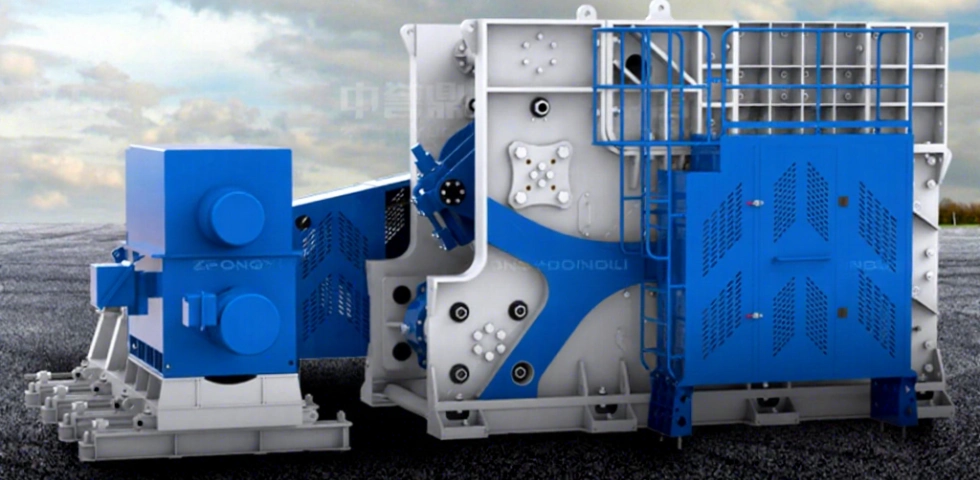

Horizontal Gyratory Crusher

The DLHGC series (coarse crushing) horizontal gyratory crusher is a hard rock crusher product developed by Zhongyu Dingli by combining the crushing concepts and performance advantages of traditional gyratory crushers and jaw crushers. It has multiple advantages such as hard rock crushing, layered crushing, low consumption, selective crushing, stable particle size, quick installation, dual protection, and intelligent control.

Suitable materials:

Iron ore, copper ore, limestone, granite, basalt, diabase, shale, quartz, river pebbles

Processing capacity:

600-3280T/H

Feed size:

≤1200mm

Technical Specifications

Industry-leading performance metrics and capabilities

Item	Specification
Applicable Materials	Various materials with compressive strength ≥320MPa (iron ore, copper ore, limestone, granite, basalt, etc.)
Feed Size	1840mm × 1054mm
Recommended Feed Size	≤400mm
CSS Adjustment Range	50–120mm
Capacity	800–1200t/h
Main Motor Power	800kW
Equipment Weight	114t (including motor and transmission parts)
Crushing Mode	Extrusion
Discharge Mode	Fixed

Machine Details

Precision-engineered components for unmatched performance

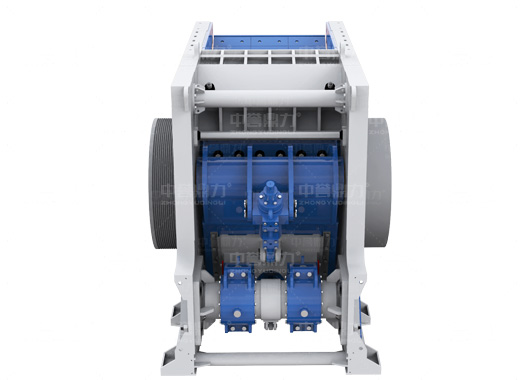

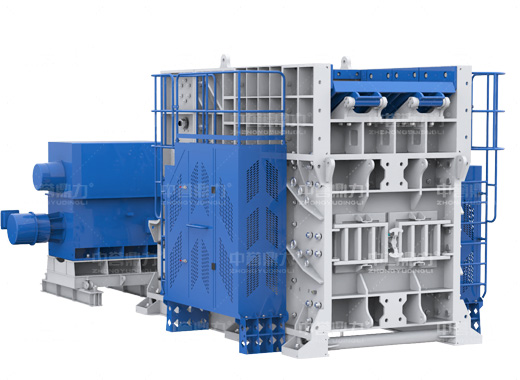

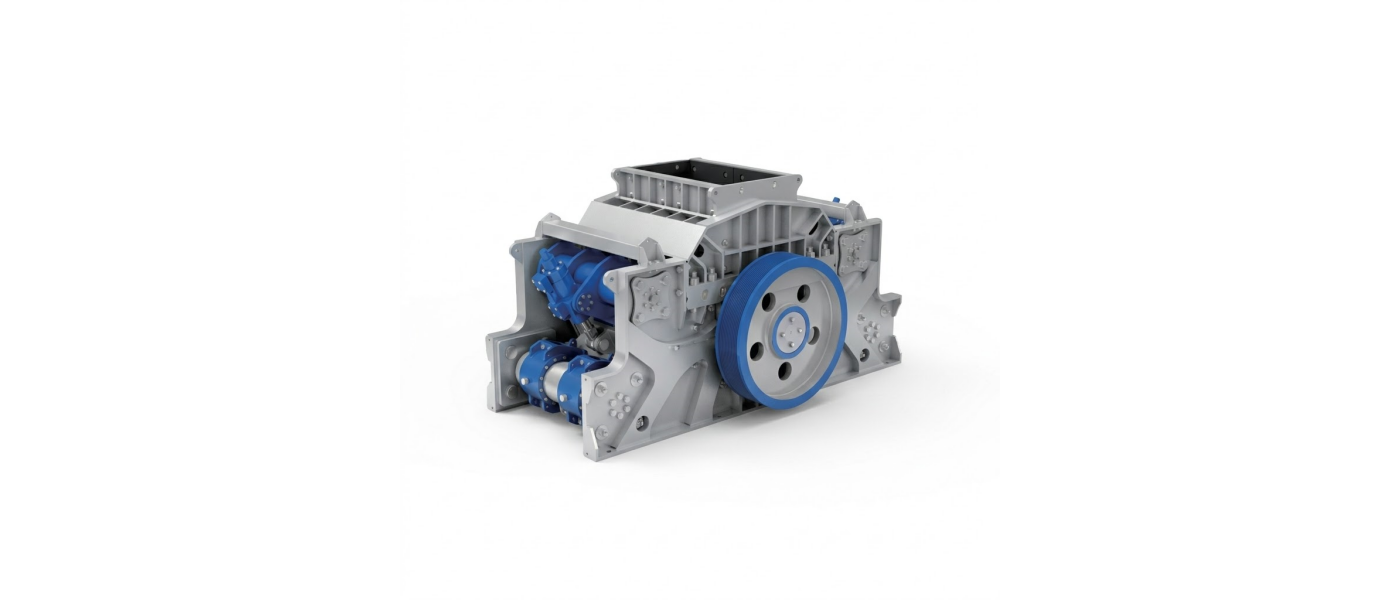

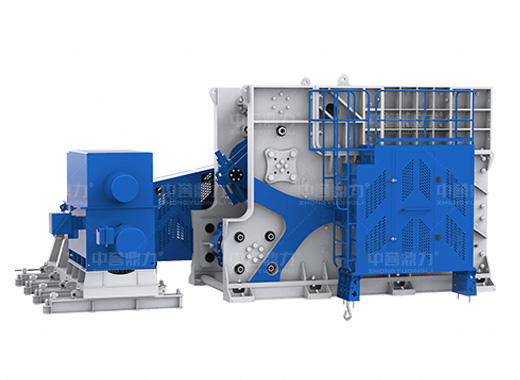

Horizontal Gyratory Crusher

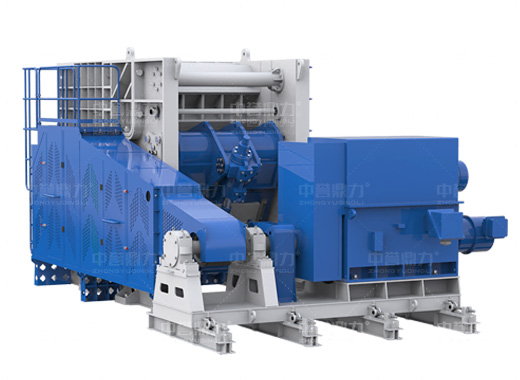

Hydraulic Adjustment and Overload Protection Device

Automatically adjusts the discharge opening and handles iron tramp protection, with automatic cavity cleaning and reset—no manual operation required.

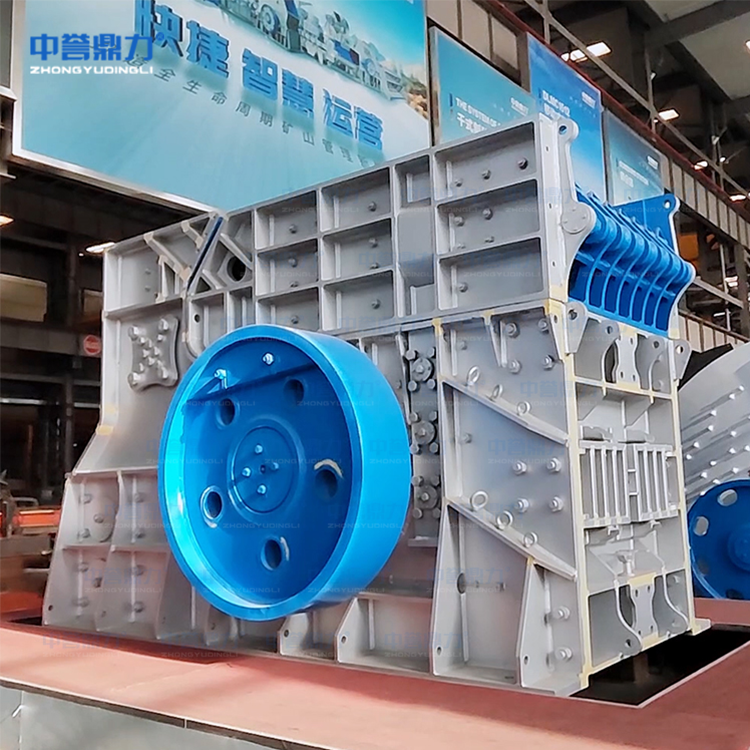

Gyratory Roller Assembly

The gyratory crusher operates at low speed, and its large rotational inertia results in lower energy peaks during operation, enabling more efficient performance and greater stability during startup and shutdown.

Core Advantages

Cutting-edge technology that sets the industry standard

Selective Crushing

Long wear life with higher efficiency.

Selective Function – Separates qualified raw ore before entering the crushing chamber, reducing unnecessary repeated crushing.
Lower Power Consumption – Minimizes power usage and wear on components by decreasing redundant crushing.
Higher Utilization – Improves crusher efficiency and overall equipment utilization rate.
Even Wear – The gyratory crushing roller generates reverse self-rotation during operation, ensuring more uniform wear of the concave liner.
Extended Service Life – Prevents premature replacement caused by localized wear, significantly extending the lifespan of wear parts.

Gyratory Crusher

Lower investment with superior mining advantages.

Reduced Feeding Height – Ore feeding height is approximately 50%–60% of traditional gyratory crushers.
Lower Infrastructure Cost – Foundation construction costs are about 60%–70% compared to conventional models.
Lower Site Investment – Significantly reduces overall investment costs for large-scale mining crushing sites.
Ideal for Underground Mining – Offers outstanding advantages for underground crushing operations.
Steel Structure Friendly – Balanced gyratory roller unit design allows easier installation on steel structures.

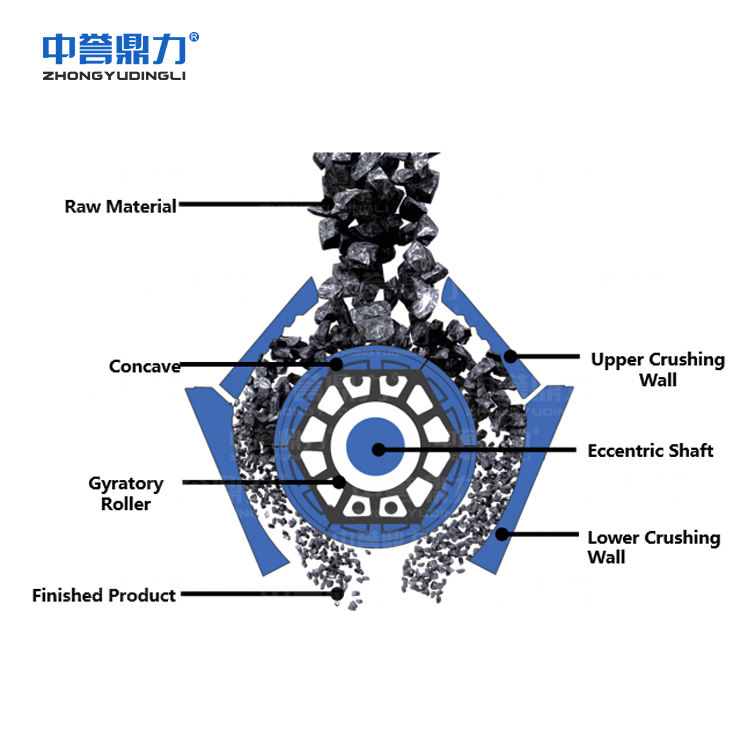

Laminated Crushing

Large reduction ratio with constant cavity design.

Extended Crushing Chamber – The chamber length is 1.3–1.5 times longer than that of traditional gyratory crushers.
Multi-Layer Crushing – Materials undergo multiple levels of crushing within the chamber for improved efficiency.
Higher Reduction Ratio – Achieves a larger crushing ratio for better size reduction performance.
Constant Cavity Design – The concave and mantle wear proportionally and evenly, maintaining a consistent cavity shape during operation.

Dual Protection

Advanced overload safety control system.

Pressure Monitoring – Built-in pressure sensors detect overload conditions in real time.
Displacement Detection – Displacement sensors provide additional protection for accurate system response.
Stable Operation – Hydraulic safety cylinders ensure stable and reliable performance during overload.
Auto Adjustment – Enables discharge opening adjustment and automatic reset after overload removal.

Selective Crushing

Gyratory Crusher

Laminated Crushing

Dual Protection

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

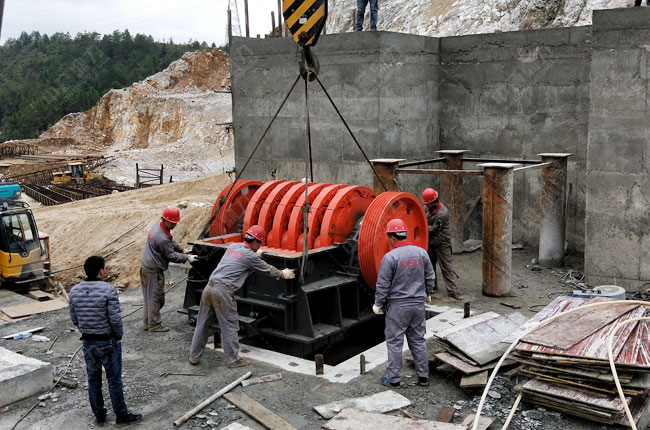

Guizhou 4,000 t/d Sand & Gravel Plant

The 4,000 tons per day sand and gravel production line is a newly built project designed to produce aggregates such as 12, 13, and 05 stone. Construction started in October 2017, with a total construction period of 45 days.

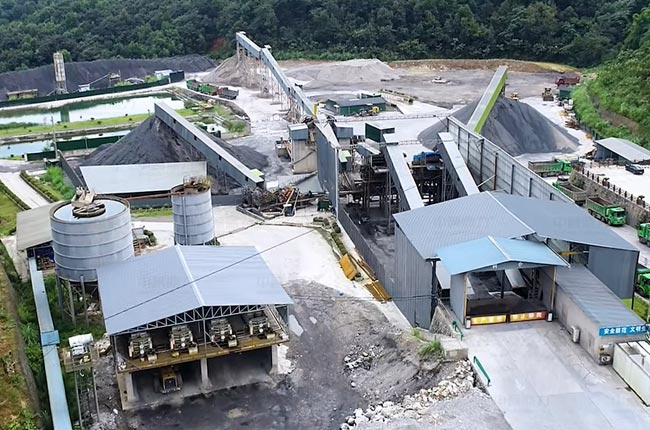

Hubei 10 Million Tons Aggregate Production Line

The large-scale aggregate production line in Yichang, Hubei has a total investment of RMB 60 million and covers an area of 53.73 mu (≈3.58 hectares). The project adopts a fully enclosed environmentally friendly design and is equipped with our DLPCZ1815 heavy hammer impact crusher, DLPC1220 shaping crusher, and other mining equipmen

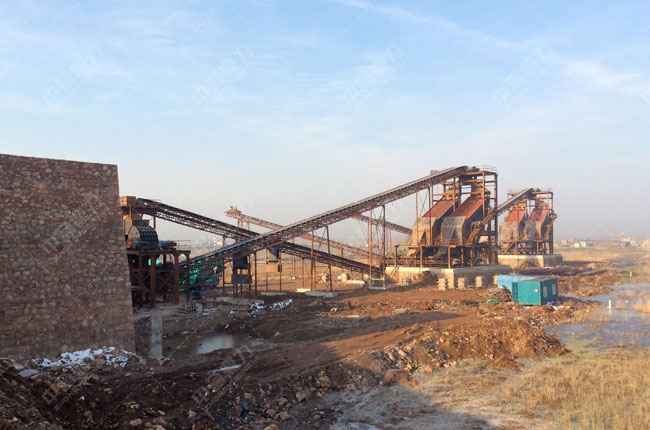

Anhui 1,000 TPH Aggregate Production Line

This project is a newly constructed large-scale aggregate production line completed and put into operation in 2017. The designed capacity is 1,000 tons per hour, with a maximum output reaching 1,500 tons per hour. The production line mainly processes limestone into 0–5 mm, 12 mm, and 13 mm aggregates.

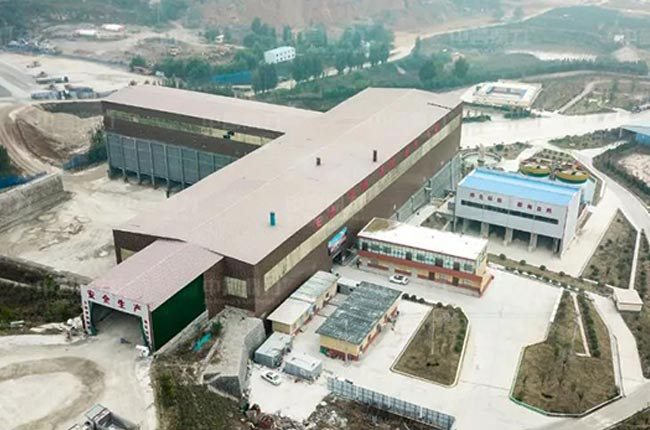

Shandong Shuifa Wet Process Manufactured Sand Production Project

This project adopts a wet sand-making process, which provides excellent dust suppression. Soil and stone powder are washed away during production, resulting in high-quality finished aggregates and manufactured sand.
