Chongqing's 5 million-ton-per-year limestone building aggregate expansion project

Project Description:

This 5 million-ton-per-year building aggregate project has a total investment of 10 million yuan, with 1.5 million yuan allocated to environmental protection. It is an expansion project. The original 500,000-ton-per-year stone processing production line mainly produces crushed stone aggregates in sizes such as 0-5mm stone powder, 5-10mm, 10-20mm, 20-30mm, and 30-40mm.

Project Overview：

– Project Address: Fuling District, Chongqing

– Processed Material: Limestone

– Output: 5 million tons per year

– Project Requirements: 0~5mm, 5~10mm, 10~20mm, 20~30mm, 30~40mm, etc.

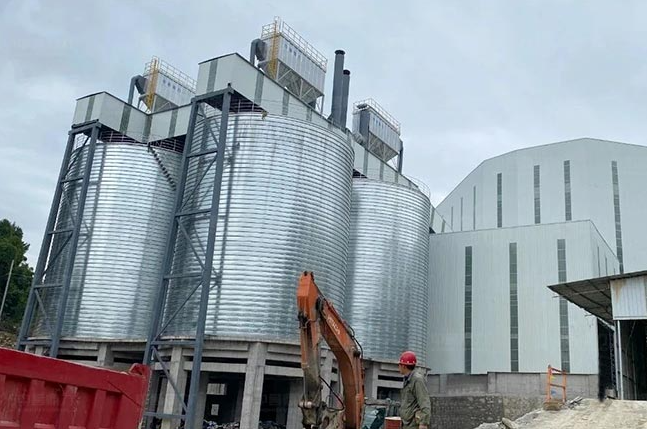

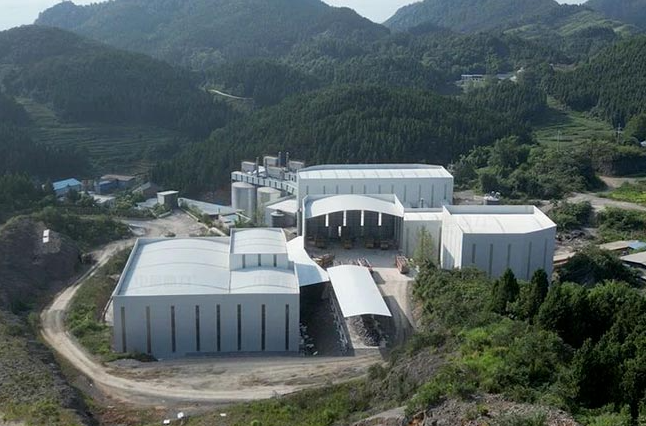

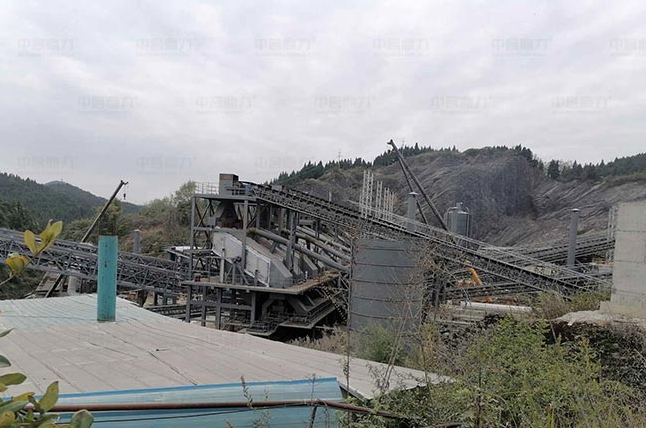

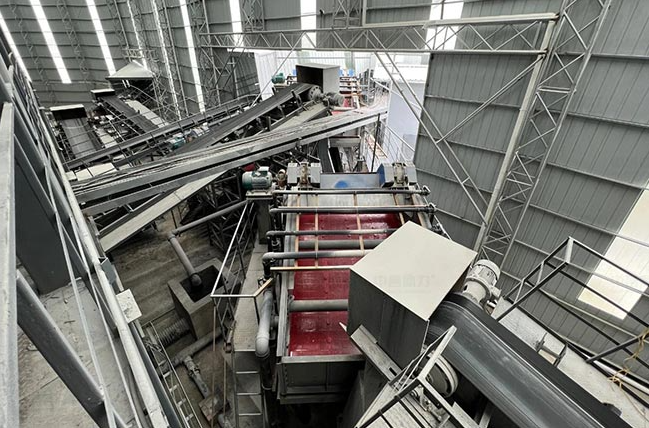

Case Study Site：

Process Configuration:

This project has a total investment of 10 million yuan, with 1.5 million yuan allocated to environmental protection. It is an expansion project. The existing 500,000 tons/year stone processing production line mainly produces 0-5mm stone powder, 5-10mm crushed stone, 10-20mm crushed stone, 20-30mm crushed stone, and 30-40mm crushed stone. Equipment includes a ZGC1138 feeder, a PE750×1060 jaw crusher, an XPC1012 hammer crusher, a 3vRz460 vibrating screen, and a 2vRz2460 vibrating screen.

The 4.5 million tons/year stone processing production line mainly produces 0-3mm dry sand, 5-22mm crushed stone, 0-3mm manufactured sand, 5-26mm shaped crushed stone, 0-5mm soil sand, and 0-0.075mm powder. Equipment configuration is as follows:
