YKZ Vibrating Screen

Zhongyu Dingli vibrating screens come in two series, YKZ and YKQ. In addition to material screening in quarries, they can also be used in building materials, chemical and other industries. They adopt flange-type vibrators with adjustable amplitude and high-manganese steel woven screens for higher stability. YK vibrating screens have a full range of models, and different mesh sizes can be selected according to different needs, producing multiple specifications of finished materials at the same time.
Applicable Materials:
Screening of granular and powdery materials in mining, sand and gravel, chemical, metallurgical, mining, building materials, and coal industries.
Processing Capacity:
60-800 t/h
Feed Size:
≤150 mm
YKZ Vibrating Screen

Technical Specifications

Core technical specifications and performance indicators

YKZ Vibrating Screen Technical Parameters

Model Deck Layers Vibrator Screen Area (m²) Angle (°) Amplitude (mm) Capacity (t/h) Motor Power (kW, 6-pole)
DL2YKZ3070 2 JF200 21 20 6–9 100–600 45
DL2YKZ3080 2 JF200 24 20 6–9 100–600 45
DL2YKZ3080S 2 JF150×2 28.8 20 6–9 200–900 45×2
DL3YKZ3070S 3 JF150×2 21 20 6–9 100–500 30×2
DL3YKZ3080S 3 JF150×2 24 20 6–9 100–500 30×2
DL3YKZ3680S 3 JF200×2 28.8 20 6–9 200–800 55×2

YKZ Vibrating Screen Technical Parameters (XT / XS Series)

Model Deck Layers Vibrator Screen Area (m²) Angle (°) Amplitude (mm) Capacity (t/h) Drive Connection Type Motor Model
DL2YKZ2470XT-15 2 DLXJT400 16.8 20 6–9 60–350 Direct Motor Drive Y225M-6 (30 kW)
DL2YKZ3070XST-15 2 DLXJT500 21 20 6–9 100–600 Transmission Assembly Y180L-4 ×2 (22 kW ×2)
DL2YKZ3080XST-15 2 DLXJT500 24 20 6–9 100–600 Transmission Assembly Y180L-4 ×2 (22 kW ×2)
DL2YKZ3680XS-15 2 DLXJT150×2 28.8 20 6–9 200–900 Transmission Assembly Y250M-4 ×2 (45 kW ×2)
DL3YKZ2470XT-15 3 DLXJT400 16.8 20 6–9 300–600 Direct Motor Drive Y250M-6 (37 kW)
DL3YKZ3070XST-15 3 DLXJT700 21 20 6–9 100–500 Transmission Assembly Y200L-4 ×2 (30 kW ×2)
DL3YKZ3080XST-15 3 DLXJT700 24 20 6–9 100–500 Transmission Assembly Y200L-4 ×2 (30 kW ×2)
DL3YKZ3680XS-15 3 DLXJT220×2 28.8 20 6–9 200–800 Transmission Assembly Y250M-4 ×2 (55 kW ×2)

Machine Details

Detailed introduction to the double-chamber hard rock crusher structure and design

YKZ Vibrating Screen Structure and Principle

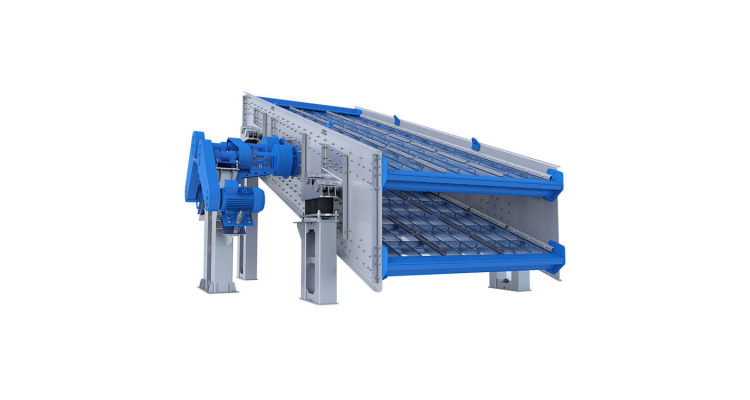

YKZ Vibrating Screen Structure and Principle

YKZ Vibrating Screen Structure and Principle

 This screening machine mainly consists of a screen box, screen frame, screen mesh, vibrating motor, motor base, damping springs, and support frame. The linear vibrating screen is driven by two vibrating motors. When the two motors rotate synchronously and in opposite directions, the excitation forces generated by their eccentric blocks cancel each other out in the direction parallel to the motor axis and combine into a resultant force in the direction perpendicular to the motor axis. Therefore, the movement trajectory of the screening machine is linear. The two motor shafts have an angle relative to the screen surface. Under the combined action of the excitation force and the material's own weight, the material is thrown up and jumps forward in a straight line on the screen surface, thereby achieving the purpose of screening and grading the material.

Core Advantages

Core advantages of the double-chamber hard rock crusher design

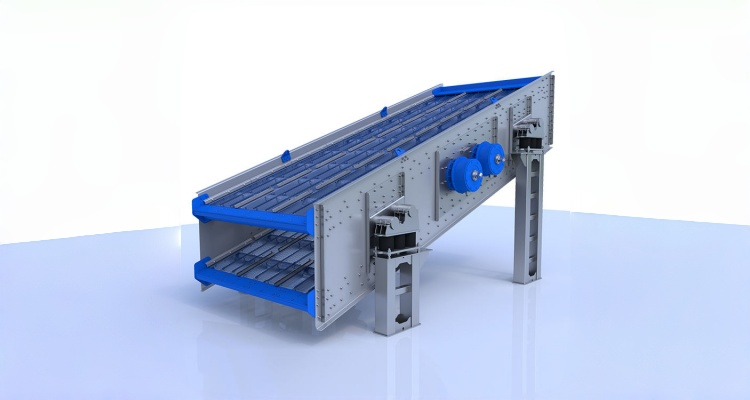

ykz vibrating screen-0

Precision Process

Stable and reliable screening operation.

  • Precision Machining – The vibrating screen body is processed on a gantry boring and milling machine, ensuring accurate milling and boring on both sides.
  • Accurate Assembly – This process ensures precise alignment of the exciter during installation.
  • Flexible Coupling – Uses a flexible coupling to connect the exciter and motor, reducing motor impact.
  • Stable Material Flow – During operation, the vibrating material flow is continuous, uniform, and easy to control.

Strong Adaptability

Reliable performance in various working conditions.

  • Stable Amplitude – Operates in a resonance state, maintaining stable vibration amplitude even with load fluctuations.
  • Wide Material Adaptation – Suitable for various ores and rocks, including sticky materials.
  • Harsh Environment Ready – Can operate effectively in dusty or high-moisture working environments.
  • Alloy Steel Trough – The feeding trough is made of alloy steel plates for enhanced durability.
  • High Resistance – Capable of handling high-temperature, highly abrasive, and corrosive materials.

Adjustable Amplitude

Flexible vibration control for output adjustment.

  • Flexible vibration control for output adjustment.
  • Adjustable Eccentric Block – Vibration intensity can be adjusted by changing the angle of the eccentric block.
  • Output Control – Allows flexible adjustment of production capacity according to operational needs.

Stable Operation

Precision machining ensures smooth running.

  • Precision Processing – The vibrating screen body is machined on a gantry boring and milling machine with both sides precisely milled and bored.
  • Precision Processing – The vibrating screen body is machined on a gantry boring and milling machine with both sides precisely milled and bored.
  • Flexible Coupling – The exciter is flexibly connected to the motor through a flexible coupling, reducing motor impact.
  • Smooth Running – Minimizes vibration shock and ensures stable, reliable operation.
Precision Process
Strong Adaptability
Adjustable Amplitude
Stable Operation

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

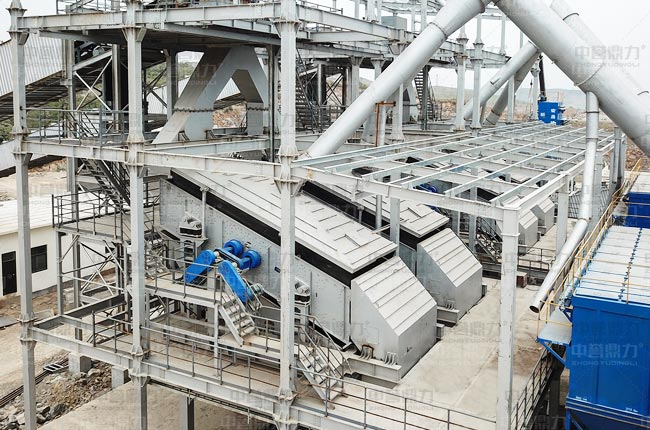

Tianli Building Materials 2,500 TPH Aggregates Production Line

Tianli Building Materials 2,500 TPH Aggregates Production Line

The entire production line features a well-designed and compact layout. Finished aggregates have excellent particle shape and meet downstream construction requirements. The quantitative conveyor combined with bulk loading system significantly improves truck loading efficiency and reduces labor costs.

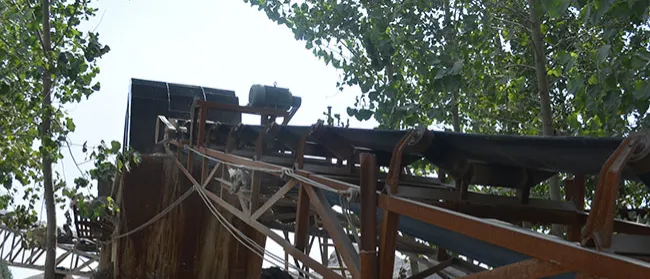

 Henan Province, 2500-ton-per-hour sand and gravel production line

Henan Province, 2500-ton-per-hour sand and gravel production line

At the customer’s production site, the raw materials used for sand making are mainly large-size aggregates. These stones are first crushed again to reduce their size and then processed through the sand making system.

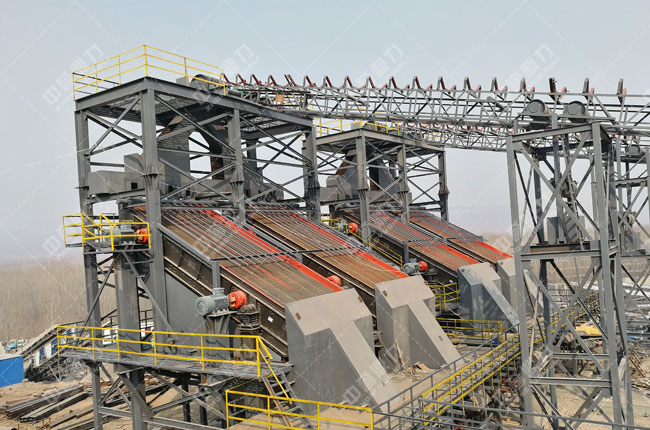

300 TPH Sand Production Line in Weihui, Xinxiang, Henan

300 TPH Sand Production Line in Weihui, Xinxiang, Henan

In the sand production line, the material first passes through the crusher for primary crushing, producing preliminary aggregates. These materials are then processed by the dual-rotor sand making machine for shaping and further crushing, resulting in finished sand with excellent particle shape.

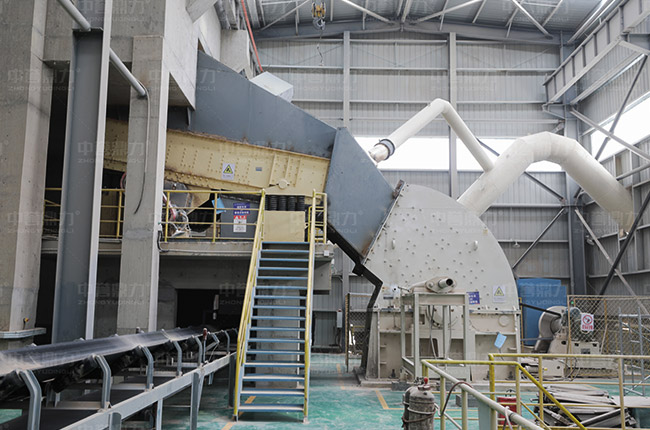

 Hengyuan Mining's Environmentally Friendly Production of Sand and Gravel Aggregates

Hengyuan Mining's Environmentally Friendly Production of Sand and Gravel Aggregates

Hebi Hengyuan Mining Group Co., Ltd. (hereinafter referred to as “Hengyuan Mining”) is a wholly owned subsidiary of Hebi Investment Group Co., Ltd..
