Impact crusher

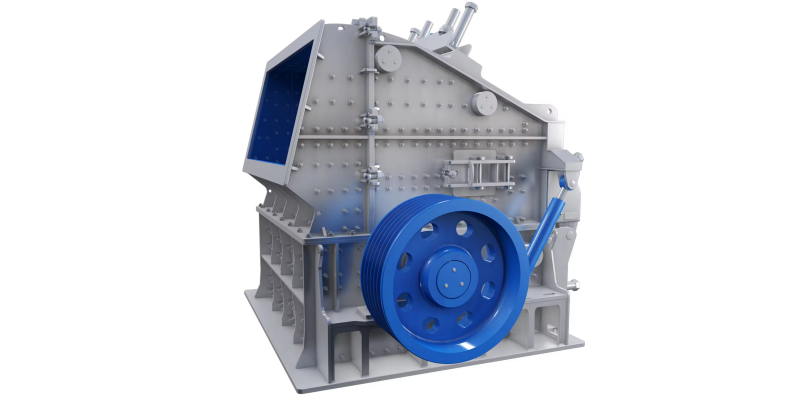

Limestone Impact Stone Crusher

The DLHCS impact crusher is an improvement on the traditional impact crusher developed by the Zhongyu Dingli technical team. It is used as a secondary crusher in stone production lines, primarily relying on impact energy to crush materials. The equipment features a simple structure, uniform output particle shape, hydraulic control, easy replacement of wearing parts, and a long rotor service life.

Applications:
Mining, river stone processing, construction waste treatment, etc.
Processing Capacity:
250-750T/H
Feed Size:
≤300mm
Limestone Impact Stone Crusher

Technical Specifications

Industry-leading performance metrics and capabilities
Model Rotor Length × Diameter (mm) Motor Power (kW) Processing Capacity (t/h)
DLHCS1315 1300×1500 250–315 250–320
DLHCS1320 1300×2000 315 / (200×2) 300–400
DLHCS1520 1500×2000 (220×2 / 50) ×2 400–500
DLHCS1523 1500×2300 630 400–600
DLHCS1630 1600×3000 800 650–750

Machine Details

Precision-engineered components for unmatched performance

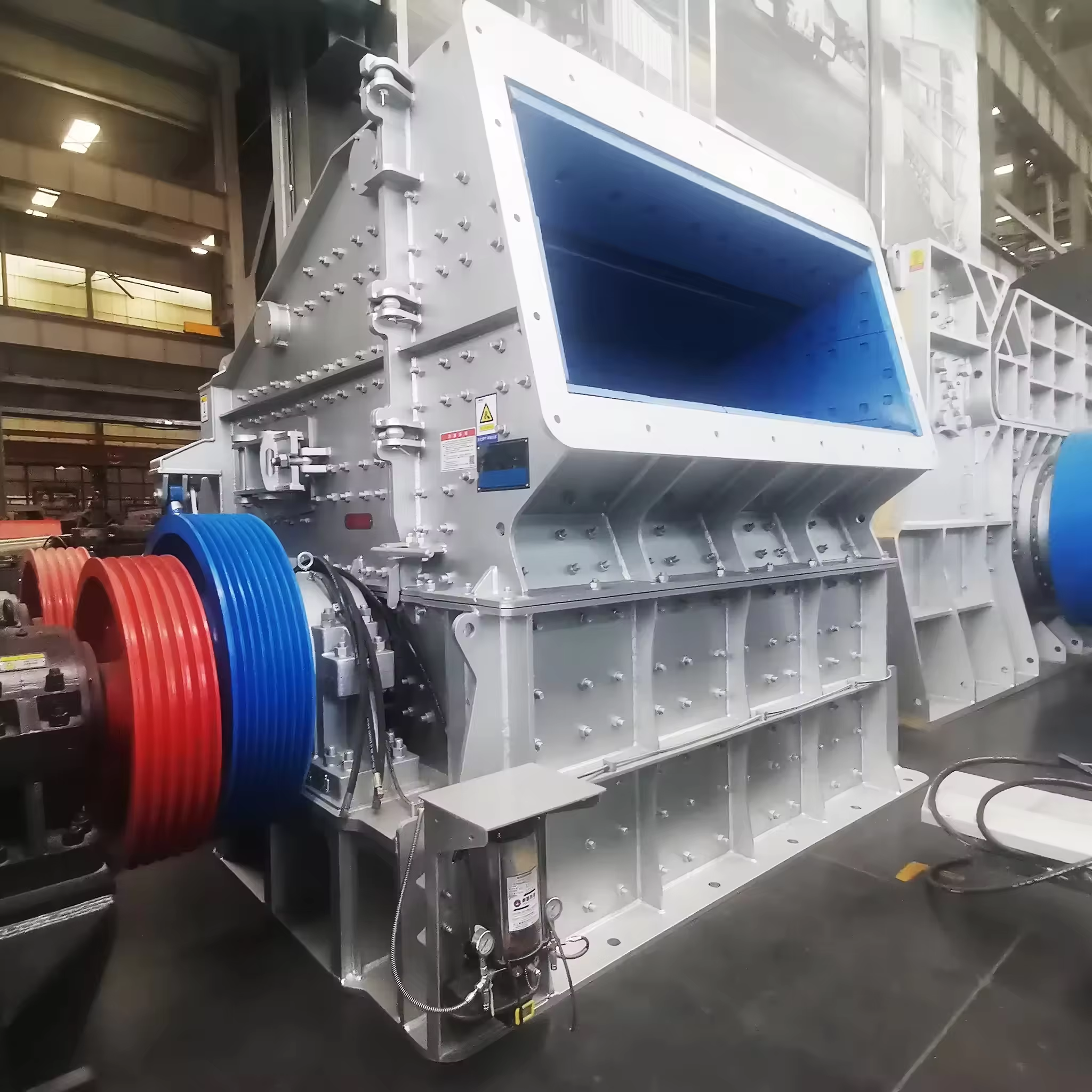

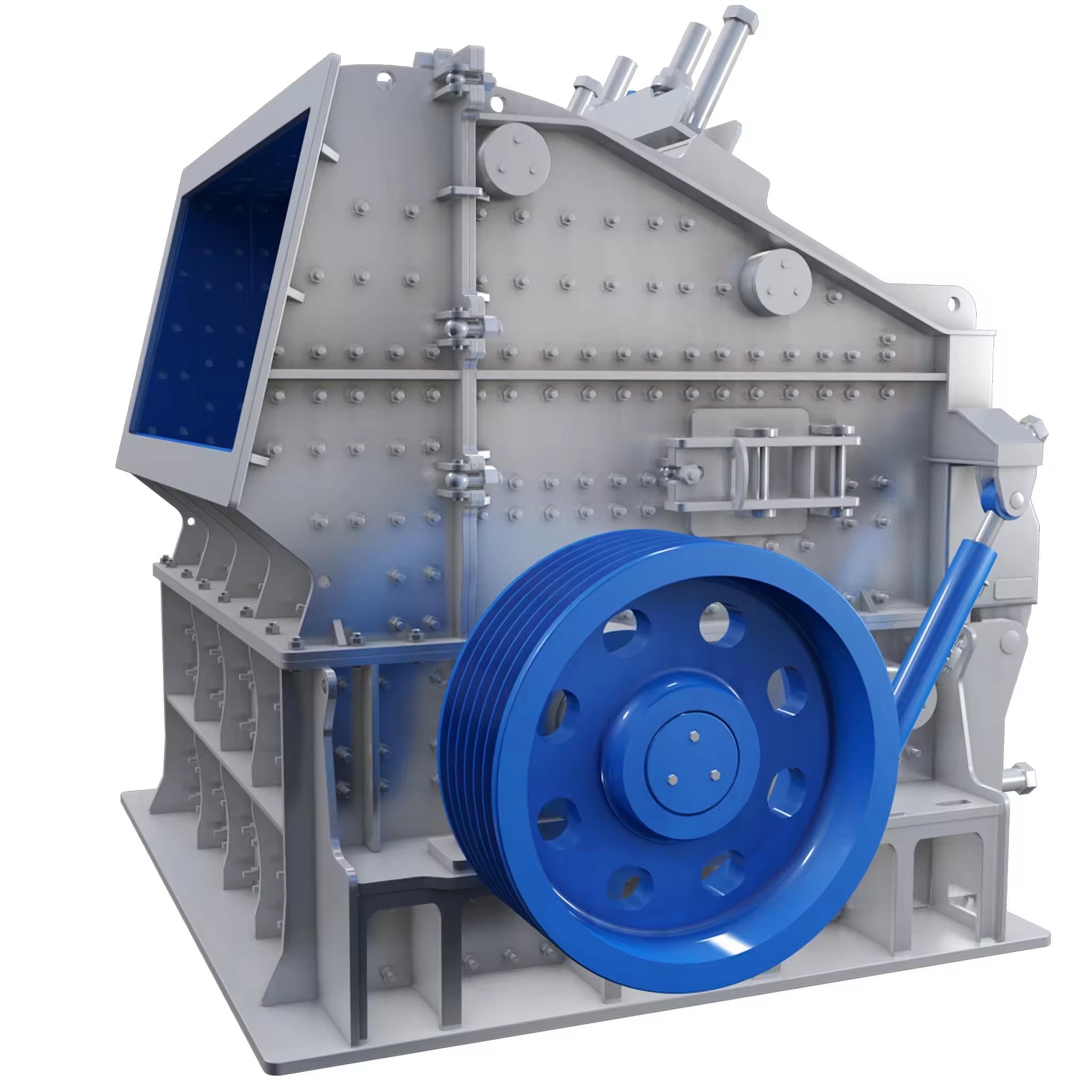

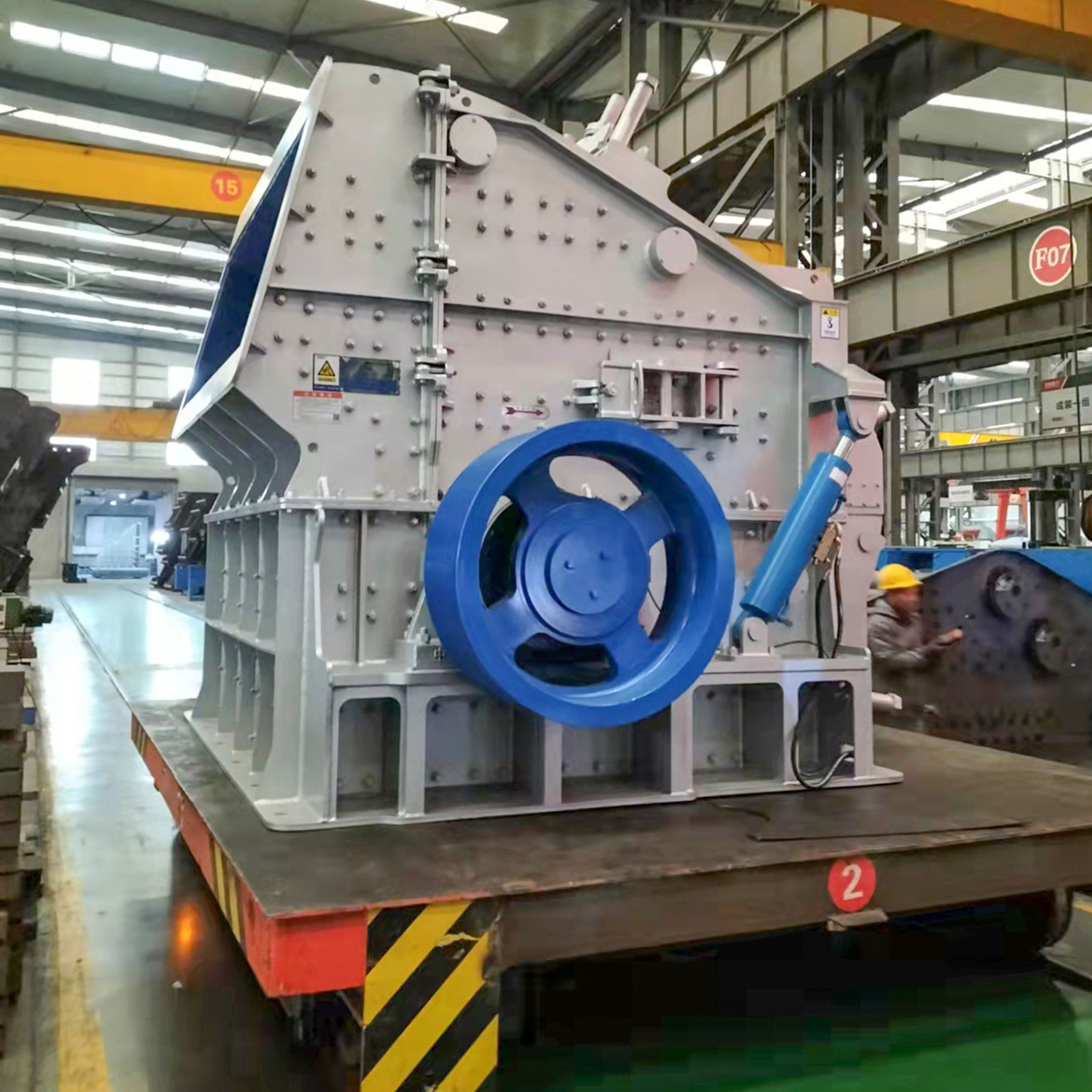

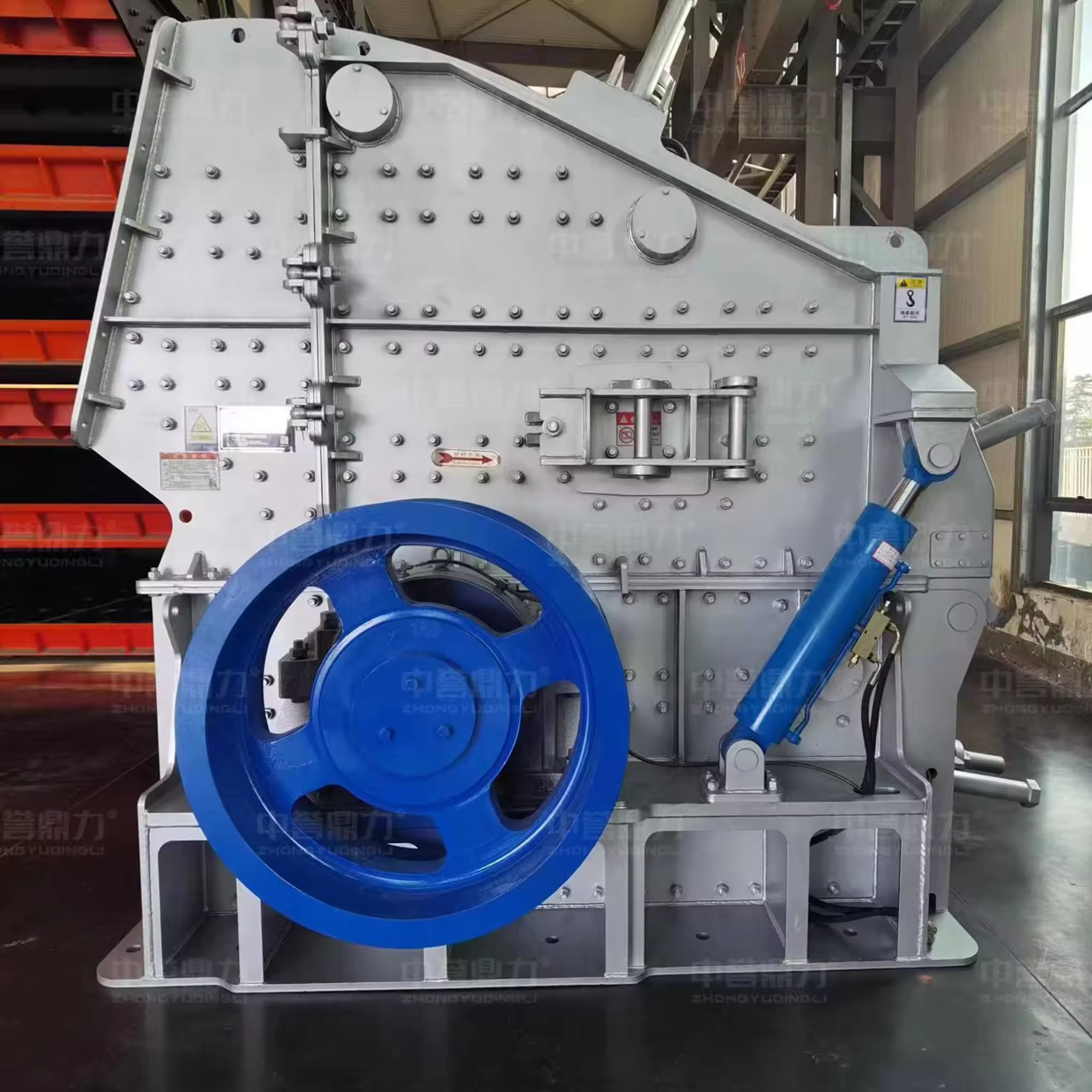

Limestone Impact Stone Crusher

Limestone Impact Stone Crusher

Limestone Impact Stone Crusher

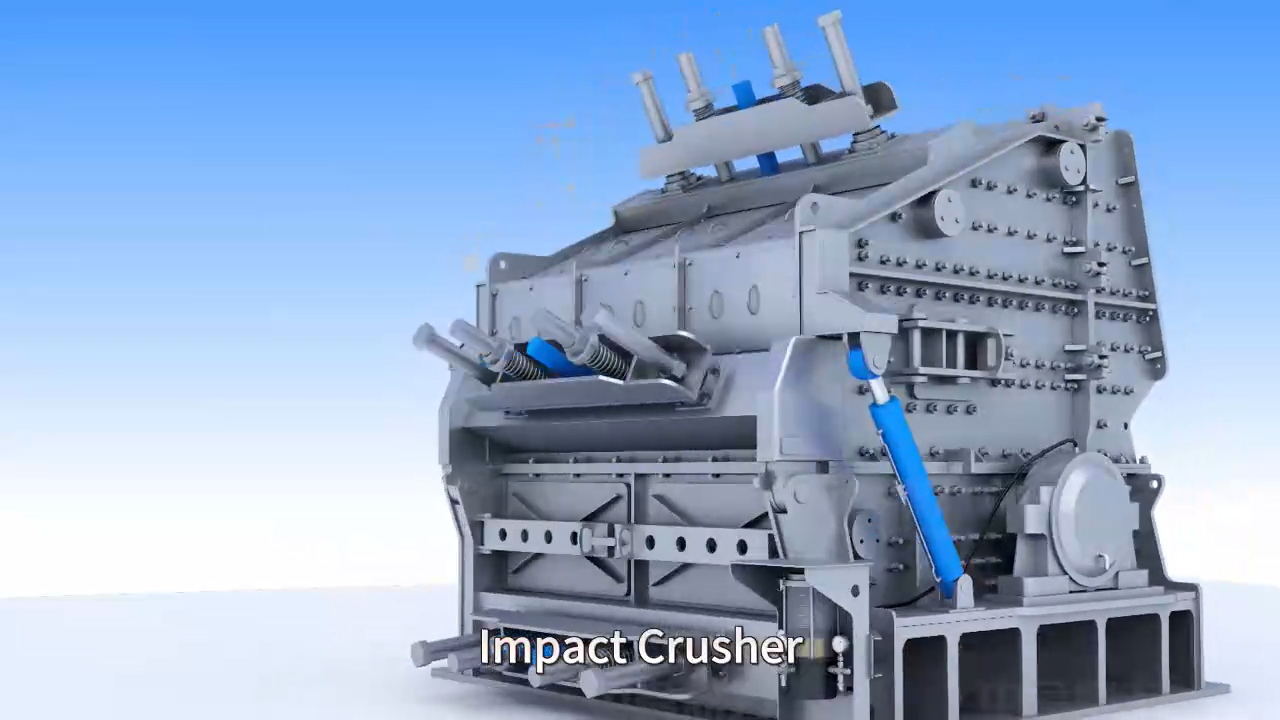

The DLHCS impact crusher operates on the principle of impact energy crushing. The rotor rotates at high speed driven by a motor. Material enters the chamber and falls into the hammer's working area. Driven by the rotor, the hammer rotates rapidly, impacting and crushing the material. The material is then thrown against the impact liner on the inner wall of the chamber and rebounds onto the hammer. Simultaneously, the material collides with each other within the chamber. After multiple crushing processes, the material meeting the finished product requirements is discharged from the outlet.

Core Advantages

Cutting-edge technology that sets the industry standard

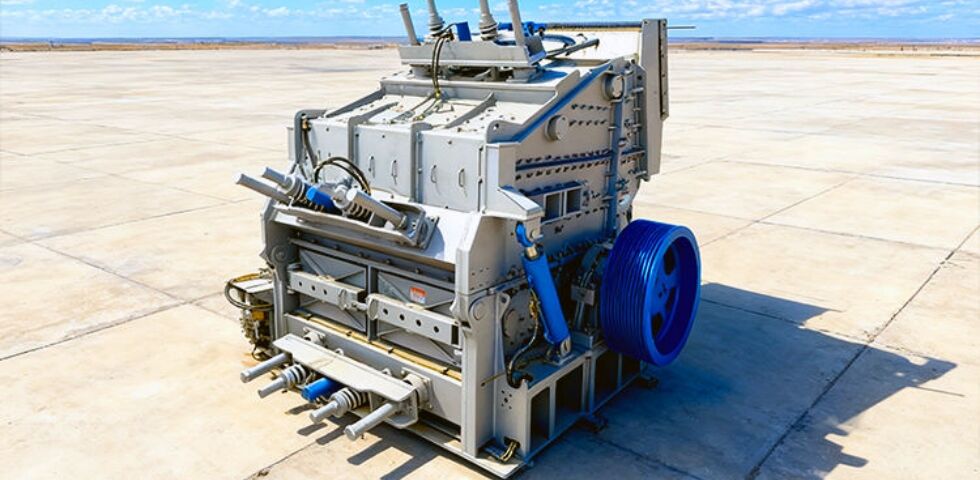

limestone impact stone crusher-0

Impact Principle

High-speed impact crushing for uniform output.

  • Impact Energy Crushing – The DLHCS impact crusher mainly utilizes impact energy to crush materials efficiently.
  • High-Speed Rotor – Driven by the motor, the rotor rotates at high speed, generating strong impact force.
  • Hammer Impact – Materials entering the chamber fall into the hammer working area and are crushed by high-speed rotating blow bars.
  • Repeated Impact – Crushed materials are thrown against the impact liners and rebound back to the hammers for further crushing.
  • Multiple Collisions – Materials collide with each other inside the chamber and are discharged once reaching the required finished size.

Large Reduction

Powerful rotor for superior crushing performance.

  • Heavy-Duty Rotor – Reinforced rotor design with a thick and sturdy blow bar holder ensures strong durability.
  • High Inertia Force – Increased rotational inertia delivers greater impact force for a larger reduction ratio.
  • Better Particle Shape – Produces well-shaped finished products with consistent quality.

Stable Operation

  • Fine Machining – The rotor undergoes overall precision machining for enhanced accuracy.
  • Dynamic Balancing – Balance calibration ensures smoother operation and reduced vibration.

Long Service Life

Hydraulic opening for quick servicing.

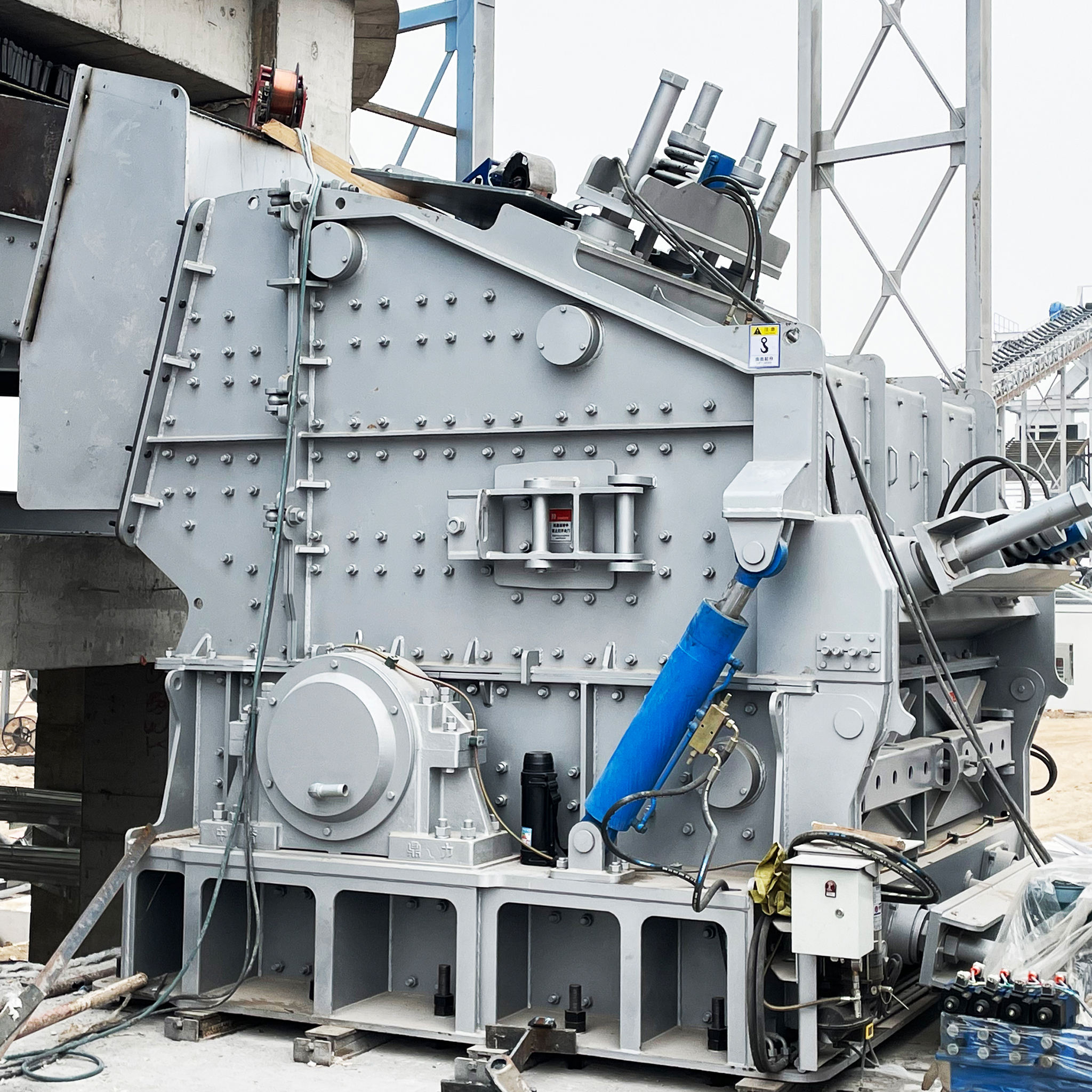

  • Hydraulic Chamber Opening – Equipped with a hydraulic opening device for fast and convenient maintenance.
  • Quick Part Replacement – Simplifies the replacement of wear parts and reduces downtime.

Enhanced rotor protection design.

  • Alloy Protective Ring – The rotor is fitted with an alloy protection ring to reduce material impact damage.
  • Easy Replacement – Protective components are easy to replace, lowering maintenance costs.
  • Extended Rotor Life – Minimizes wear on the rotor body, significantly prolonging service life.

Adjustable Output

Flexible control of discharge size and shape.

  • Gap Adjustment – By adjusting the clearance between the impact rack and the rotor, the discharge particle size can be precisely controlled.
  • Shape Optimization – Ensures better particle shape through accurate setting of the impact distance.

Timed and measured oil supply system.

  • Automatic Oil Supply – The automatic lubrication device provides oil at fixed intervals and in precise quantities.
  • Improved Bearing Protection – Ensures proper lubrication of bearings for stable operation.
  • Lower Maintenance Cost – Reduces manual maintenance workload and operating expenses.
Impact Principle
Large Reduction
Long Service Life
Adjustable Output

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.
Guizhou 4,000 t/d Sand & Gravel Plant

Guizhou 4,000 t/d Sand & Gravel Plant

The 4,000 tons per day sand and gravel production line is a newly built project designed to produce aggregates such as 12, 13, and 05 stone. Construction started in October 2017, with a total construction period of 45 days.

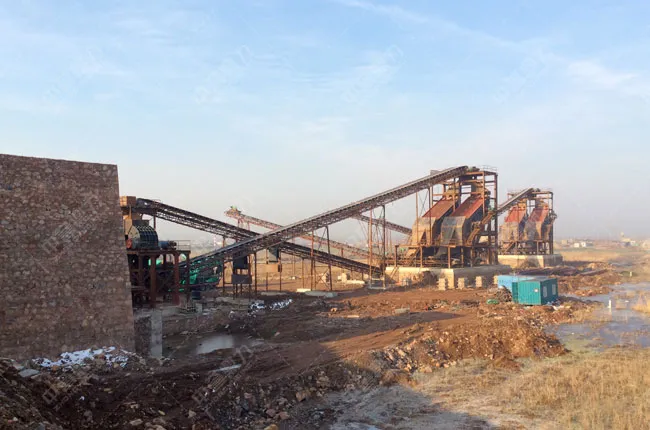

 Anhui 1,000 TPH Aggregate Production Line

Anhui 1,000 TPH Aggregate Production Line

This project is a newly constructed large-scale aggregate production line completed and put into operation in 2017. The designed capacity is 1,000 tons per hour, with a maximum output reaching 1,500 tons per hour.

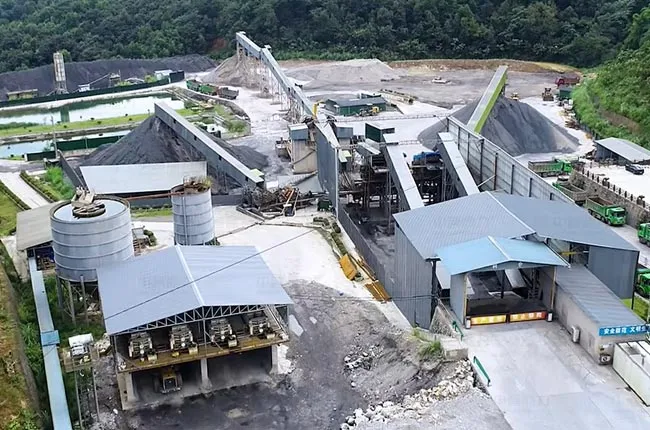

Hubei 10 Million Tons Aggregate Production Line

Hubei 10 Million Tons Aggregate Production Line

The large-scale aggregate production line in Yichang, Hubei has a total investment of RMB 60 million and covers an area of 53.73 mu (≈3.58 hectares). The project adopts a fully enclosed environmentally friendly design and is equipped with our DLPCZ1815 heavy hammer impact crusher, DLPC1220 shaping crusher, and other mining equipment.

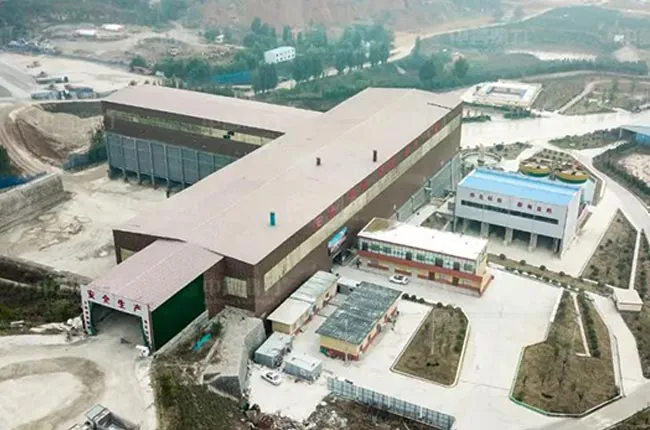

 Shandong Shuifa Wet Process Manufactured Sand Production Project

Shandong Shuifa Wet Process Manufactured Sand Production Project

To reduce water consumption, Shandong Shuifa Ecological Environment Industry Development Co., Ltd. implemented a closed-loop water circulation system and a wastewater treatment system, enabling efficient water recycling.
