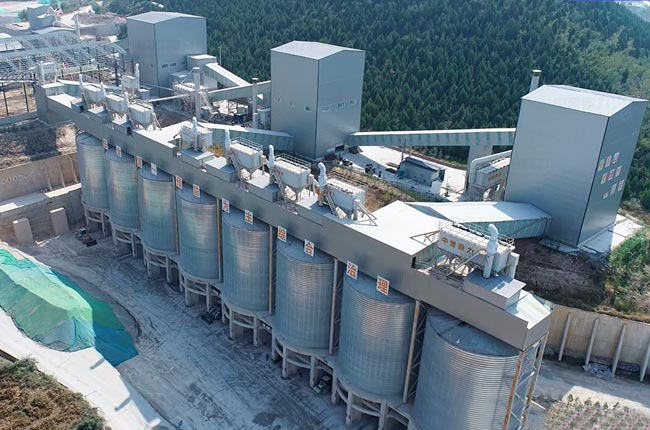

The project will construct two 900,000-ton aggregate production lines (including one manufactured sand processing production line and two washed sand processing production lines) to form an annual aggregate production line with an annual output of 1.8 million tons, including 1.1 million tons of limestone aggregate, 300,000 tons of manufactured sand, and 400,000 tons of washed sand.
Processed material: Limestone
Output: 1.8 million tons per year
Project requirements: Stone powder, 0-5, 1-2, 2-3, 2-4, 3-6, 4-8
Main equipment configuration of the aggregate production line (two lines):
| Equipment Model | Quantity |
| DLZGC2050 Vibrating Feeder | 2 units |
| DLPCZ1820 Heavy Hammer Impact Crusher | 2 units |
| DLPC1622 Shaping Crusher | 2 units |
| DL4YKZ3070 Vibrating Screen | 6 units |
| DL3YKZ3680 Vibrating Screen | 8 units |
| Hoist | - |
Manufactured sand production line (1 line)
| Equipment Model | Quantity |
| GZGF1103 Vibrating Feeder | 1 unit |
| VSI8525 Vertical Shaft Impact Crusher | 1 unit |
| Three-layer Vibrating Screen | 1 unit |
| 1300 Model Powder Separator | 1 unit |
| Conveyor | - |
Two water washing production lines
| Equipment Model | Quantity |
| VXL-2011 Spiral Sand Washer | 2 units |
| VTH-2050 Dewatering & Recovery Machine | 2 units |
| Conveyor | 2 units |
| Vertical Flow Thickener | 2 units |
| ZK-1660-500 Plate and Frame Filter Press | 4 units |
1. Aggregate Production
Raw stones ≤1000mm are fed into the DLPCZ1820 heavy hammer crusher via a DLZGC2050 feeder. After crushing, they are separated into 0-100mm stones, 4-8mm stones, and soil/stone powder by a vibrating screen. The 0-100mm stones enter a second screen, which screens out materials >60mm (which are then sent to the DLPC1622 shaping crusher and returned to the second screen, producing 2-4mm and 3-6mm stones), 2-4mm stones, 3-6mm stones, and materials ≤30mm. The materials ≤30mm enter a third screen, which finally separates them into 2-3mm stones, 1-2mm stones, 0-5mm stones, and stone powder.
2. Sand Production
The 0-5mm stones from the aggregate line are processed in a sand making machine. After screening, materials >3.7mm are returned to the machine for reprocessing. The remaining materials are sent to a classifier to separate uniformly sized manufactured sand. 3. Washed Sand Production: Aggregate Line 0-5: Stones enter the washed sand production line and are processed by a sand washing machine and a dewatering and recycling integrated machine to separate finished washed sand and mud.
Bluestone is a widely distributed rock. It is a type of sedimentary rock and resistant to weathering.
Multi-Voltage Engine Turnkey Solution for Limestone Etc. 1.5-Year Warranty
Conact Us
The flow includes coarse crushing (jaw crusher), medium & fine crushing (impact crusher), sand making (impact sand making machine), screening (vibrating screen), and sand washing (wheel bucket sand washer).
A jaw crusher is used for coarse crushing, while an impact crusher handles medium and fine crushing, ensuring high-quality output with low energy consumption.
Stones are processed in an impact sand making machine using “stone-on-stone” and “stone-on-iron” principles, achieving high sand production and environmental friendliness.
The wheel bucket sand washer cleans, classifies, and removes impurities from the sand, with low power consumption and high dehydration efficiency.
