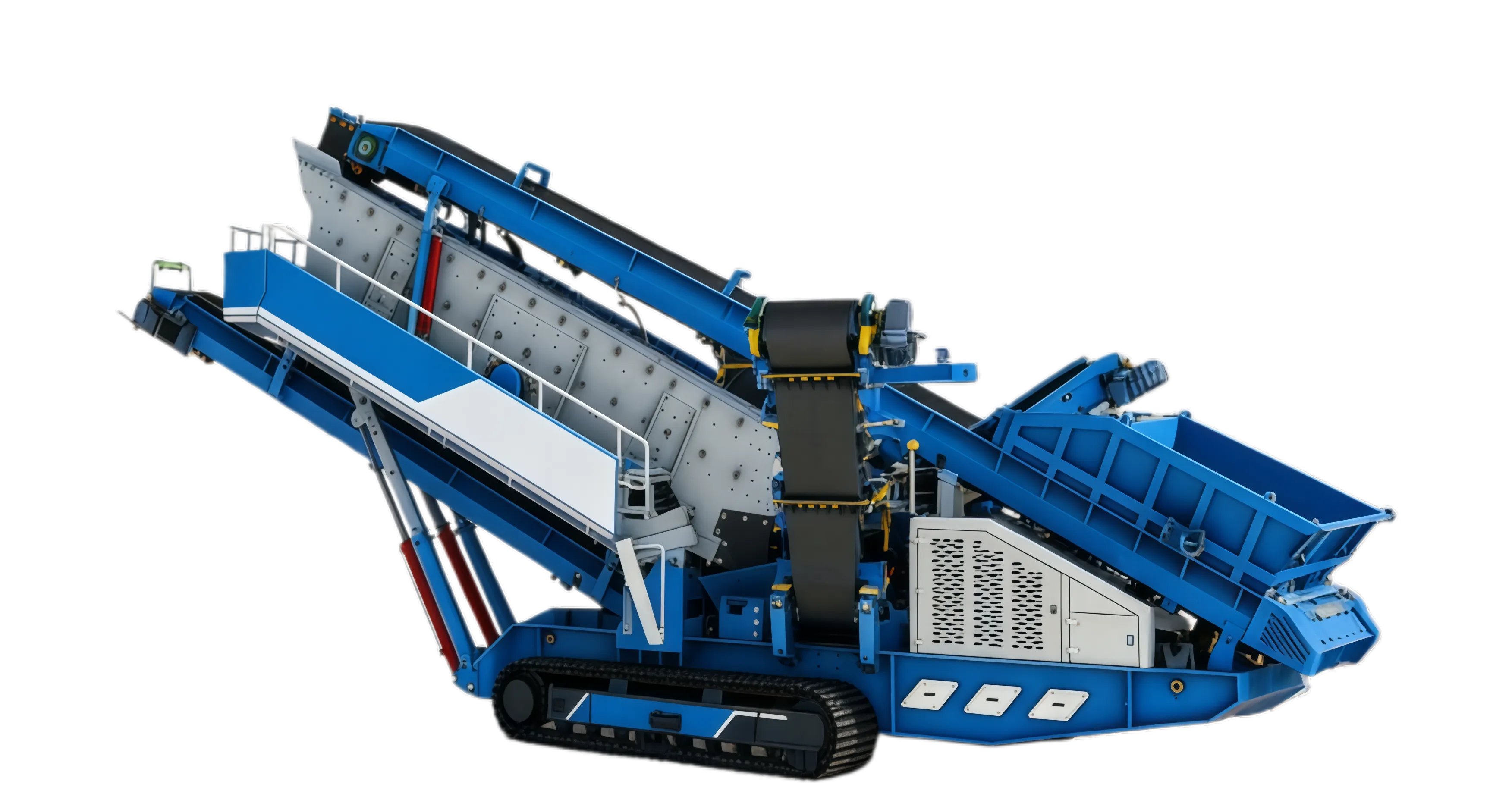

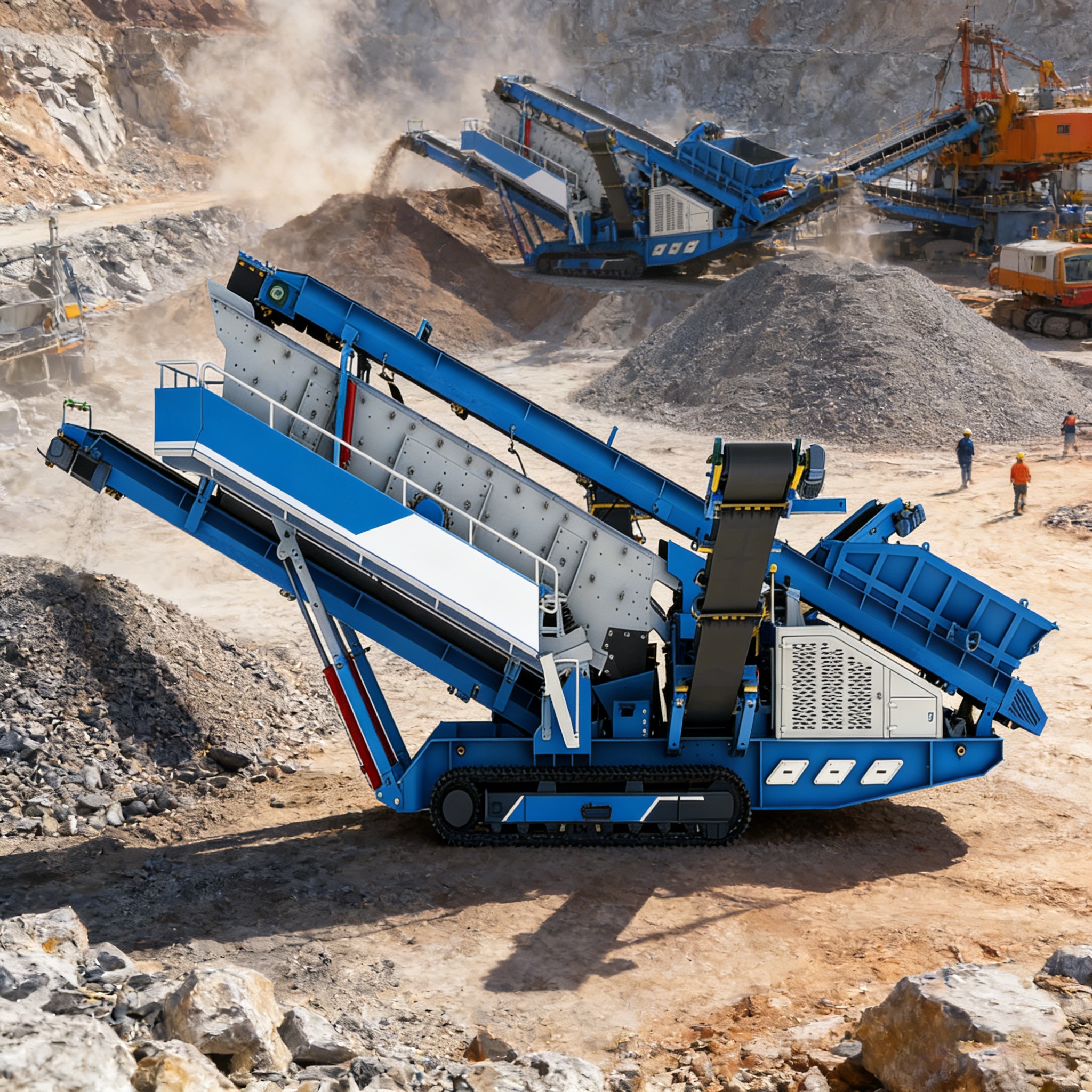

The DL2160 is positioned as a high-efficiency grading screening equipment, equipped with a three-layer vibrating screen for precise multi-size material classification, widely adaptable to screening needs such as sand and gravel aggregates and metal ore tailings.
| Item |
Parameter |
| Equipment Name |
Tracked Mobile Screening Station |
| Equipment Model |
DL2160 |
| Operation Stage |
Grading Screening |
| Drive Type |
Oil-Electric Dual Use (Weichai Generator Set) |
| Total Power |
82 kW |
| Processing Capacity |
250-700 T/H |
| Max. Climbing Angle / Side Tilt |
20°/10° |
| Travelling Speed |
0.6-1 km/h |
| Weight |
43 t |
2. Vibrating Screen Specifications
The main unit features a 3YJ2070 three-layer vibrating screen, driven by vibration motors with an adjustable screen angle, ensuring efficient screening and precise particle size classification for various materials.
| Item |
Parameter |
| Vibrating Screen Model |
3YJ2070 |
| Number of Layers |
3 Layers |
| Screen Size (W x L) |
2000 × 7000 mm |
| Screen Angle |
24° |
| Drive Type |
Vibration Motor Driven |
| Motor Power |
2 × 13 kW |
| Max. Feed Size |
200 mm |

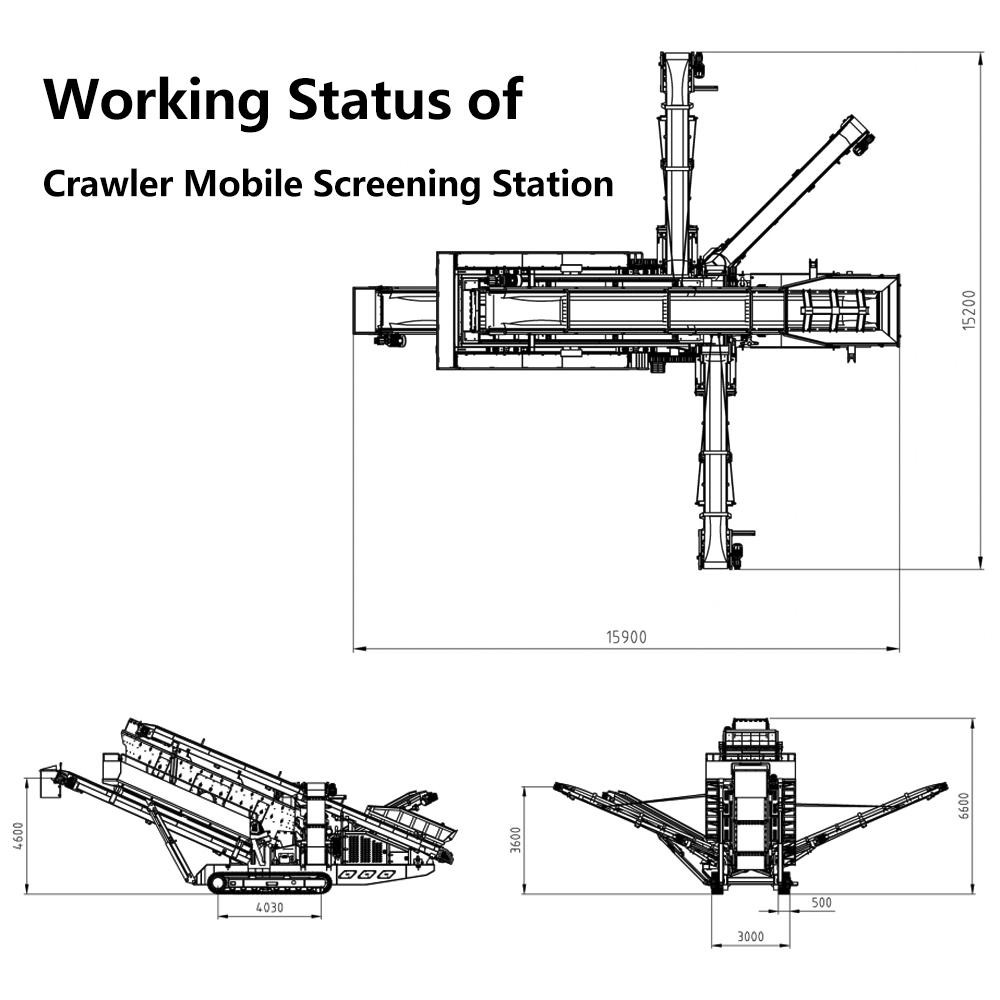

3. Dimensions (Working/Transport)
The equipment features a well-designed structure for both working and transport states, meeting on-site multi-discharge requirements while facilitating road transport and cross-border logistics.
| Item |
Working State |
Transport State |
| Length (mm) |
15900 |
16200 |
| Width (mm) |
15200 |
3680 |
| Height (mm) |
6600 |
3850 |
| Weight (t) |
43 |
43 |
4. Auxiliary System Technical Parameters
(1). Hopper & Main Feed Belt Conveyor
High-strength integrated heavy-duty hopper combined with the main feed belt conveyor ensures continuous and stable feeding, adaptable for coordinated operation with crushing stations.
| Module |
Item |
Parameter |
| Hopper |
Type |
High-strength integrated heavy-duty hopper |
| Volume |
3 m³ |
| Feeding Height |
2300 mm |
| Max. Feed Size |
200 mm |
| Main Feed Belt Conveyor |
Width |
1200 mm |
| Total Length |
12700 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
18.5 kW |
(2). Multi-stage Discharge Belt Conveyors
Four independent discharge belt conveyors correspond to coarse, medium, medium-fine, and fine materials, enabling precise multi-size material classification and collection, with stacking heights meeting on-site storage needs.
| Module |
Item |
Parameter |
| Coarse Material Belt |
Belt Width × Length (C-C) |
650 × 6000 mm |
| Stacking Height |
3600 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
7.5 kW |
| Medium Material Belt |
Belt Width × Length (C-C) |
800 × 7800 mm |
| Stacking Height |
3600 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
7.5 kW |
| Medium-Fine Material Belt |
Belt Width × Length (C-C) |
800 × 7800 mm |
| Stacking Height |
3600 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
7.5 kW |
| Fine Material Belt |
Belt Width × Length (C-C) |
1200 × 8800 mm |
| Stacking Height |
4600 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
11 kW |
| Transfer Belt |
Belt Width |
B500 mm |
| Belt Length (C-C) |
2300 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
4 kW |
(3). Power Module & Tracked Undercarriage
The oil-electric dual-use power system and flexible tracked undercarriage adapt to off-grid environments and complex terrain operations, with wireless remote control enhancing operational safety.
| Module |
Item |
Parameter |
| Power Module |
Generator Set |
Weichai Generator Set |
| Generator Set Power |
120 kW |
| Diesel Tank Capacity |
400 L |
| Hydraulic Tank Capacity |
400 L |
| Tracked Undercarriage |
Chassis Length (Wheelbase) |
4030 mm |
| Track Shoe Width |
500 mm |
| Drive Type |
Hydraulic/Gearbox Drive |
| Control Method |
Wireless Remote Control |
