Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

Project Overview

• Project Location: Liuyang, Hunan, China
• Commissioning Time: 2017
• Raw Material: Limestone
• Capacity: 350 tons per hour
• Final Products: 5–10 mm, 10–20 mm, 0–5 mm, Manufactured Sand

Construction Site	Construction Site	Construction Site

Main Equipment Configuration

• Vibrating Feeder
• Hammer Crusher
• KPC1313 Double-Chamber Hard Rock Crusher
• Vibrating Screens
• Wheel Sand Washing Machines

Production Site Description

250–350 TPH Crushing and Sand Making Production Process

The raw materials are first evenly fed into the hammer crusher through a vibrating feeder for primary crushing.

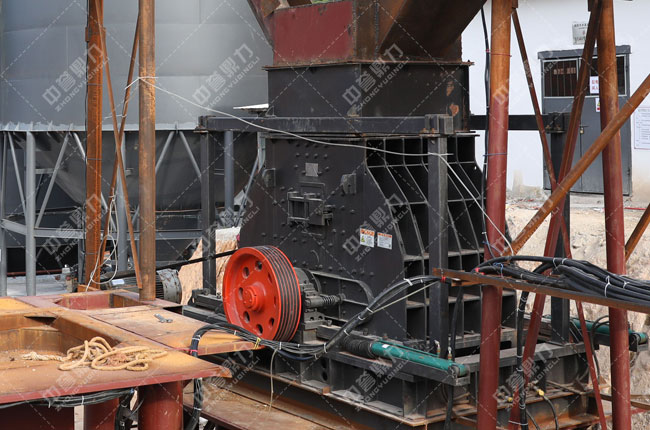

After the initial crushing stage, the material is conveyed to the KPC1313 double-chamber hard rock crusher for secondary crushing and shaping.

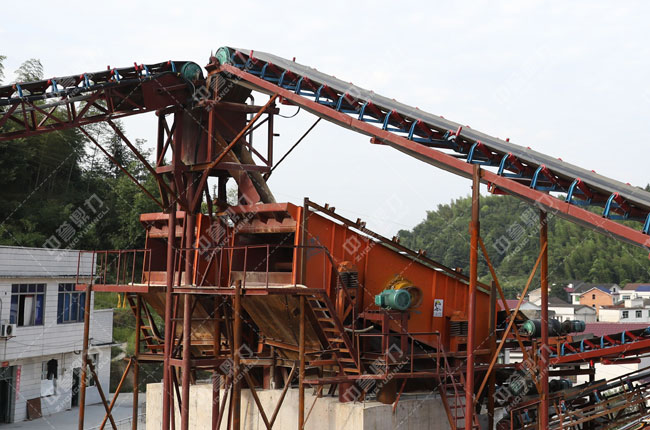

The processed material is then transported to a set of vibrating screens for screening. Oversized materials are returned to the hard rock crusher for further crushing.

Materials smaller than 1–3 cm are conveyed to a transfer bin and then sent back to the vibrating screens for additional screening.

The screened finished sand is delivered to two wheel sand washing machines for cleaning, producing high-quality finished sand with improved cleanliness.

Customer Feedback

Mr. Tan, General Manager of Hunan Liuyang Xinlei Building Materials

“We were introduced to Zhongyu Dingli through a friend. After visiting several equipment operation sites, we decided to cooperate with Zhongyu Dingli. We are very satisfied with both the equipment quality and the installation services. In particular, the output capacity and particle shape produced by the KPC1313 double-chamber hard rock crusher have exceeded our expectations.”
