Zhongyu Dingli DL350 Modular Crushing and Screening Integrated Machine

Zhongyu Dingli's DL350 modular crushing and screening machine integrates feeding, jaw crushing, screening, and conveying onto one steel structure chassis. Designed for aggregates, construction waste, and road projects, it features a durable jaw crusher as its core. This "plug-and-play" system provides a lightweight, efficient alternative to traditional fixed lines.

Applicable Materials:
Mining and aggregate processing
Max Feed Size:
600 MM
Capacity:
170-400 T/H
Zhongyu Dingli DL350 Modular Crushing and Screening Integrated Machine

Technical Specifications

Core technical specifications and performance indicators
Model Feeding Capacity (t/h) Max. Feed Size (mm) Motor Power (kW)
DLGS1510 400–600 <800 30×2
DLGS1810 500–900 <800 37×2
DLGS2410 1000–1500 <1000 45×2
DLGS2610 1500–2000 <1000 55×2
DLGS3010 2100–3000 <1000 55×2

1. Overall Parameters

Item Parameter
Model DL350
Max. Feed Size 600mm
Processing Capacity 170-400t/h
Total Weight 38t

2. Hopper

Item Parameter
Type High-strength integrated heavy-duty hopper
Width × Length 2000×3875mm
Feeding Height 3723mm
Volume 3m³

3. Feeder

Item Parameter
Type Vibrating Feeder
Feeder Length × Width 3800×1100mm
Drive Type Vibrating motor drive
Motor Power 2×5.5KW

4. Main Conveyor

Item Parameter
Belt Width × Length (Center Distance) 1200×8900mm
Stockpile Height 2640mm
Drive Type Motor and gearbox drive
Motor Power 11KW

5. Magnet (Iron Remover)

Item Parameter
Model RCYQ-12
Suitable Belt Width 1200mm
Height Above Belt Adjustable
Type / Motor Power Permanent magnet self-cleaning type / 3KW

6. Jaw Crusher

Item Parameter
Model C113 (Jaw Type)
Discharge Range 70-200mm
Drive Type Motor driven via V-belt
Feed Opening Size 1060×700mm
Adjustment Type Hydraulic adjustment
Motor Power 110KW

Machine Details

Detailed introduction to the double-chamber hard rock crusher structure and design

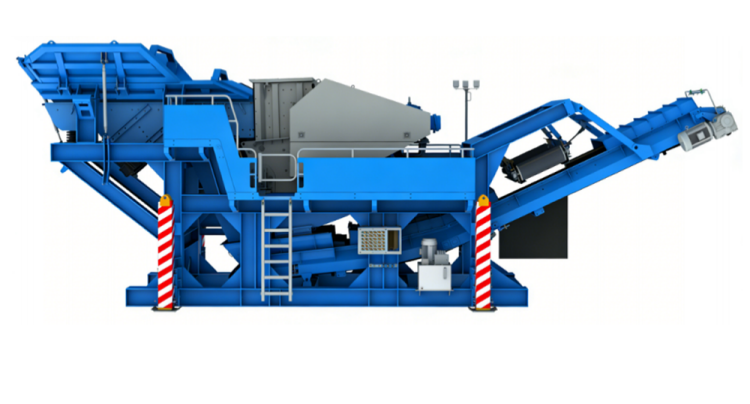

DL350 Modular Crushing and Screening Integrated Machine

DL350 Modular Crushing and Screening Integrated Machine

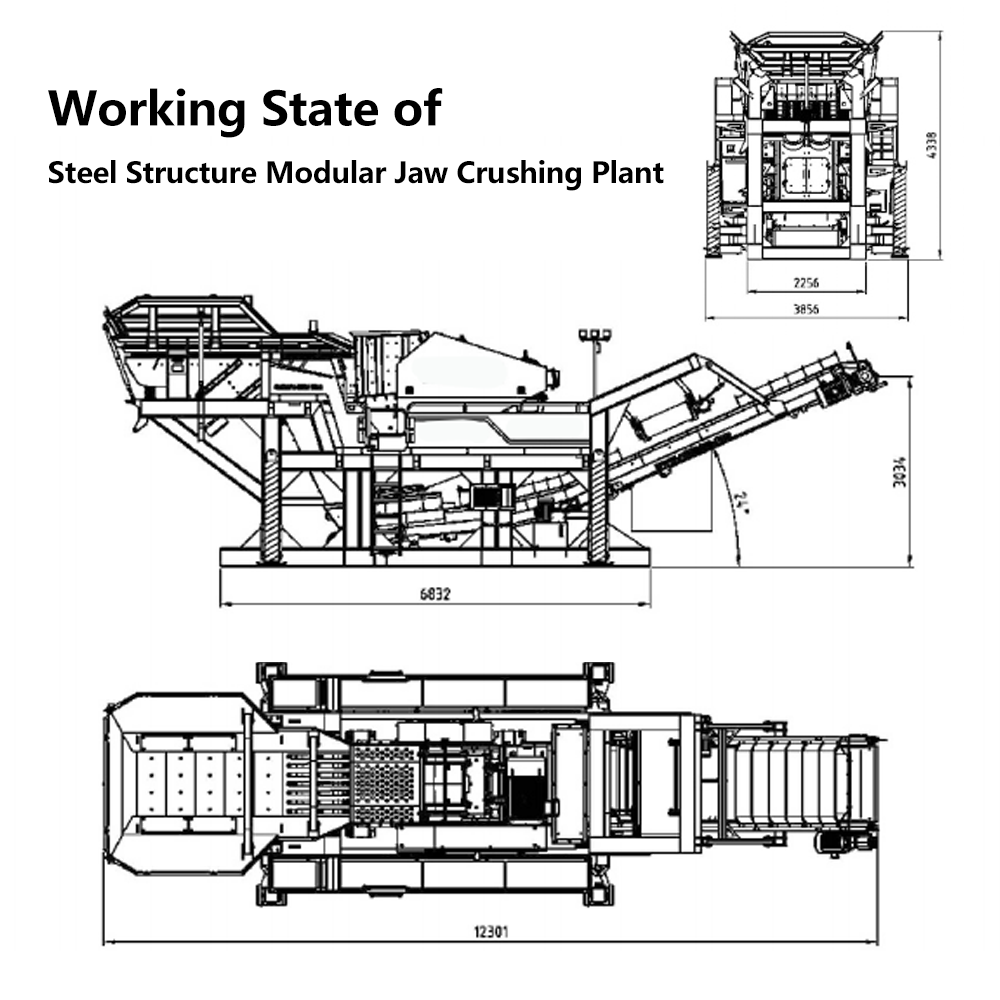

Diverse adaptation, customized solutions

Based on the rich range of core equipment models, we can customize dedicated modular production line configurations according to the customer's raw material hardness, feed particle size, production capacity requirements and application scenarios:

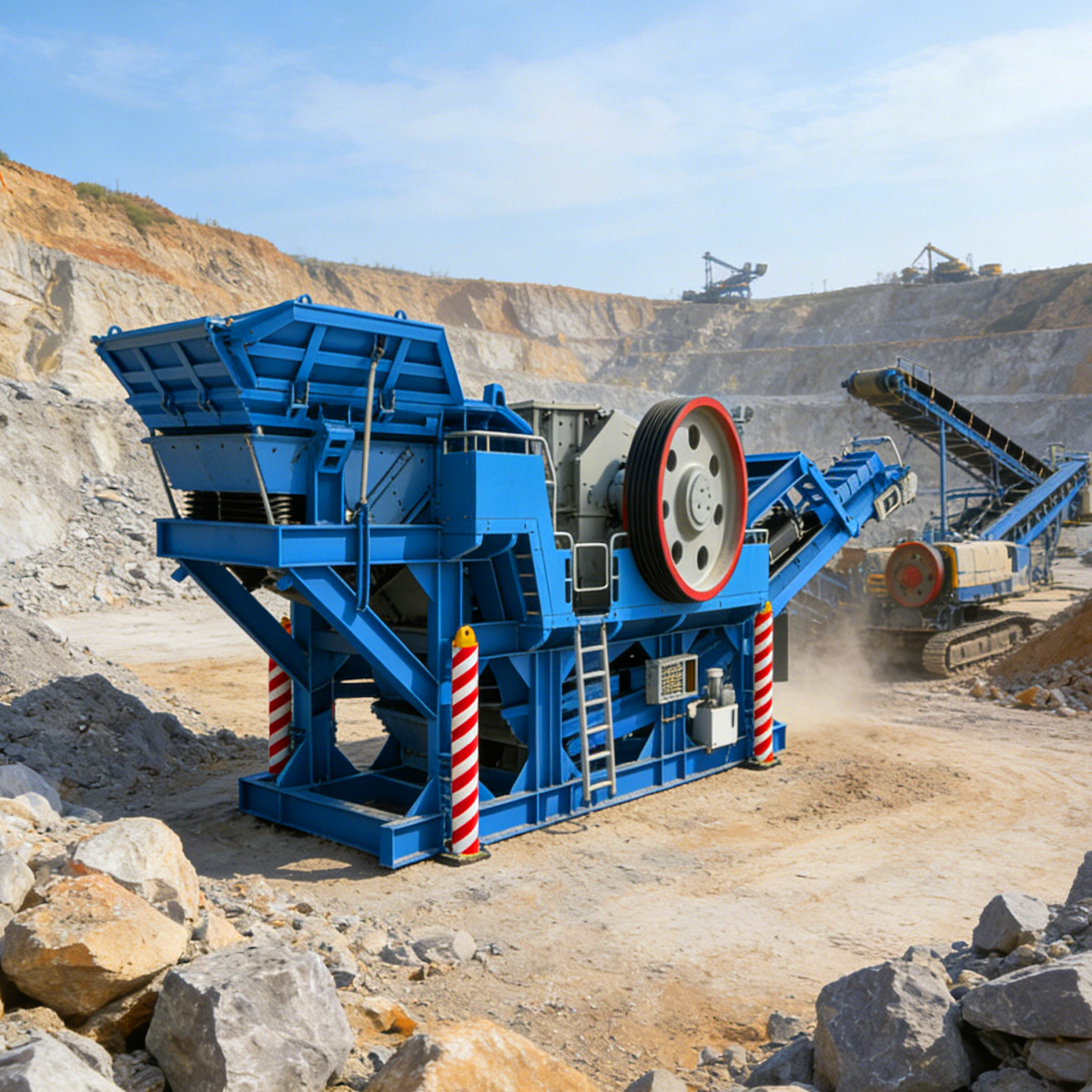

This mobile crushing unit features a modular integrated design with a high-strength steel structure chassis, pre-installed with a hopper, vibrating feeder, jaw crusher, main belt conveyor, and magnetic separator—eliminating complex on-site assembly and significantly shortening installation lead times. Its compact transport dimensions enable rapid relocation via standard flatbed trucks, making it ideal for remote sites and emergency repair scenarios.

At the core is a robust jaw crusher known for its wear resistance, large crushing ratio, and wide feed size range. It handles feed sizes up to 600mm, with a processing capacity of 170-400t/h and an adjustable discharge range of 70-200mm via hydraulic adjustment. This versatility suits various materials, including limestone, granite, and construction waste, for both primary and medium crushing. The synchronized vibrating feeder and belt conveyor ensure stable material flow, while the self-cleaning permanent magnetic separator removes metal contaminants to protect the jaw plates.

Designed for reliability and low maintenance, the 3m³ heavy-duty hopper buffers material fluctuations to prevent blockages and overloads. The jaw plates are made of high-strength wear-resistant material for easy replacement and low wear rates. The motor V-belt drive simplifies maintenance, and the compact layout with clear inspection access allows quick disassembly of key components, minimizing downtime and maximizing operational efficiency. This unit is perfectly suited for mining aggregate production, construction waste recycling, road infrastructure, and emergency reconstruction projects.

Diverse adaptation, customized solutions

Core Advantages

Core advantages of the double-chamber hard rock crusher design
Zhongyu Dingli DL350 Modular Crushing and Screening Integrated Machine

Modular integrated design

Plug-and-play modular design for rapid deployment and relocation.

  • Fast Installation – High-strength steel modular chassis integrates all core equipment, eliminating complex on-site assembly and significantly reducing setup time.
  • Easy Transport – Compact dimensions allow quick relocation via standard flatbed trucks, ideal for remote sites and emergency repairs.
  • Versatile Efficiency – Combined with the stable jaw crusher, it ensures reliable, high-output production across multiple scenarios.

Processing of various materials

Reduces manual maintenance work

  • Buffers material to prevent blockages and overload, ensuring continuous production.
  • Motor V-belt drive for easy maintenance; high-strength jaw plates with low wear rate for simple replacement; permanent magnet self-cleans, reducing manual intervention.
  • Clear inspection passages and easy disassembly of key components minimize downtime and maximize crusher efficiency.

Applicable Scene

High-throughput processing for road base projects.

  • Leverages wear-resistant liners for medium/fine crushing of hard rocks (limestone, granite, basalt).
  • Processes demolition debris and concrete blocks efficiently; uniform output ideal for downstream screening and recycling.
  • High processing capacity for on-site production of highway/railway base materials, ensuring project timelines are met.
  • Modular design for rapid deployment with stable performance, ideal for post-disaster reconstruction and road repair.

Stable

Durable and reliable, with low maintenance costs

  • The screen plate is made of high-quality alloy steel, which is highly wear-resistant and has a long service life. The crawler chassis and the overall structure of the machine have been optimized for heavy loads.
  • The crawler chassis and the overall structure of the machine have been optimized for heavy loads, enabling it to adapt to complex terrains such as mines and construction sites.
  • The machine is easy to maintain and reduces long-term operating costs.
Modular integrated design
Processing of various materials
Applicable Scene
Stable

Application Scenarios

Zhongyu Dingli undertakes the construction of sand and gravel aggregate production lines with an hourly output of 100-6000 tons, and provides intelligent control systems for mines.

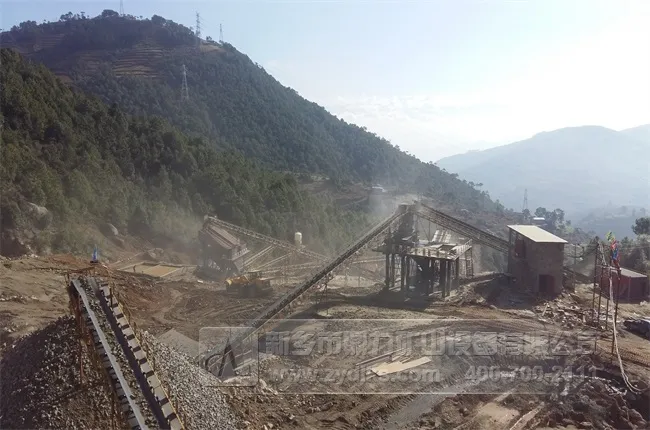

Sichuan 250–300 TPH Granite Crushing Production Line

Sichuan 250–300 TPH Granite Crushing Production Line

This design significantly reduces equipment investment and simplifies the production line configuration. At the same time, the crusher has a large processing capacity, allowing it to handle a high volume of materials within a short period and efficiently complete the crushing process

 Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

Hunan Liuyang Xinlei 250–350 TPH Aggregate and Sand Production Line

The raw materials are first evenly fed into the hammer crusher through a vibrating feeder for primary crushing. After the initial crushing stage, the material is conveyed to the KPC1313 double-chamber hard rock crusher for secondary crushing and shaping.

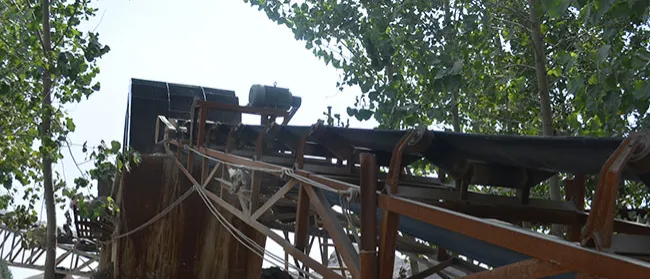

300 TPH Sand Production Line in Weihui, Xinxiang, Henan

300 TPH Sand Production Line in Weihui, Xinxiang, Henan

At the customer’s production site, the raw materials used for sand making are mainly large-size aggregates. These stones are first crushed again to reduce their size and then processed through the sand making system.

 600 TPH Sand & Aggregate Production Line in Renshou, Meishan, Sichuan

600 TPH Sand & Aggregate Production Line in Renshou, Meishan, Sichuan

/600-tph-sand--aggregate-production-line-in-renshou-meishan-sichuan
