This project is a newly constructed large-scale aggregate production line completed and put into operation in 2017.
The designed capacity is 1,000 tons per hour, with a maximum output reaching 1,500 tons per hour.
The production line mainly processes limestone into 0–5 mm, 12 mm, and 13 mm aggregates.
• Location: Huaiyuan County, Anhui Province, China
• Raw Material: Limestone
• Capacity: 1,000 tons per hour (up to 1,500 TPH)
• Finished Products: 0–5 mm, 12 mm, and 13 mm aggregates

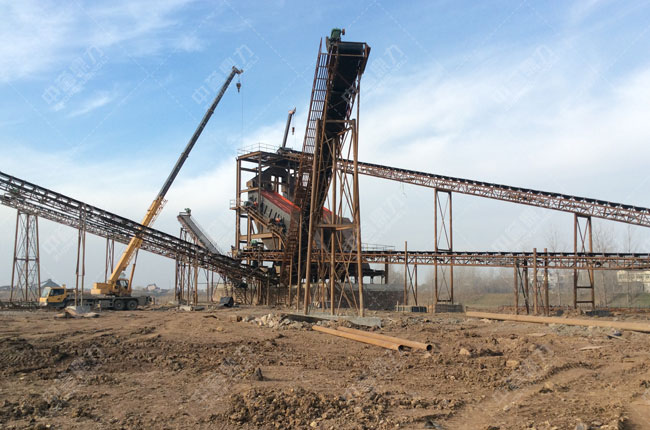

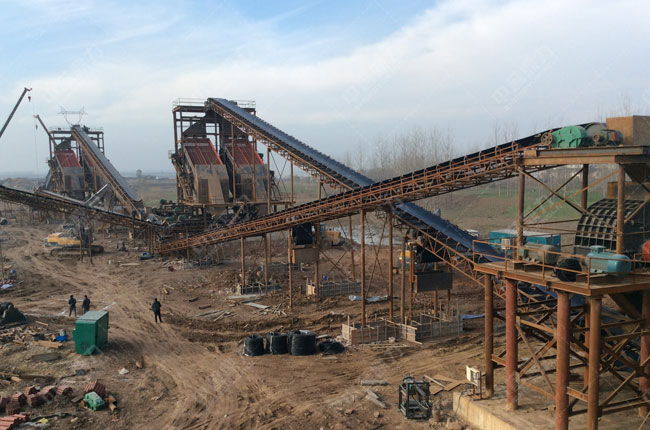

The project site features a well-planned layout and a streamlined production flow.
The production line operates efficiently with stable performance, ensuring consistent aggregate output and convenient maintenance.
| Equipment | Model | Quantity | Capacity (TPH) |
|---|---|---|---|
| Vibrating Feeder | DLZG2050 | 1 | 800–1500 |
| Heavy Hammer Crusher | DLPCZ1820 | 1 | 800–1500 |
| Shaping Crusher | DLPC1220 | 2 | 500–700 |
| Vibrating Screen | DL3YKZ40100 | 2 | 20–800 |
| Dust Collector | DL2YKZ40100 | 2 | 20–1000 |
| Belt Conveyor | — | Several | — |

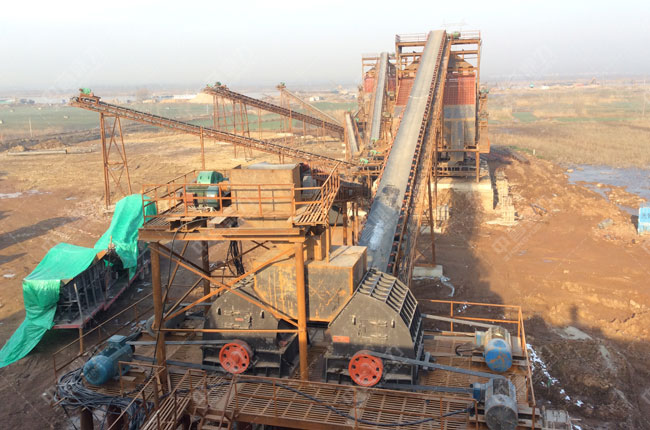

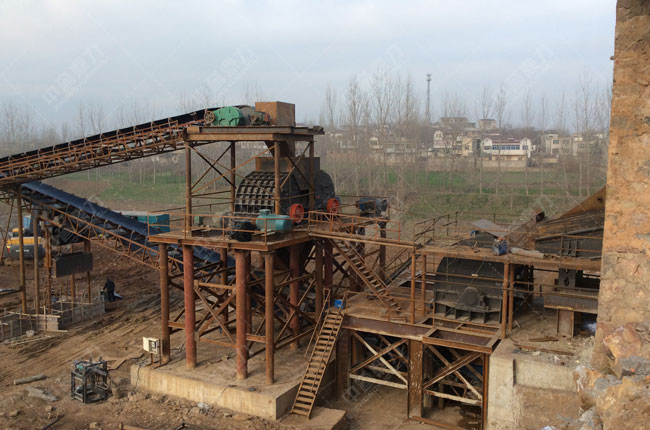

Limestone is fed into the DLZG2050 vibrating feeder, then transported to the DLPCZ1820 heavy hammer crusher for primary crushing.
After crushing, the material enters the DLPC1220 shaping crushers for particle shaping.
Finally, the material is screened by DL3YKZ40100 vibrating screens.
Qualified aggregates are conveyed to the finished product stockpile, while oversized materials are returned for further processing.
Multiple configuration options are available for a 1,000 TPH aggregate production line.
Based on the customer’s finished product requirements, the solution adopts a PCZ1820 heavy hammer crusher + PC1220 shaping crusher + supporting equipment.
This configuration offers:
• Stable operation
• High production capacity
• Excellent particle shape
• Reliable long-term performance
• Strong economic benefits for the customer
The project adopts an optimized aggregate production solution that balances capacity, efficiency, and operating cost.
The integrated design improves productivity while ensuring stable and intelligent plant operation.
