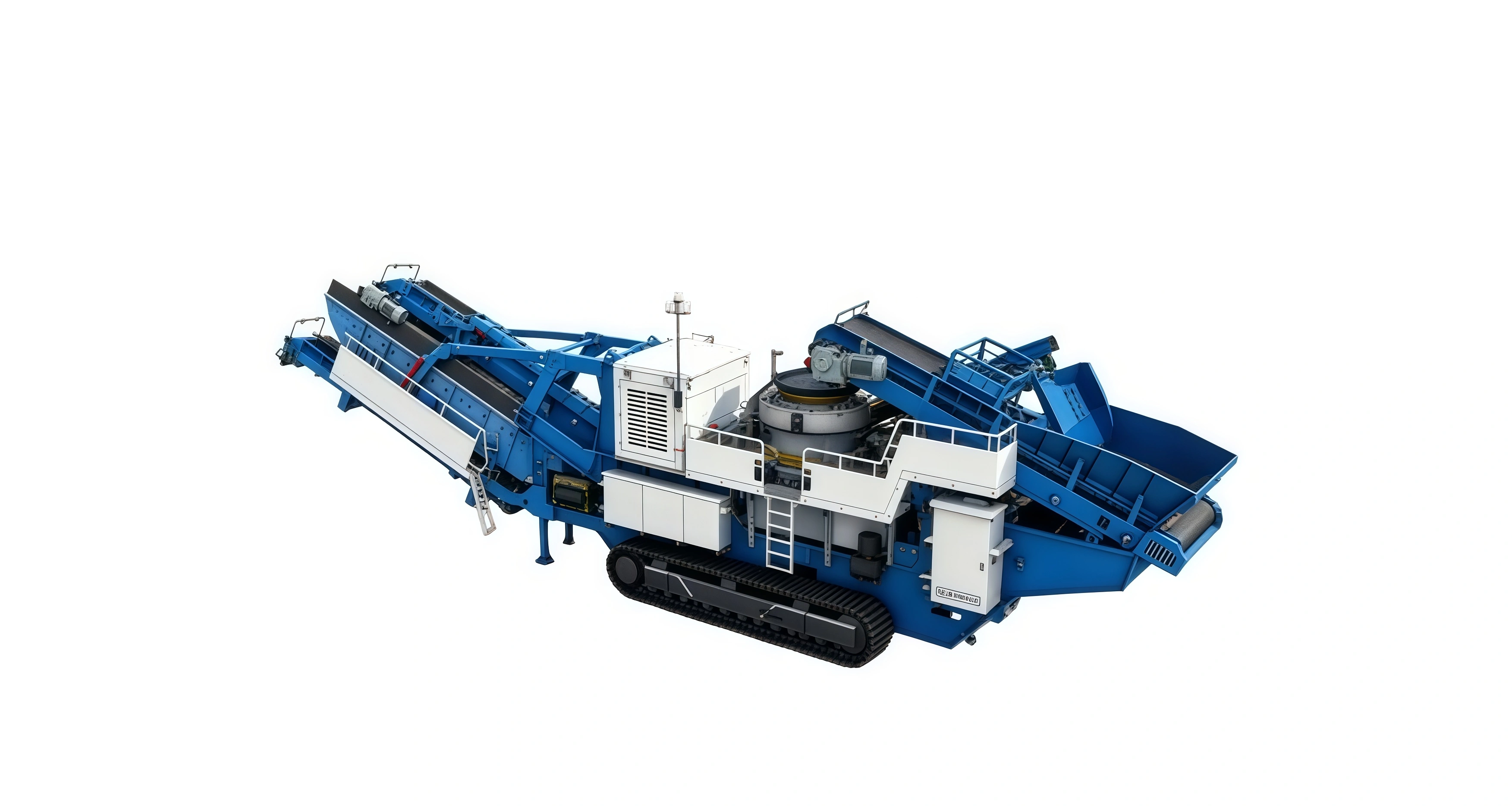

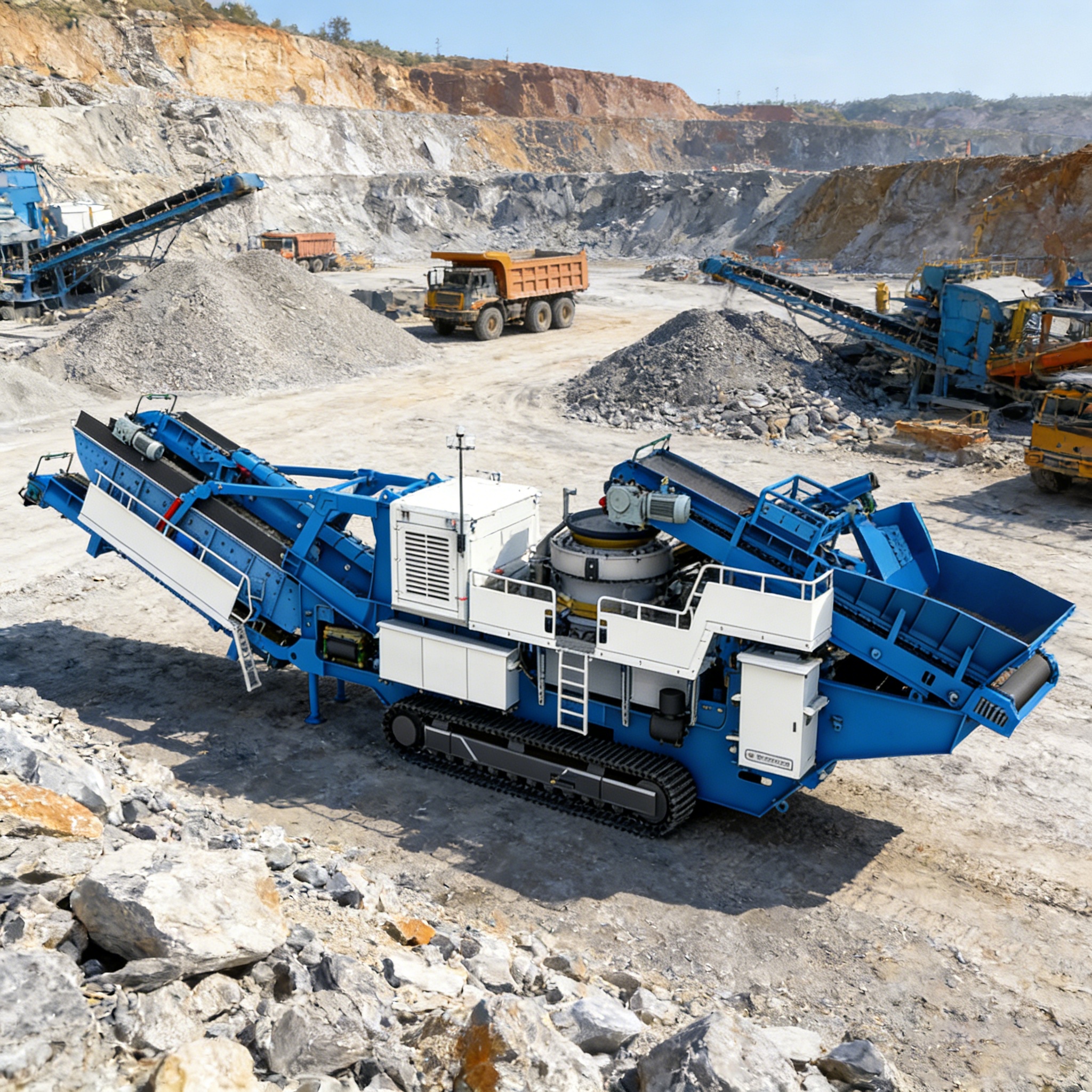

The DL300 is positioned as the core equipment for medium and fine crushing, equipped with a multi-cylinder hydraulic cone crusher HPC300. It can precisely crush materials after primary crushing, adapting to the refined processing needs of various ores and sand aggregates.
| Item |
Parameter |
| Equipment Name |
Tracked Mobile Cone Crusher Station |
| Equipment Model |
DL300 |
| Crushing Stage |
Medium & Fine Crushing |
| Drive Type |
Oil-Electric Dual Use (Weichai Generator Set) |
| Total Power |
331.2 kW |
| Processing Capacity |
150-430 T/H |
| Max. Climbing Angle / Side Tilt |
20°/10° |
| Travelling Speed |
0.6-1 km/h |
| Weight |
59 t |
2. Crusher Specifications
The main unit features an HPC300 multi-cylinder hydraulic cone crusher, driven by a motor through V-belts. Utilizing inter-particle laminating crushing principle, it offers high crushing efficiency and excellent product shape, making it an ideal choice for medium and fine crushing operations.
| Item |
Parameter |
| Crusher Model |
Multi-cylinder Hydraulic Cone Crusher HPC300 |
| Mantle Diameter |
1120 mm |
| Discharge Range |
10-45 mm |
| Drive Type |
Motor Driven via V-belts |
| Main Motor Power |
250 kW |

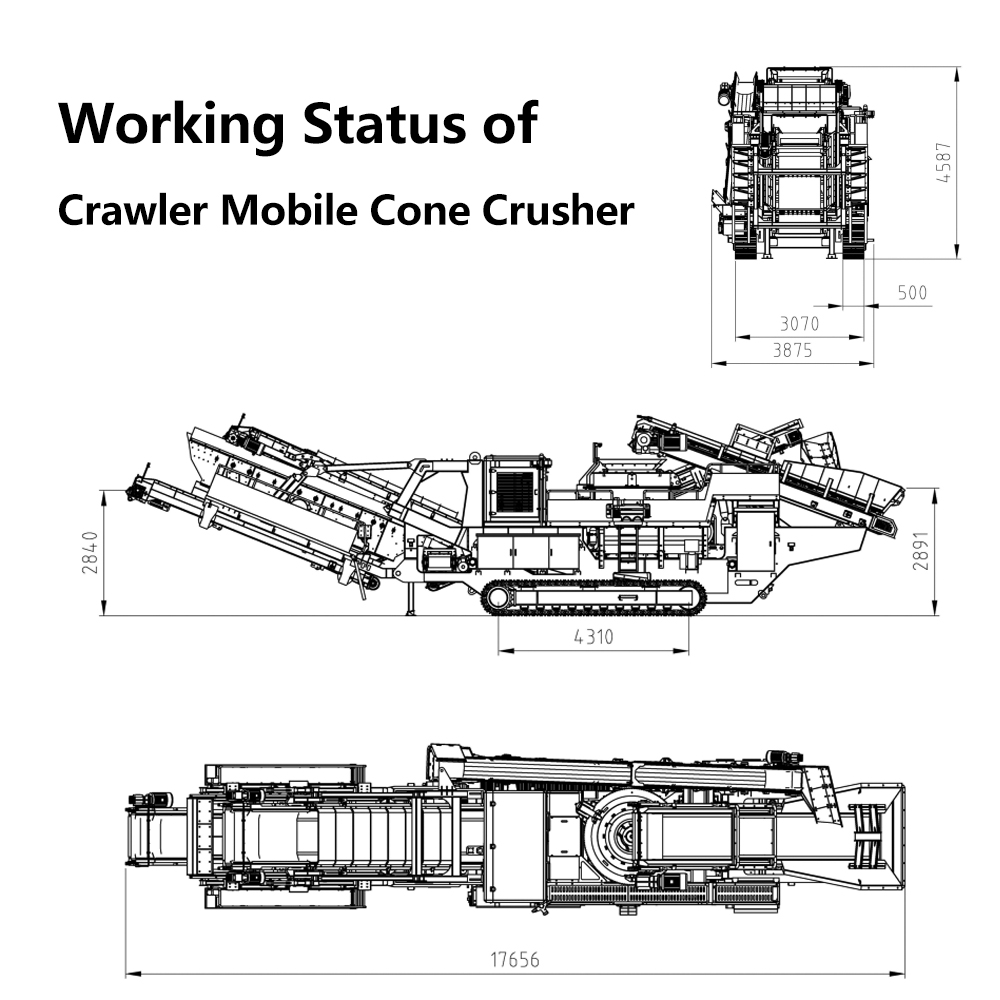

3. Dimensions (Working/Transport)
The equipment maintains a reasonable structure in both working and transport states, meeting on-site operational space requirements while facilitating road transport and cross-border logistics.
| Item |
Working State |
Transport State |
| Length (mm) |
17656 |
18900/18903 |
| Width (mm) |
3875 |
3880 |
| Height (mm) |
4587 |
3886 |
| Weight (t) |
59 |
59 |
4. Auxiliary System Technical Parameters
(1). Hopper & Feeder
High-strength integrated heavy-duty hopper combined with belt feeder ensures continuous and stable feeding, preventing material blockages.
| Module |
Item |
Parameter |
| Hopper |
Type |
High-strength integrated heavy-duty hopper |
| Size (W×L) |
2400×2700 mm |
| Feeding Height |
2900 mm |
| Volume |
6.5 m³ |
| Feeder |
Type |
Belt Feeder |
| Size (Belt W × C-C Length) |
1200×5700 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
18.5 kW |
(2). Conveying & Screening System
Multi-stage belt conveyors work in conjunction with the return screen to facilitate material conveying, screening, and recirculation, ensuring uniform product size.
| Module |
Item |
Parameter |
| Main Belt Conveyor |
Belt Width |
B1200 mm |
| Belt Length (C-C) |
10500 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
2×7.5 kW |
| Under-screen Belt Conveyor |
Belt Width |
B1000 mm |
| Belt Length (C-C) |
5730 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
11 kW |
| Transfer Belt Conveyor |
Belt Width |
B500 mm |
| Belt Length (C-C) |
2135 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
4 kW |
| Return Belt Conveyor |
Belt Width |
B500 mm |
| Belt Length |
8845 mm |
| Drive Type |
Motor & Gearbox Drive |
| Motor Power |
7.5 kW |
| Return Screen |
Model |
1YJ1750 |
| Layers / Screen Size (W×L) |
1 / 1740×5000 mm |
| Drive Type |
Vibration Motor Driven |
| Motor Power |
2×6 kW |
(3). Power Module & Tracked Undercarriage
The oil-electric dual-use power system and flexible tracked undercarriage adapt to off-grid environments and complex terrain operations.
| Module |
Item |
Parameter |
| Power Module |
Generator Set |
Weichai Generator Set |
| Generator Set Power |
500 kW |
| Diesel Tank Capacity |
500 L |
| Hydraulic Tank Capacity |
300 L |
| Tracked Undercarriage |
Chassis Length (Wheelbase) |
4310 mm |
| Track Shoe Width |
500 mm |
| Drive Type |
Hydraulic Gearbox Drive |
| Control Method |
Wireless Remote Control |
| Magnetic Separator |
Dimensions |
1000×800×350 mm |
| Applicable Belt Width |
B1200 mm |
| Type |
Permanent Magnet |
| Magnetic Field Intensity |
90 MT |
