Construction Sand Making Machine | DLKZS VSI Crusher

Construction Sand Making Machine | VSI Crusher & Sand Maker

Construction Sand Making Machine | VSI Crusher & Sand Maker

A precast yard in Malaysia kept rejecting their own beams, surface honeycombing and early strength issues. They attributed these to the cement. We took our sand making machine on-site for a trial. After one shift, we adjusted rotor speed and cascade air flow and our sand had 17% less fines with better gradation. Their beams came out smooth. Strength test passed. They used our machine for all three plants. Not every sand making machine produces an optimal product. The key isn’t just crushing hard rock but controlling the shape of the particles and fines. A 2022 study by the Indian Concrete Institute found that well-graded manufactured sand reduces the demand of cement paste by 8-10% and improves workability of concrete. We’ve experienced similar results on our projects. We run this machine with granite, basalt and limestone. It can take up to 4% moisture without clogging, however, if you leave the air box clogged with cement it will start seizing up, so some discipline is required.
Get A Quote

Advantages of Construction Sand Making Machine

High Output

The rotor of core components adopts deep cavity design, which allows more materials to pass and achieves higher output; meanwhile, the materials have more chances to be crushed in the crushing cavity and the grain shape is better.

After-Sales Service

1.5-year warranty for roll crusher core parts, 1.5-year warranty for complete set, 12 global spare parts warehouses, 24/7 bilingual response + 48h overseas on-site service.

High Impact Energy

Thicker liners and extended hammer heads deliver higher impact energy, purpose-built for primary reduction of hard, abrasive rock.

Stable and Reliable

Dilute oil lubrication, more reliable work; equipped with air cooling and heating system, PLC intelligent system can carry out fully automatic control for equipment lubrication, ensuring reliable operation of the equipment.

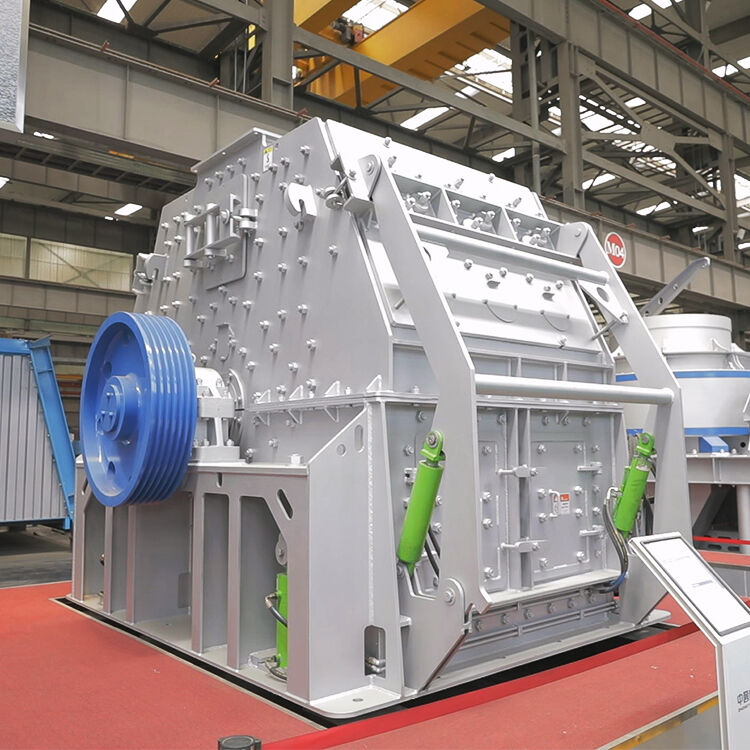

Construction Sand Making Equipment Manufacturer DLKZS Series Single-Rotor Reversible Sand Making Machine Now on Sale

Why Symmetry Saves Money on Every Rotation

A plant engineer once told me his crusher's hammers wore unevenly because the rotor only spun one way—half the hammer face was wasted. That imbalance meant more frequent replacements. The symmetrical crushing chamber solves this: the rotor runs clockwise, then reverses to counter-clockwise without manual hammer flipping. Both hammer faces get used, giving uniform wear on end liners and grates.

Designed for Faster, Safer Maintenance

Main and side wear liners are retained with high-tensile hex-head bolts, and deep counter-bored holes shield the bolt heads from abrasive material. A hydraulically-adjustable grate carrier and actuated hood allow precise grate-gap setting and full chamber access—no manual lifting required. Oversized hammer-disc rims act as sacrificial wear edges, extending disc life. Dropping the lower shaft-guard plate (two bolts) exposes the full hammer shaft; slide it out for rapid hammer or rod change-out—tool-free, in minutes rather than hours. Industry practice consistently shows maintenance-friendly design reduces downtime and extends component life.

FAQ

Which manufacturer makes the best small tracked mobile crusher?

Henan Zhongyu Dingli manufactures small tracked mobile crushers. We offer a complete product line, with quality that has withstood user testing. Our prices are affordable and our technical managers will tailor the manufacturing process to your needs. We also provide after-sales service. Factory visits are welcome. Feel free to contact us online!
Suitable for medium to small hardness materials such as limestone, granite, river pebbles, construction waste, and coal gangue.
Yes, the tracked design makes it easy to move around the construction site and can be relocated without disassembly.
Yes, it can be combined with mobile screening machines, conveyor belts, silos, etc., to realize an integrated production line.
