Project Description:
In response to the high hardness and wear resistance of granite, and the urgent need for high-quality aggregates in East Timor's infrastructure development, this project adopts a highly efficient and energy-saving production line configuration, fully implementing the concept of "green production + efficient processing." The production line uses a standardized component design, with core equipment prefabricated in the factory and quickly assembled and debugged on-site, significantly shortening the on-site construction period by more than 40% and enabling rapid production and results. Equipped with an intelligent monitoring system, it tracks the operating parameters of key equipment such as the 912 jaw crusher and impact crusher in real time, providing timely warnings of malfunctions and ensuring continuous and stable production.

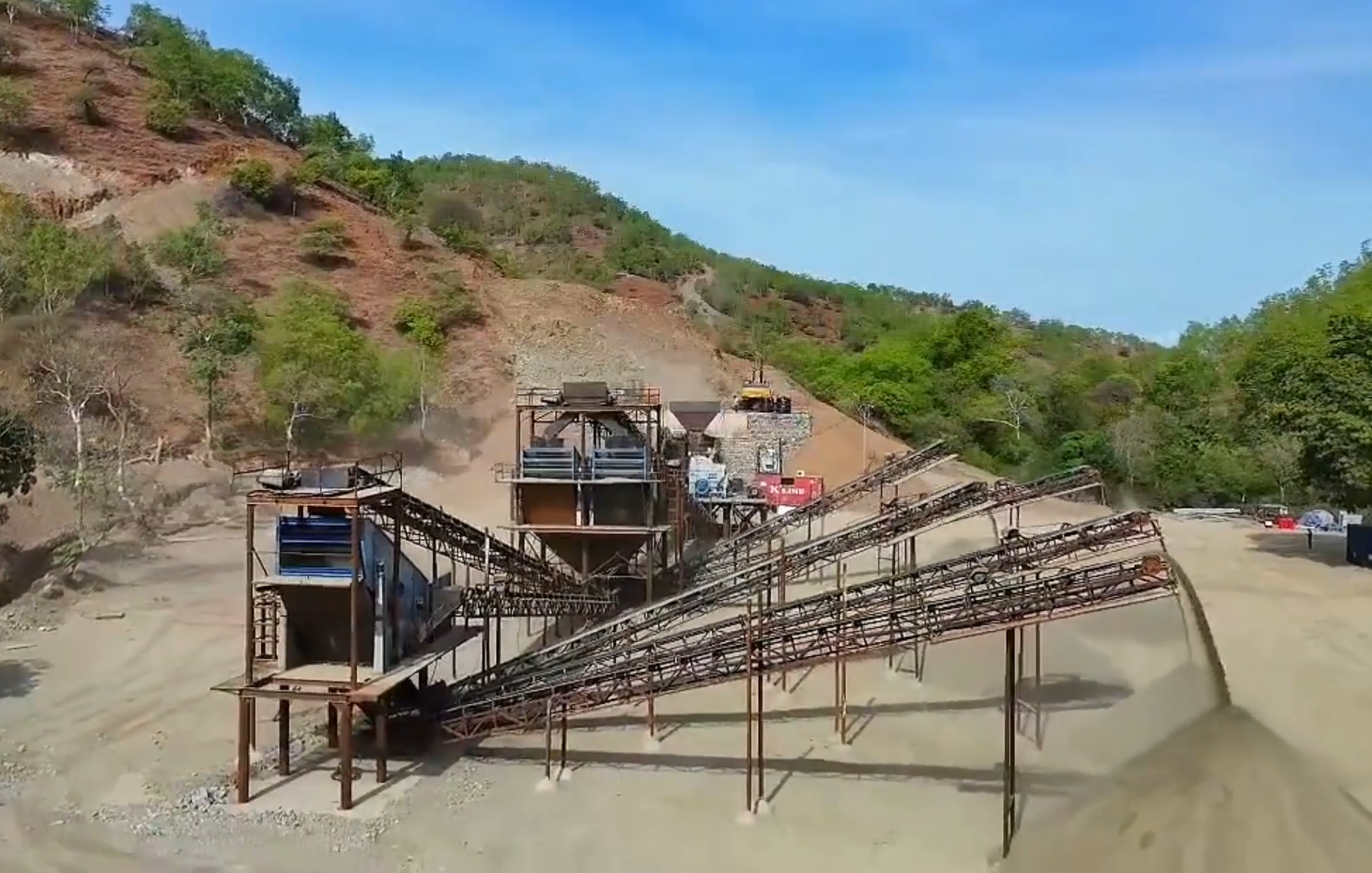

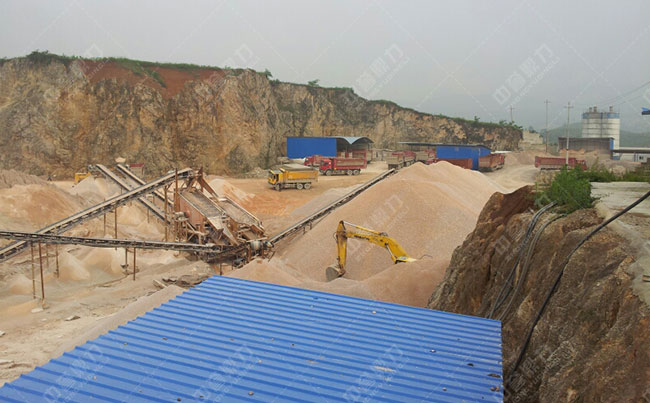

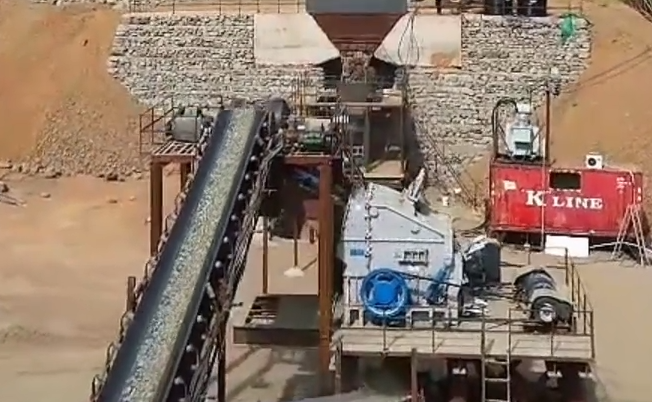

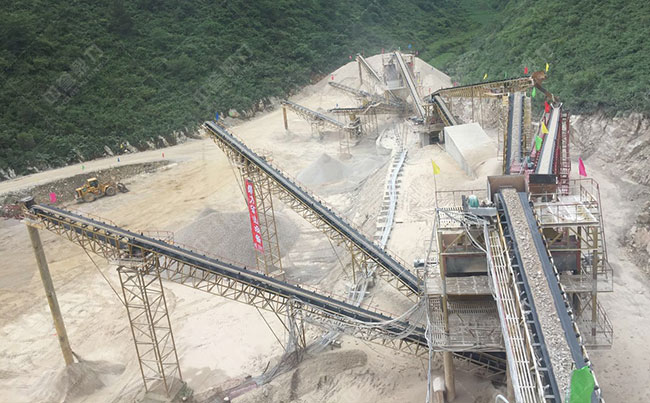

Live Footage
The core of the system is a three-stage closed-loop process: coarse crushing, medium and fine crushing and shaping, and grading and screening. A vibrating feeder evenly distributes material, laying a stable foundation for subsequent crushing processes. The 912 jaw crusher, as the core of coarse crushing, efficiently processes large granite raw materials with its powerful crushing force, offering a large crushing ratio and wide feed size, quickly crushing the raw materials to the appropriate particle size. The impact crusher performs both medium and fine crushing and shaping functions, optimizing material particle shape through high-speed impact, reducing the proportion of needle-like and flaky particles, and improving the regularity of the finished aggregate. The 2460 and 2470 vibrating screens work together, employing a multi-layer screen design to achieve precise grading and screening of finished materials of different specifications, meeting the diverse application needs of road paving, building pouring, and other scenarios.
Configuration process:
| Product Name | Model | Capacity (t/h) | Power |
|---|---|---|---|
| Vibrating Feeder | DLZG 1200×380 | 200–400 | 4.2 kW × 2 |
| Jaw Crusher | DLPE 912 (1200×900) | 180–430 | 132 kW |
| Impact Crusher | DLHCS 1520 | 300–500 | 250 kW × 2 |
| Vibrating Screen | DL 4YKS 2460 | 150–300 | 22 kW |
| Vibrating Screen | DL 3YKS 2470 | 200–400 | 18.5 kW |
Project Features：
This project, custom-designed by a professional technical team, focuses on the development and utilization of East Timor's abundant granite resources. It features a highly efficient combination of a 912 jaw crusher and an impact crusher. The 912 jaw crusher employs a deep-cavity crushing design, with wear-resistant liners adapted to the characteristics of granite, resulting in high crushing efficiency and a long service life. The impact crusher, equipped with high-quality hammers and impact plates, combines crushing and shaping functions, ensuring uniform aggregate shape and reasonable gradation, meeting the stringent standards for construction aggregates. A dual-vibrating screen grading system can flexibly produce various specifications of finished materials, adapting to the needs of local infrastructure construction such as housing and road building.
The successful implementation of this project not only achieves large-scale, standardized processing of granite resources, providing a stable and reliable supply of high-quality building materials to the region, but also promotes the coordinated development of local resource development and ecological protection through advanced environmentally friendly processes and efficient production models, contributing to regional economic development.
