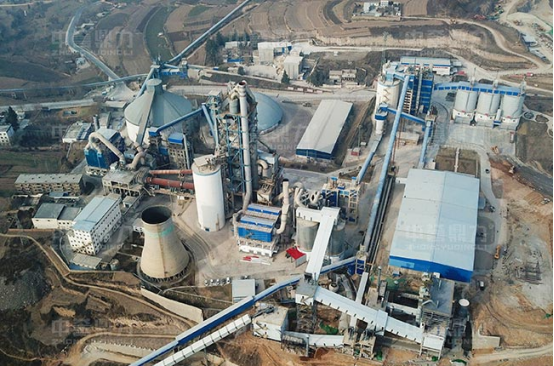

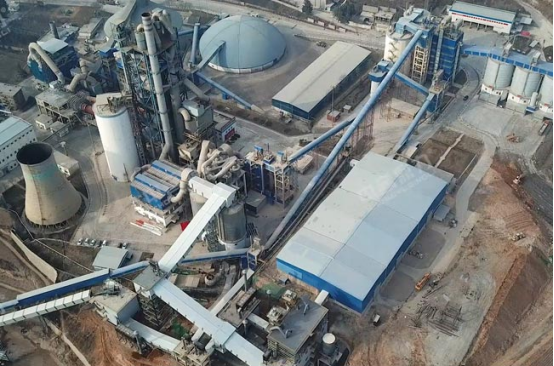

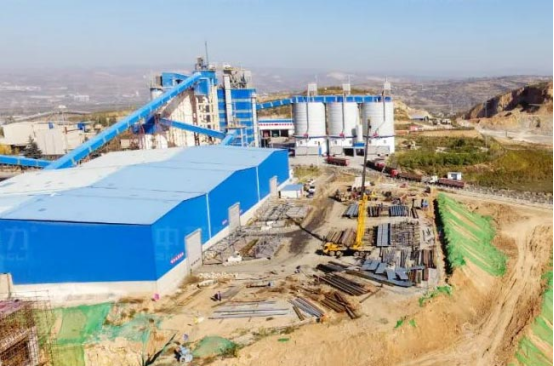

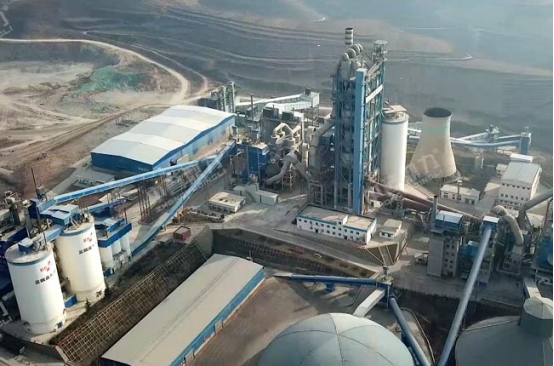

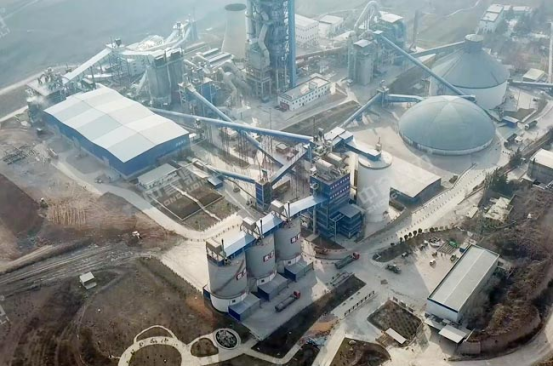

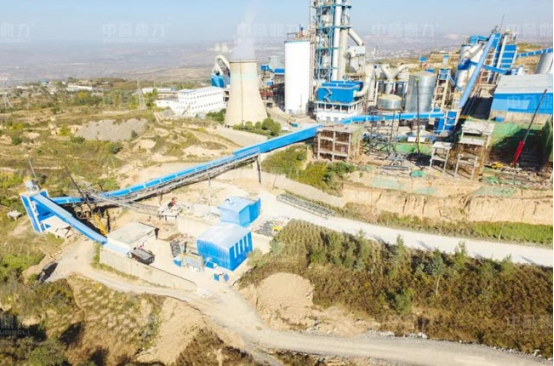

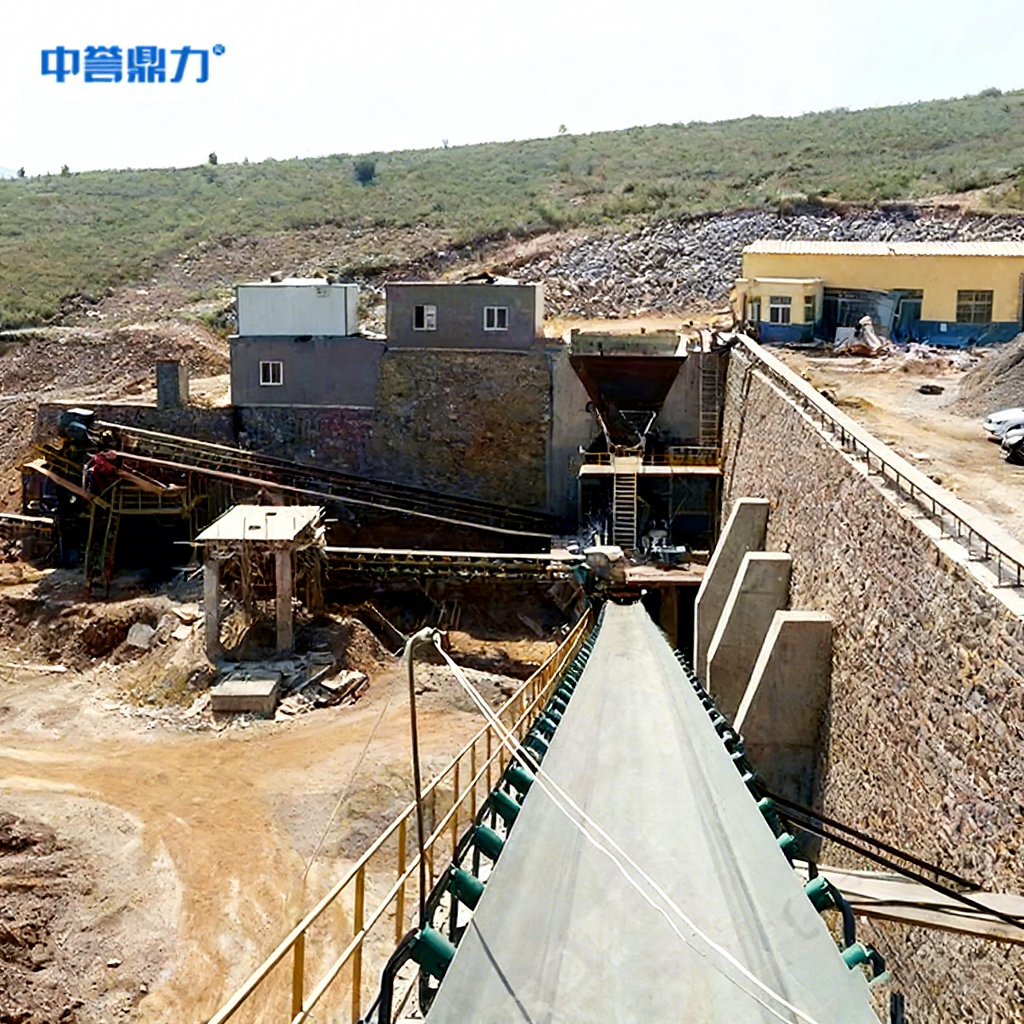

The project is divided into two phases. Phase I has a production capacity of 700 tons per hour and uses DLPC1220 shaping crusher, DL2YKZ3680 and DL3YKZ3080 vibrating screens. Phase II has a production capacity of 1,000 tons per hour and adopts EPC general contracting, with a complete set of mining equipment and intelligent mining management system.
Processed Material: Limestone
Output: 1000 tons per hour
Project Requirements: Soil and stone powder, 0-10mm, 10-20mm, and 20-31.5mm grade materials
EPC general contracting: covering the entire process of sand and gravel production line planning and design, equipment supply, construction, installation and commissioning, intelligent production management and after-sales service.
Intelligent management: Equipped with an intelligent management system for mines, it realizes the automation, digitalization and remote control of the production line, and is easy to operate.
Advantages of finished products: diverse aggregate specifications, low content of needle-like and flaky particles, and the output particle shape can be adjusted as needed.
Phase 1: 700 Tons Per Hour Sand and Gravel Production Line
| Equipment Name | Model | Specification |
| Shaping Crusher | DLPC1220 | (250kw-4)*2 |
| Vibrating Screen | DL2YKZ3680 | 90kw-6 |
| Vibrating Screen | DL3YKZ3080 | 100-500t/h, 75kw-6 |
| ... | ... | ... |
| Equipment Name | Model | Specification |
| Heavy Hammer Impact Crusher | DLPCZ1620 | 315kw*2 |
| Shaping Crusher | DL1220 | 500-700t/h, (250kw-4)*2 |
| Vibrating Screen | DL2YKZ3080 | 100-600t/h, 45kw-6 |
| Vibrating Screen | DL3YKZ3070 | 100-500t/h, 75kw-6 |
| Pulse Jet Bag Filter | DLQMC | - |
| Belt Conveyor | - | - |
| ... | ... | ... |
Bluestone is a widely distributed rock. It is a type of sedimentary rock and resistant to weathering.
Multi-Voltage Engine Turnkey Solution for Limestone Etc. 1.5-Year Warranty
Conact Us
The flow includes coarse crushing (jaw crusher), medium & fine crushing (impact crusher), sand making (impact sand making machine), screening (vibrating screen), and sand washing (wheel bucket sand washer).
A jaw crusher is used for coarse crushing, while an impact crusher handles medium and fine crushing, ensuring high-quality output with low energy consumption.
Stones are processed in an impact sand making machine using “stone-on-stone” and “stone-on-iron” principles, achieving high sand production and environmental friendliness.
The wheel bucket sand washer cleans, classifies, and removes impurities from the sand, with low power consumption and high dehydration efficiency.
It depends on the machine you need. RTS machines will be shipped within 7 days and custom machines will be shipped within 30-90 days depending on the machine specifications you need.
Yes. Please feel free to contact us.
