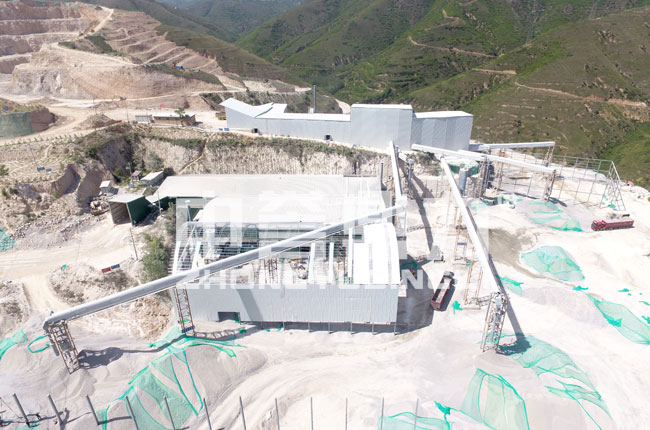

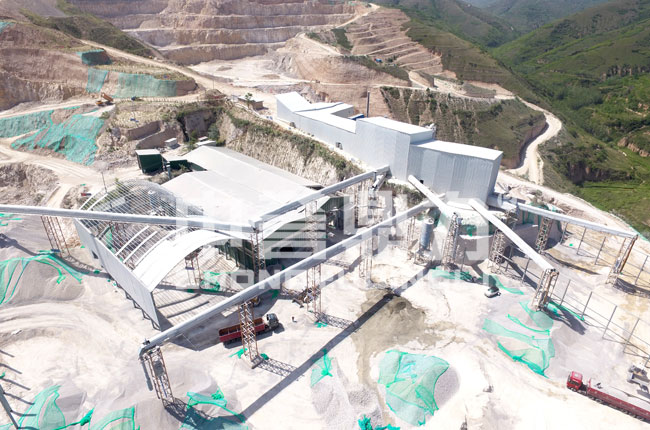

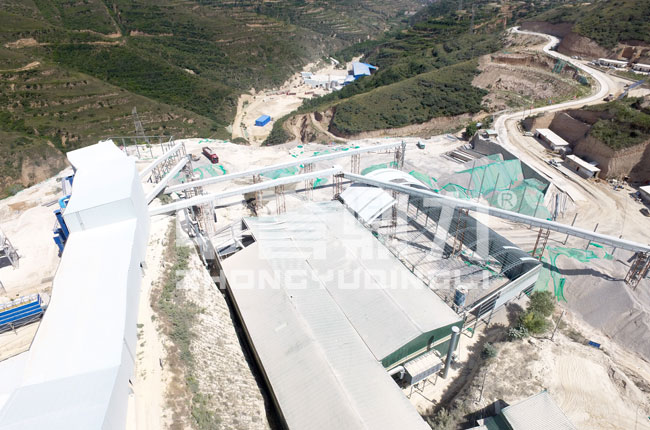

An aggregate production line with a capacity of 600 tons per hour, using a hammer crusher as the main crushing equipment, for producing building material raw materials and calcium product raw materials.
Processed material: quicklime
Output: 600 tons per hour
Project requirements: Raw materials for building materials, raw materials for calcium products
This 600-ton-per-hour aggregate production line is an integrated design that combines feeding, crushing, screening, storage and environmental protection functions. It uses a hammer crusher as the main equipment, has a short process and can crush raw stone materials ≤650mm, which can save 30% of the cost compared with other solutions.
| Equipment Name | Model | Quantity | Output per Hour |
| Feeder | DLZGC1550 | 1 unit | 400-900 tons |
| Heavy Hammer Crusher | DLPCZ1615 | 1 unit | 400-800 tons |
| Shaping Crusher | DLPC1213 | 1 unit | 300-350 tons |
| Vibrating Screen | DL3YKZ3070 | 2 units | 100-500 tons |
| Vibrating Screen | DL4YKZ3070 | 2 units | 400-500 tons |
| Conveyor | - | - | - |
Bluestone is a widely distributed rock. It is a type of sedimentary rock and resistant to weathering.
Multi-Voltage Engine Turnkey Solution for Limestone Etc. 1.5-Year Warranty
Conact Us
The flow includes coarse crushing (jaw crusher), medium & fine crushing (impact crusher), sand making (impact sand making machine), screening (vibrating screen), and sand washing (wheel bucket sand washer).
A jaw crusher is used for coarse crushing, while an impact crusher handles medium and fine crushing, ensuring high-quality output with low energy consumption.
Stones are processed in an impact sand making machine using “stone-on-stone” and “stone-on-iron” principles, achieving high sand production and environmental friendliness.
The wheel bucket sand washer cleans, classifies, and removes impurities from the sand, with low power consumption and high dehydration efficiency.
It depends on the machine you need. RTS machines will be shipped within 7 days and custom machines will be shipped within 30-90 days depending on the machine specifications you need.
Yes. Please feel free to contact us.
